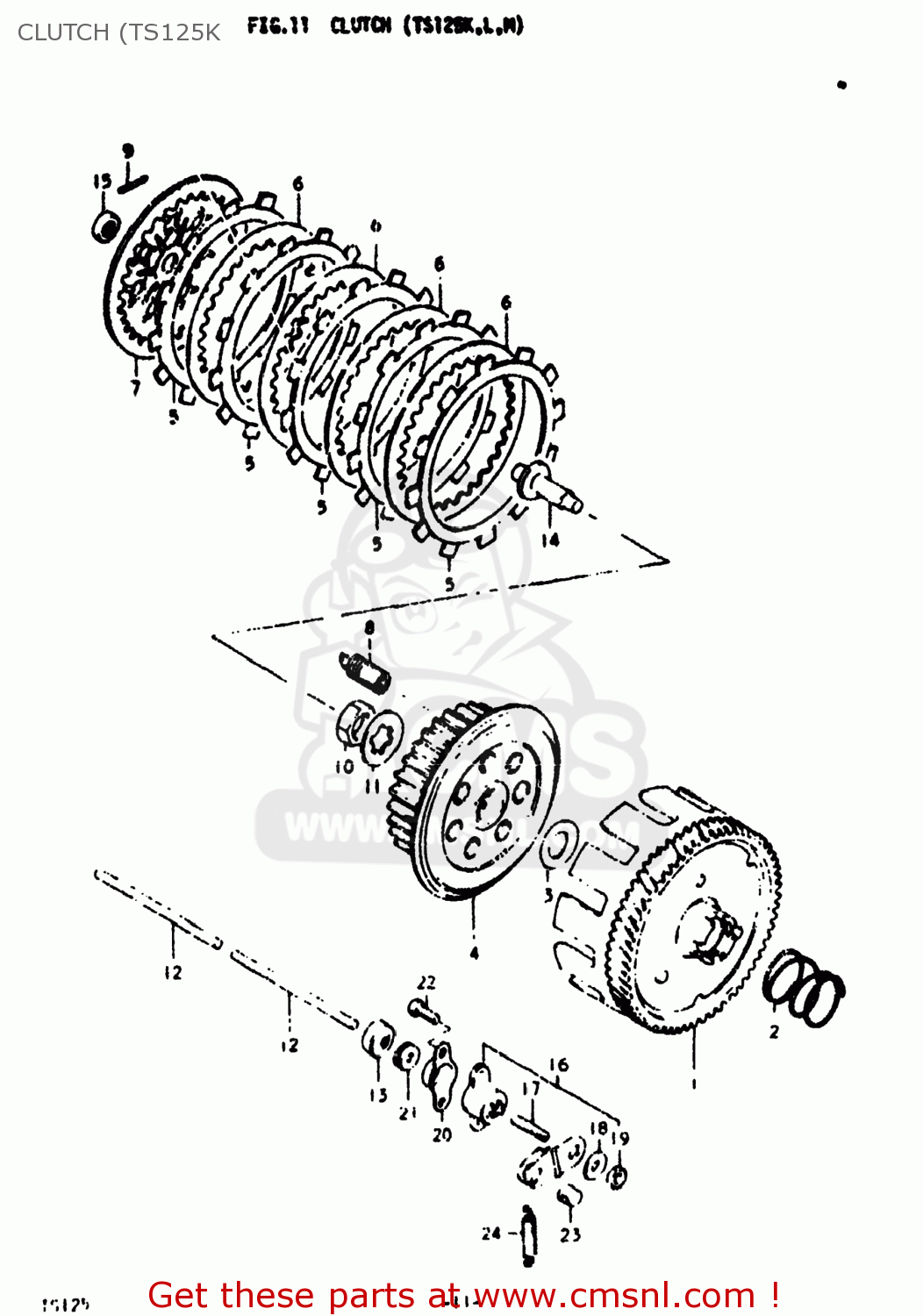

CLUTCH (TS125K

ref

pièce #

description

quantité

1

2120028000
ref: 1
21200-28002

GEAR ASSEMBLY,PRIMARY DRIVE

€ 187.00

2

0944032001
ref: 2

SPRING

€ 2.00

3

0821117282
ref: 3

WASHER

€ 2.50

4

2141028000
ref: 4

HUB,CLUTCH SLEEVE

€ 64.50

5-1

2144110000
ref: 5-1
21441-13A01

PLATE,CLUTCH DRIVE

€ 8.00

5-2

2144128300
ref: 5-2
21441-13A01

PLATE,CLUTCH DRIVE

€ 8.00

6

2145128000
ref: 6
21451-19A00

PLATE,CLUTCH DRIVEN (NAS)

€ 5.50

7

2146028000
ref: 7

PLATE,CLUTCH PRESSURE

€ 23.50

8

0944312015
ref: 8

SPRING

€ 3.00

9

0926102001
ref: 9

PIN(2.5X19.8)

€ 1.50

10

0914016001
ref: 10

NUT

€ 4.50

11

0916717002
ref: 11

WASHER,LOCK

€ 1.50

12

2311128000
ref: 12
23111-34C00

ROD,CLUTCH PUSH

€ 14.50

13

0928506006
ref: 13
09285-06019

OIL SEAL

€ 12.50

14

2312114000
ref: 14

ROD,CLUTCH RELEASE

€ 12.50

15

0928410002
ref: 15

SEAL,OIL (10X17X5)

€ 3.50

16

2320028001
ref: 16

SCREW ASSY,CLUTCH RELEASE

€ 42.00

17

0913406001
ref: 17
09134-06010

SCREW

€ 2.50

18

0916006019
ref: 18

WASHER(6.5X16X1.2)

€ 1.50

19

0831131068
ref: 19
08310-00067

NUT

€ 1.50

20

2324123000
ref: 20

COVER,CLUTCH RELEASE SCREW

€ 12.00

21

0928105001
ref: 21

SEAL,DUST(5.3X13X5)

€ 2.50

22

0211205168
ref: 22
02112-05167

SCREW

€ 1.50

23

2322207000
ref: 23

PIECE,RELEASE ARM END

€ 5.00

24

0944308001
ref: 24

SPRING

€ 2.00

toutes les assemblages
