CRANKSHAFT (MODEL K)

RM125 1991 (M) USA (E03)

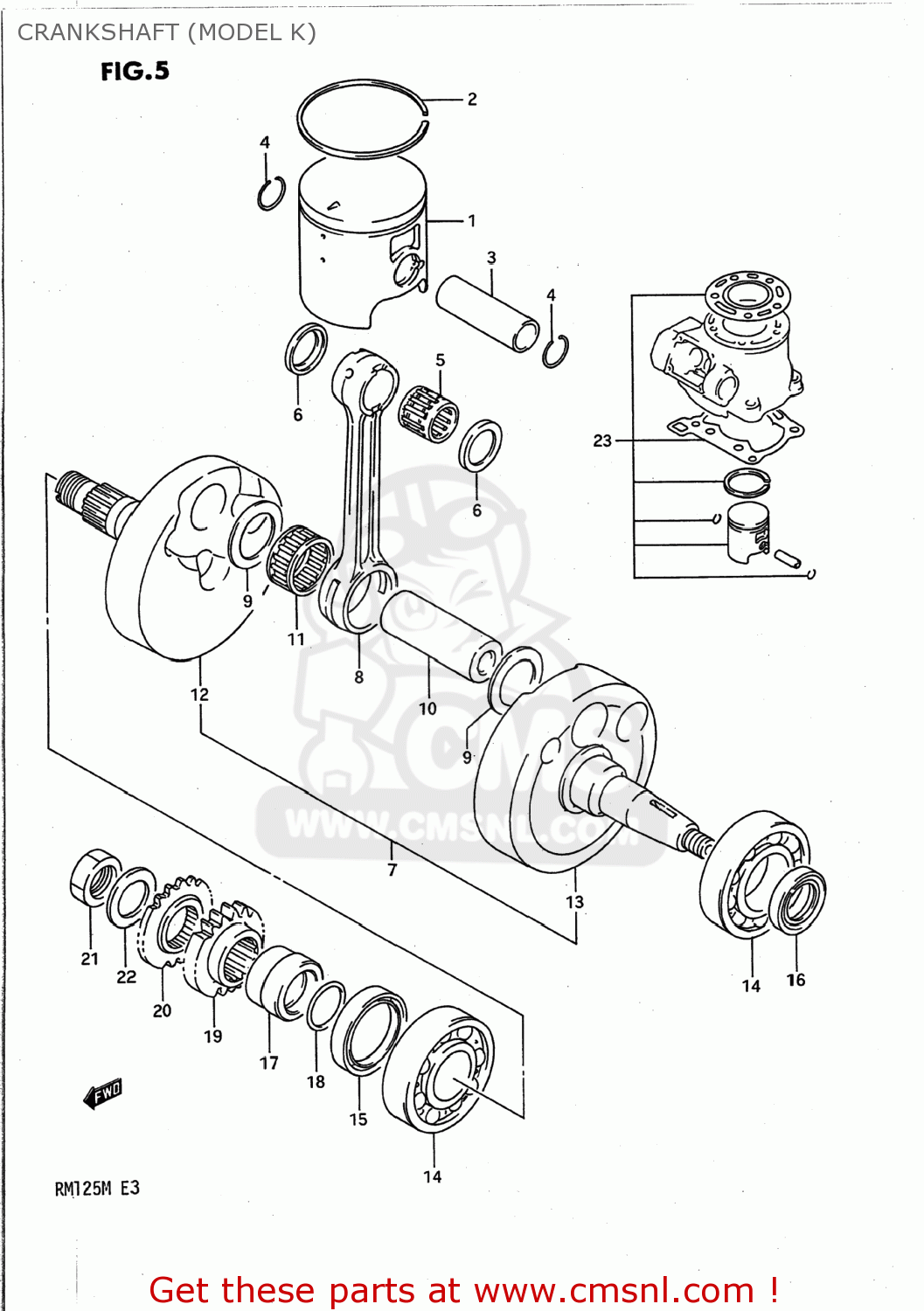

Crankshaft (model k) schéma RM125 1991 (M) USA (E03)

CRANKSHAFT (MODEL K) RM125 1991 (M) USA (E03)
CRANKSHAFT (MODEL K) RM125 1991 (M) USA (E03)
les prix sont en EUR
ref
pièce #
description
quantité
1-1
1211027C010F0
ref: 1-1
12110-27C06-0F0
PISTON
1211027C010F0
€ 79.50
1-2
1211027C01025
ref: 1-2
12103-27810-025
PISTON
1211027C01025
€ 87.00
1-3
1211027C01050
ref: 1-3
12103-27810-050
PISTON
€ 88.50
2-1
1214101B10
ref: 2-1
12141-01B11
RING,PISTON
1214101B10
€ 35.50
2-2
1214101B10025
ref: 2-2
12141-01B11-025
RING,PISTON (OS:0.25)
1214101B10025
€ 13.00
2-3
1214101B10050
ref: 2-3
12141-01B11-050
RING,PISTON (OS:0.5)
1214101B10050
€ 17.50
3
1215101B41
ref: 3
PIN,PISTON
1215101B41
€ 15.00
4
0938115001
ref: 4
CIRCLIP
0938115001
€ 1.50
5
0926315040
ref: 5
BEARING(15X19X20)
0926315040
€ 16.00
6
0916915004
ref: 6
WASHER
0916915004
€ 7.50
7
1220027C00
ref: 7
12200-27C01
CRANKSHAFT ASSEMBLY
€ 386.00
8
1216127C000D0
ref: 8
ROD,CONNECTING
1216127C000D0
€ 50.50
9
0916022043
ref: 9
09160-22070
WASHER
0916022043
€ 9.00
10
1221127C00
ref: 10
PIN,CRANK
1221127C00
€ 28.50
11
09263220470C0
ref: 11
09263-22060
ROLLER BEARING (22X28X1
09263220470C0
€ 63.50
12
1222127C00
ref: 12
CRANKSHAFT,RIGHT
€ 107.50
13
1226127C00
ref: 13
12261-27C02
CRANKSHAFT,LEFT
1226127C00
€ 136.50
14
0926222020
ref: 14
09262-22025
BEARING
€ 51.00
15
0928330058
ref: 15
09283-30061
OIL SEAL
0928330058
€ 14.00
16
0928318006
ref: 16
SEAL,OIL(18X30X6)
0928318006
€ 7.00
17
1235901B00
ref: 17
12359-27C30
SPACER,PRIMARY DRIVE GEAR
1235901B00
€ 9.00
18
0928020004
ref: 18
O RING(D:2.4,ID:19.8)
0928020004
€ 1.50
19
2111101B41
ref: 19
GEAR,PRIMARY DRIVEN
2111101B41
€ 28.00
20
1267401B40
ref: 20
GEAR, GOVERNOR DRIVE (NT:19)
1267401B40
€ 36.00
21
0914016019
ref: 21
NUT
0914016019
€ 3.50
22
0916416002
ref: 22
WASHER
0916416002
€ 3.00
23-1
1210027840
ref: 23-1
12100-27846
PISTON SET
€ 61.50
23-2
1210027841
ref: 23-2
12100-27846
PISTON SET
€ 61.50
23-3
1210027840025
ref: 23-3
12100-27846-025
PISTON SET (OS:0.25)
€ 64.50
23-4
1210027841025
ref: 23-4
12100-27846-025
PISTON SET (OS:0.25)
€ 64.50
23-4
1210027841025
ref: 23-4
12100-27846-025
PISTON SET (OS:0.25)
€ 64.50
23-4
1210027841025
ref: 23-4
12100-27846-025
PISTON SET (OS:0.25)
€ 64.50
