CARBURETOR (MODEL T/V)

RF600RU 1994 (R) (E22)

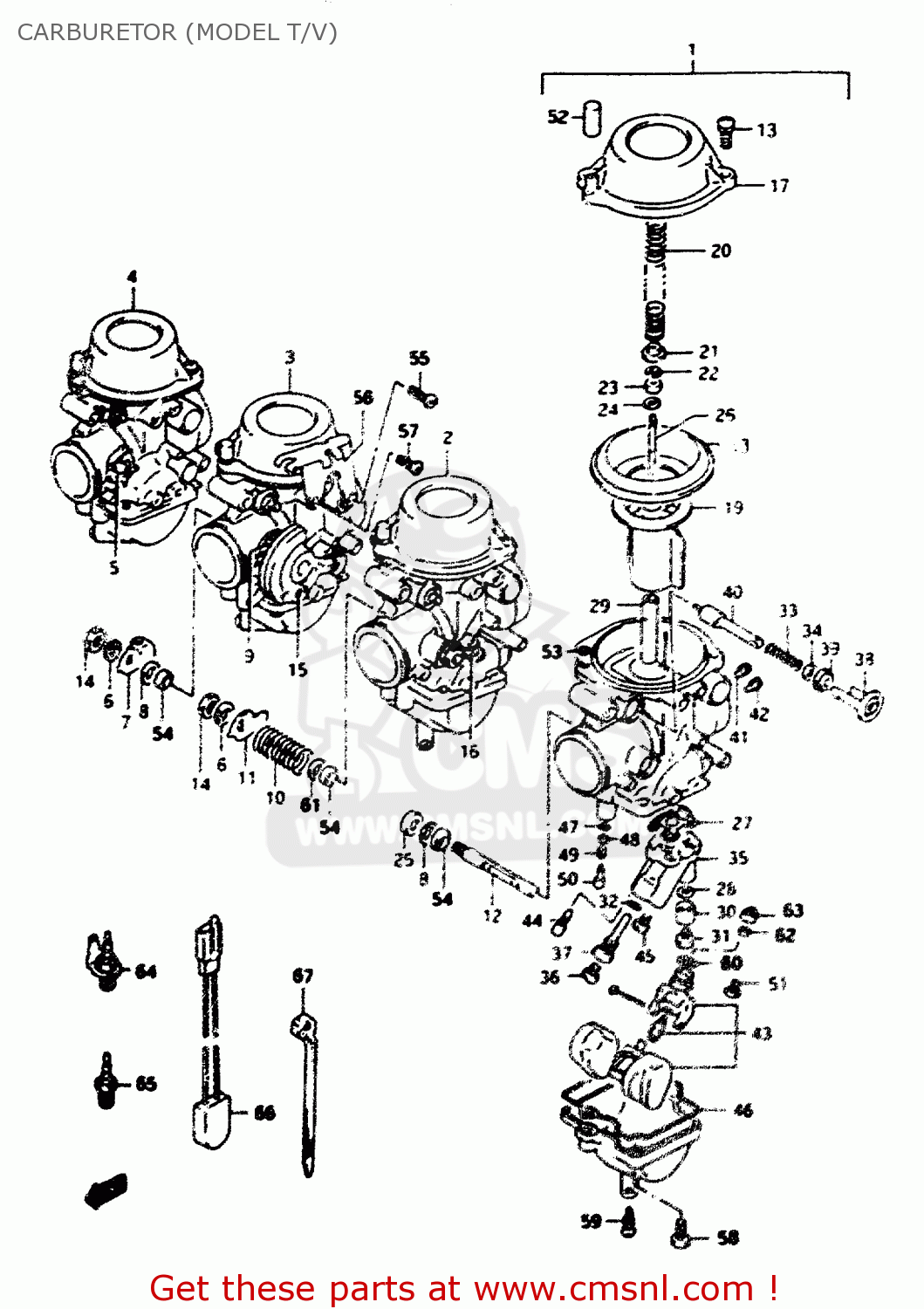

Carburetor (model t/v) schéma RF600RU 1994 (R) (E22)

CARBURETOR (MODEL T/V) RF600RU 1994 (R) (E22)
CARBURETOR (MODEL T/V) RF600RU 1994 (R) (E22)
les prix sont en EUR
ref
pièce #
description
quantité
1-1
1320121EF0
ref: 1-1
CARBURETOR ASYS,LH
€ 456.00
1-2
1320121EJ0
ref: 1-2
E24
CARBURETOR ASSY,LH
€ 0.00
1-3
1320121EN0
ref: 1-3
E37
CARBURETOR ASSY,LH
€ 0.00
1-4
1320121EJ0
ref: 1-4
E22:RF600RT/RV
CARBURETOR ASSY,LH
€ 0.00
1-5
1320121EK0
ref: 1-5
E22:RF600RUT/RUV
CARBURETOR ASSY,LH
€ 0.00
2-1
1320221EF0
ref: 2-1
CARBURETOR ASSY,ML
€ 561.50
2-2
1320221EJ0
ref: 2-2
E24
CARBURETOR ASSY,ML
€ 561.50
2-3
1320221EN0
ref: 2-3
E37
CARBURETOR ASSY,ML
€ 0.00
2-4
1320221EJ0
ref: 2-4
E22:RF600RT/RV
CARBURETOR ASSY,ML
€ 561.50
2-5
1320221EK0
ref: 2-5
E22:RF600RUT/RUV
CARBURETOR ASSY,ML
€ 0.00
3-1
1320321EF0
ref: 3-1
CARBURETOR ASSY,MR
€ 561.50
3-2
1320321EJ0
ref: 3-2
E24
CARBURETOR ASYS,MR
€ 561.50
3-3
1320321EN0
ref: 3-3
E37
CARBURETOR ASSY,MR
€ 0.00
3-4
1320321EJ0
ref: 3-4
E22:RF600RT/RV
CARBURETOR ASYS,MR
€ 561.50
3-5
1320321EK0
ref: 3-5
E22:RF600RUT/RUV
CARBURETOR ASSY,MR
€ 0.00
4-1
1320421EF0
ref: 4-1
CARBURETOR ASSY,RH
€ 561.50
4-2
1320421EJ0
ref: 4-2
E24
CARBURETOR ASSY,RH
€ 561.50
4-3
1320421EN0
ref: 4-3
E37
CARBURETOR ASSY,RH
€ 0.00
4-4
1320421EJ0
ref: 4-4
E22:RF600RT/RV
CARBURETOR ASSY,RH
€ 561.50
4-5
1320421EK0
ref: 4-5
E22:RF600RUT/RUV
CARBURETOR ASSY,RH
€ 0.00
5
1355021E30
ref: 5
RH
SHAFT,THROTTLE
€ 0.00
6
0832101087
ref: 6
ML,MR
WASHER,LOCK
0832101087
€ 1.50
7
1355321E10
ref: 7
MR
LEVER,THROTTLE
€ 0.00
8
1355747070
ref: 8
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
9
1357321E10
ref: 9
MR
SPRING
€ 0.00
10
1357321E00
ref: 10
ML
SPRING
€ 0.00
11
1355021E10
ref: 11
ML
SHAFT,THROTTLE
€ 0.00
12
1355021E00
ref: 12
LH
SHAFT,THROTTLE
1355021E00
€ 37.00
13
0211275163
ref: 13
SCREW
0211275163
€ 2.00
14
0831000087
ref: 14
ML,MR
NUT
0831000087
€ 1.50
15
1355021E20
ref: 15
MR
SHAFT,THROTTLE
€ 72.00
16
1355321E00
ref: 16
ML
LEVER,THROTTLE
€ 0.00
17
1350217E20
ref: 17
COVER,DIAPHRAGM
1350217E20
€ 57.00
18
1350717C01
ref: 18
DIAPHRAGM
1350717C01
€ 21.50
19
1350118E00
ref: 19
VALVE,PISTON
1350118E00
€ 65.50
20
1341712D00
ref: 20
SPRING
1341712D00
€ 6.50
21
1338242A00
ref: 21
RING
1338242A00
€ 3.50
22
1339440D20
ref: 22
E RING
1339440D20
€ 4.00
23
1338747010
ref: 23
RING
1338747010
€ 6.00
24
1338244030
ref: 24
WASHER
1338244030
€ 3.00
25
1357432C00
ref: 25
LH,RH
RING
€ 0.00
26-1
1338340C40
ref: 26-1
NEEDLE,JET(5D44)
1338340C40
€ 14.50
26-2
1338340C40
ref: 26-2
E22:RF600RUT/RUV
NEEDLE,JET(5D44)
1338340C40
€ 14.50
27
1325133C00
ref: 27
O RING
1325133C00
€ 9.00
28
1333205A10
ref: 28
GASKET (NAS)
1333205A10
€ 3.00
29-1
0949400810
ref: 29-1
JET,NEEDLE(O-9)
0949400810
€ 28.50
29-2
0949400818
ref: 29-2
E22:RF600RUT/RUV
JET,NEEDLE (0-8)
€ 28.00
30
1333121E40
ref: 30
RING
1333121E40
€ 4.50
31
1360206C20
ref: 31
SCREW
€ 5.00
32
1329433C00
ref: 32
O RING
1329433C00
€ 4.50
33
1341726D00
ref: 33
SPRING
1341726D00
€ 5.00
34
1343247090
ref: 34
WASHER
1343247090
€ 2.50
35
1322021E00
ref: 35
JET BLOCK ASSEMBLY
1322021E00
€ 38.50
36-1
0949122014
ref: 36-1
JET,MAIN(112.5)
0949122014
€ 16.00
36-2
0949124026
ref: 36-2
E22:RF600RUT/RUV
JET,MAIN(120)
0949124026
€ 14.50
37
1338521E00
ref: 37
HOLDER,JET
1338521E00
€ 23.50
38
1341817C10
ref: 38
HOLDER,GUIDE
1341817C10
€ 12.50
39
1341817C00
ref: 39
CAP,STARTER
1341817C00
€ 4.50
40
1341105320
ref: 40
PLUNGER ASSY
1341105320
€ 16.50
41-1
0949360004
ref: 41-1
LH,RH
JET,AIR(0.6)
0949360004
€ 10.50
41-2
0949320007
ref: 41-2
ML,MR
JET,AIR(1.0)
0949320007
€ 9.50
41-3
0949370009
ref: 41-3
E22:RF600RUT/RUV
JET,MAIN AIR(0.7)
0949370009
€ 13.50
42-1
0949327002
ref: 42-1
JET,AIR(1.35)
0949327002
€ 14.50
42-2
0949329002
ref: 42-2
E22:RF600RUT/RUV
JET,AIR
0949329002
€ 9.50
43-1
1325021E00
ref: 43-1
FLOAT/NEEDLE VALVE ASSEMBLY
€ 91.00
43-2
1325031E00
ref: 43-2
E37
FLOAT/NEEDLE VALVE ASSY
1325031E00
€ 91.00
44
0949212008
ref: 44
JET,PILOT(12.5)
0949212008
€ 11.50
45
0949147001
ref: 45
JET,STARTER(47.5)
0949147001
€ 15.50
46
1325833C00
ref: 46
SEAL
1325833C00
€ 13.00
47
1329529900
ref: 47
O RING,PILOT AIR SCREW
1329529900
€ 3.50
48
1329129900
ref: 48
WASHER
1329129900
€ 1.50
49
1326847070
ref: 49
SPRING
1326847070
€ 4.00
50-1
1327947070
ref: 50-1
SCREW,PILOT
1327947070
€ 10.00
50-2
1327947070
ref: 50-2
E22:RF600RT/RV E24
SCREW,PILOT
1327947070
€ 10.00
50-3
1327947070
ref: 50-3
E22:RF600RUT/RUV
SCREW,PILOT
1327947070
€ 10.00
51
1360205A10
ref: 51
SCREW
1360205A10
€ 3.50
52
1350817C00
ref: 52
CAP
1350817C00
€ 4.00
53
1325106C10
ref: 53
O RING
1325106C10
€ 5.00
54
1365151010
ref: 54
LH,RH:1,ML,MR:2
SEAL
1365151010
€ 3.50
55
1360105148
ref: 55
MR
SCREW(5X14)
1360105148
€ 3.50
56
1362731E00
ref: 56
MR
BRACKET
€ 10.50
57
0212205103
ref: 57
MR
SCREW
0212205103
€ 1.00
58
0211205127
ref: 58
SCREW
0211205127
€ 1.50
59
1324713A00
ref: 59
SCREW,DRAIN
1324713A00
€ 4.50
60
1327444080
ref: 60
O RING
€ 0.00
61
1355707D00
ref: 61
ML
RING
€ 5.00
62
1333106C20
ref: 62
RING
1333106C20
€ 5.00
63
1337684110
ref: 63
FILTER
€ 7.00
64
1365025E00
ref: 64
HEATER ASSEMBLY,CARBURETOR
1365025E00
€ 28.50
65
1365125E00
ref: 65
HEATER,CARBURETOR (15W)
€ 28.50
66
1365525E00
ref: 66
THERMO SWITCH,CARB HEATER
1365525E00
€ 28.00
67
0940714403
ref: 67
CLAMP(L:125)
0940714403
€ 2.50
