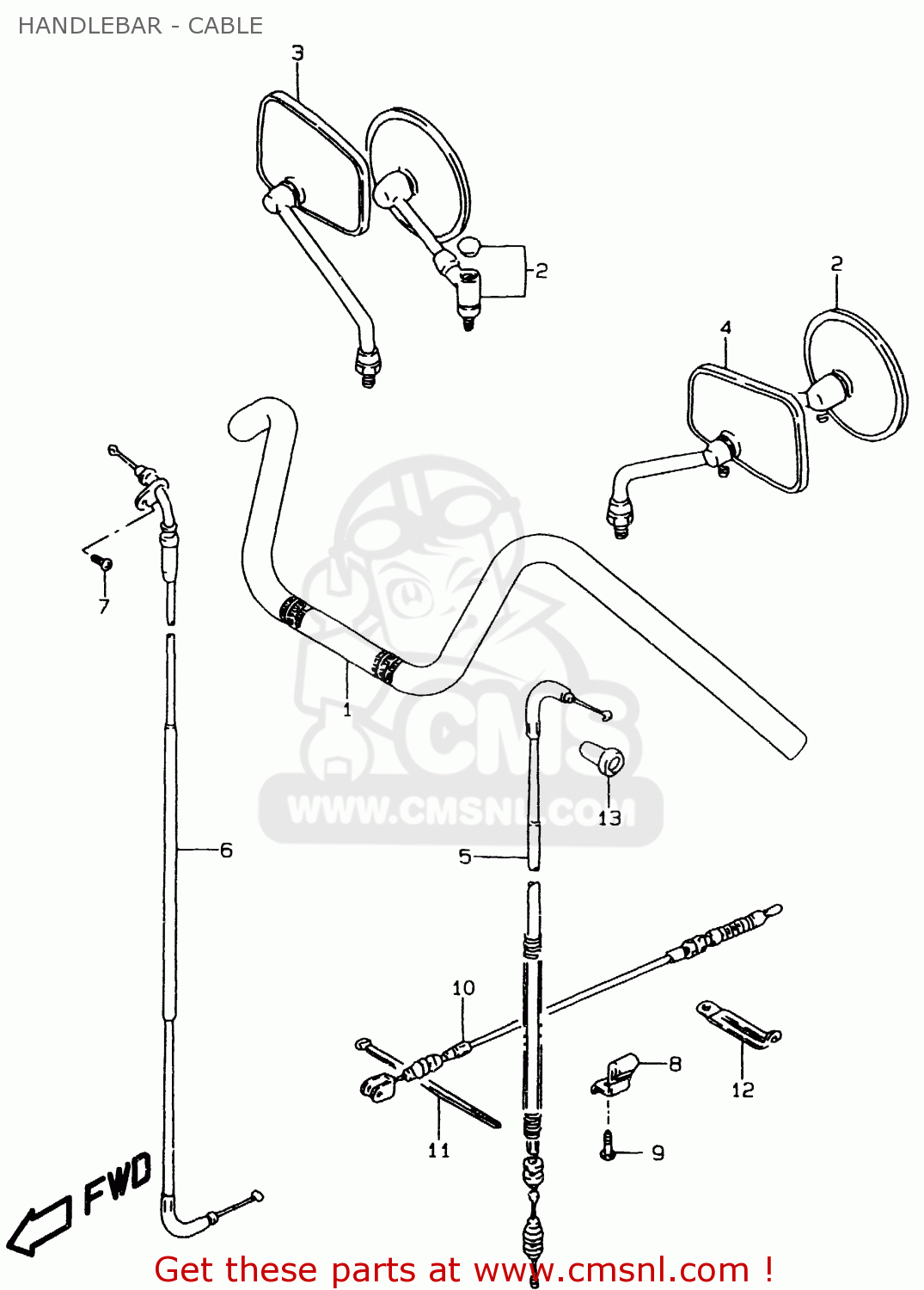

HANDLEBAR - CABLE - LS650P 1999 (X) (E02 E04 E17 E18 E22 E25 E53 / P37

ref

pièce #

description

quantité

1

5611024B42
ref: 1

HANDLEBAR

€ 205.00

2

5650038A60
ref: 2

MIRROR ASSY,RH

€ 296.00

3

5650024B00
ref: 3
MODEL T E18, E25

MIRROR ASSEMBLY,REAR VIEW

€ 51.00

3

5650024B01
ref: 3
MODEL V E18, E25

MIRROR ASSEMBLY,REAR VIEW

€ 69.00

3

5650024B20
ref: 3
MODEL W/X E18, E25

MIRROR ASSY,RR VIEW,R

€ 51.00

4

5660024B00
ref: 4
MODEL T E18, E25

MIRROR ASSEMBLY,REAR VIEW

€ 189.00

4

5660024B01
ref: 4
MODEL V E18, E25

MIRROR ASSY,RR VIEW,L

€ 70.00

4

5660024B20
ref: 4
MODEL W/X E18, E25

MIRROR ASSY,RR VIEW,L

€ 189.00

5

5820024B12
ref: 5

CABLE ASSY,CLUTCH

€ 47.50

6

5830024B20
ref: 6

CABLE ASSY,THROTTLE

€ 43.50

7

0214205087
ref: 7

SCREW

€ 2.00

8

5862024B00
ref: 8

CLAMP,STOP LAMP SWITCH CABLE

€ 4.50

9

0157006163
ref: 9

BOLT

€ 2.50

10

5883024B00
ref: 10

CABLE COMP,STOP LAMP SWITCH

€ 22.50

11

0940408418
ref: 11
MODEL T/V

CLAMP(L:65)

€ 3.50

11

0940408206
ref: 11
MODEL W/X

CLAMP(L:65 T:0.8)

€ 3.50

12

0940714407
ref: 12

CLAMP(L:145)

€ 3.00

13

5827331000
ref: 13

BOOT,CLUTCH CABLE

€ 2.50

HANDLEBAR - CABLE

toutes les assemblages
