FRAME COVER (MODEL V)

GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

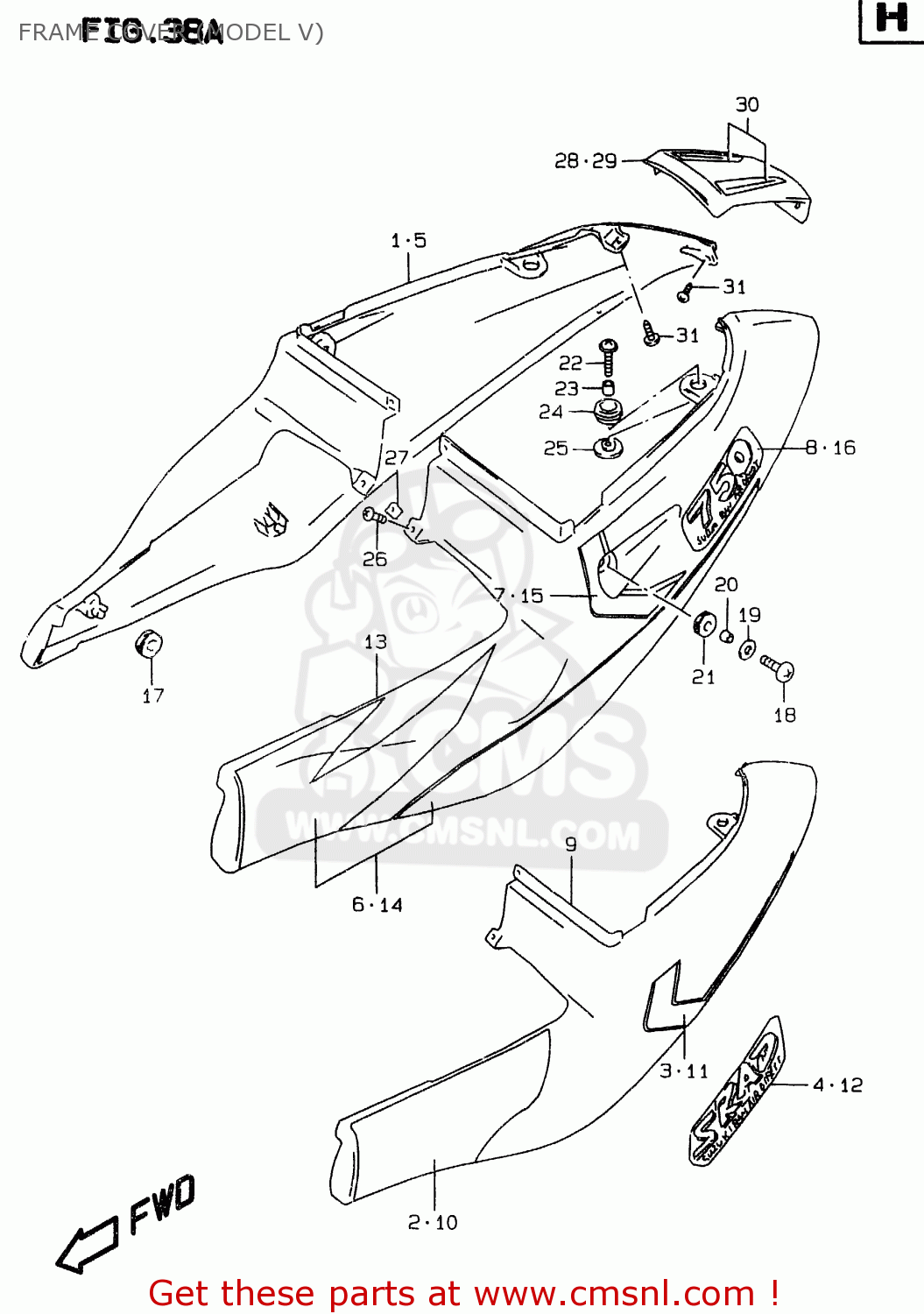

Frame cover (model v) schéma GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37

FRAME COVER (MODEL V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
FRAME COVER (MODEL V) GSXR750 1997 (V) (E02 E04 E18 E22 E24 E25 E34 E39) / P37
les prix sont en EUR
ref
pièce #
description
quantité
1-1
4711033E40Y0W
ref: 1-1
FOR G7U
COVER,FRAME,R(ORANGE)
4711033E40Y0W
€ 234.50
1-2
4711033E40Y2D
ref: 1-2
FOR G7V
COVER,FRAME,R(SILVER)
4711033E40Y2D
€ 234.50
2-1
6813533E4133J
ref: 2-1
FOR Y0W
TAPE,FRAME COVER,R(BLACK)
€ 21.00
2-2
6813533E4135W
ref: 2-2
FOR Y2D
TAPE,FRAME COVER,R(GRAY)
6813533E4135W
€ 21.00
3-1
6813633E00G8N
ref: 3-1
FOR Y0W
TAPE,FRAME COVER STRIPE,R
6813633E00G8N
€ 34.50
3-2
6813633E00G8P
ref: 3-2
FOR Y2D
TAPE,FRAME COVER STRIPE
6813633E00G8P
€ 32.50
4-1
6813133E30G8R
ref: 4-1
FOR Y0W
EMBLEM,FRAME COVER
6813133E30G8R
€ 17.50
4-2
6813133E30G8S
ref: 4-2
FOR Y2D
EMBLEM,FRAME COVER
6813133E30G8S
€ 17.50
5
4711033E300JW
ref: 5
FOR L99
COVER,FRAME,R(WHITE)
€ 276.00
6
6813033E21F3R
ref: 6
TAPE SET,FRAME COVER,R
€ 89.00
7
6813533E30G9B
ref: 7
TAPE,FRAME COVER,R
6813533E30G9B
€ 22.50
8
6813133E20F3S
ref: 8
EMBLEM,FRAME COVER
6813133E20F3S
€ 16.50
9-1
4721033E40Y0W
ref: 9-1
FOR G7U
COVER,FRAME,L(ORANGE)
4721033E40Y0W
€ 234.50
9-2
4721033E40Y2D
ref: 9-2
FOR G7V
COVER,FRAME,LEFT (SILVER)
4721033E40Y2D
€ 219.00
10-1
6814533E4133J
ref: 10-1
FOR Y0W
TAPE,FRAME COVER,L(BLACK)
6814533E4133J
€ 21.00
10-2
6814533E4135W
ref: 10-2
FOR Y2D
TAPE,FRAME COVER,L(GRAY)
6814533E4135W
€ 20.00
11-1
6814633E00G8N
ref: 11-1
FOR Y0W
TAPE,FRAME COVER STRIPE,L
6814633E00G8N
€ 33.50
11-2
6814633E00G8P
ref: 11-2
FOR Y2D
TAPE,FRAME COVER STRIPE,L
6814633E00G8P
€ 34.50
12-1
6813133E30G8R
ref: 12-1
FOR Y0W
EMBLEM,FRAME COVER
6813133E30G8R
€ 17.50
12-2
6813133E30G8S
ref: 12-2
FOR Y2D
EMBLEM,FRAME COVER
6813133E30G8S
€ 17.50
13
4721033E300JW
ref: 13
FOR L99
COVER,FRAME,L(WHITE)
€ 282.00
14
6814033E21F3R
ref: 14
TAPE SET,FRAME COVER,L
€ 67.00
15
6814533E30G9B
ref: 15
TAPE,FRAME COVER,LEFT
6814533E30G9B
€ 23.00
16
6813133E20F3S
ref: 16
EMBLEM,FRAME COVER
6813133E20F3S
€ 16.50
17
0932008018
ref: 17
CUSHION
0932008018
€ 4.00
18
0913906071
ref: 18
SCREW(6X20)
0913906071
€ 5.00
19
0916006054
ref: 19
WASHER(6.5X22X1.6)
0916006054
€ 1.50
20
0918006258
ref: 20
SPACER(6.5X9X6.7)
0918006258
€ 2.00
21
9443326B00
ref: 21
CUSHION
9443326B00
€ 3.50
22
0913606082
ref: 22
SCREW(6X25)
0913606082
€ 3.00
23
0918006286
ref: 23
SPACER(6.5X10X9.4)
0918006286
€ 2.00
24
4514904A00
ref: 24
CUSHION,TAIL COVER UPR
4514904A00
€ 3.00
25
4532617C00
ref: 25
CUSHION,FRAME COVER LWR
4532617C00
€ 6.50
26
0324115103
ref: 26
SCREW
€ 2.00
27
0914805038
ref: 27
NUT
0914805038
€ 1.50
28-1
4731133E00Y0W
ref: 28-1
FOR G7U
COVER,FRAME CTR
4731133E00Y0W
€ 35.00
28-2
4731133E00Y2D
ref: 28-2
FOR G7V
COVER,FRAME CTR
4731133E00Y2D
€ 35.00
29
4731033E001LX
ref: 29
FOR L99
COVER,FRAME CTR
€ 37.00
30
6816533E00G9B
ref: 30
TAPE SET,FRAME COVER CTR
€ 13.50
31
0354115163
ref: 31
SCREW
0354115163
€ 2.00
