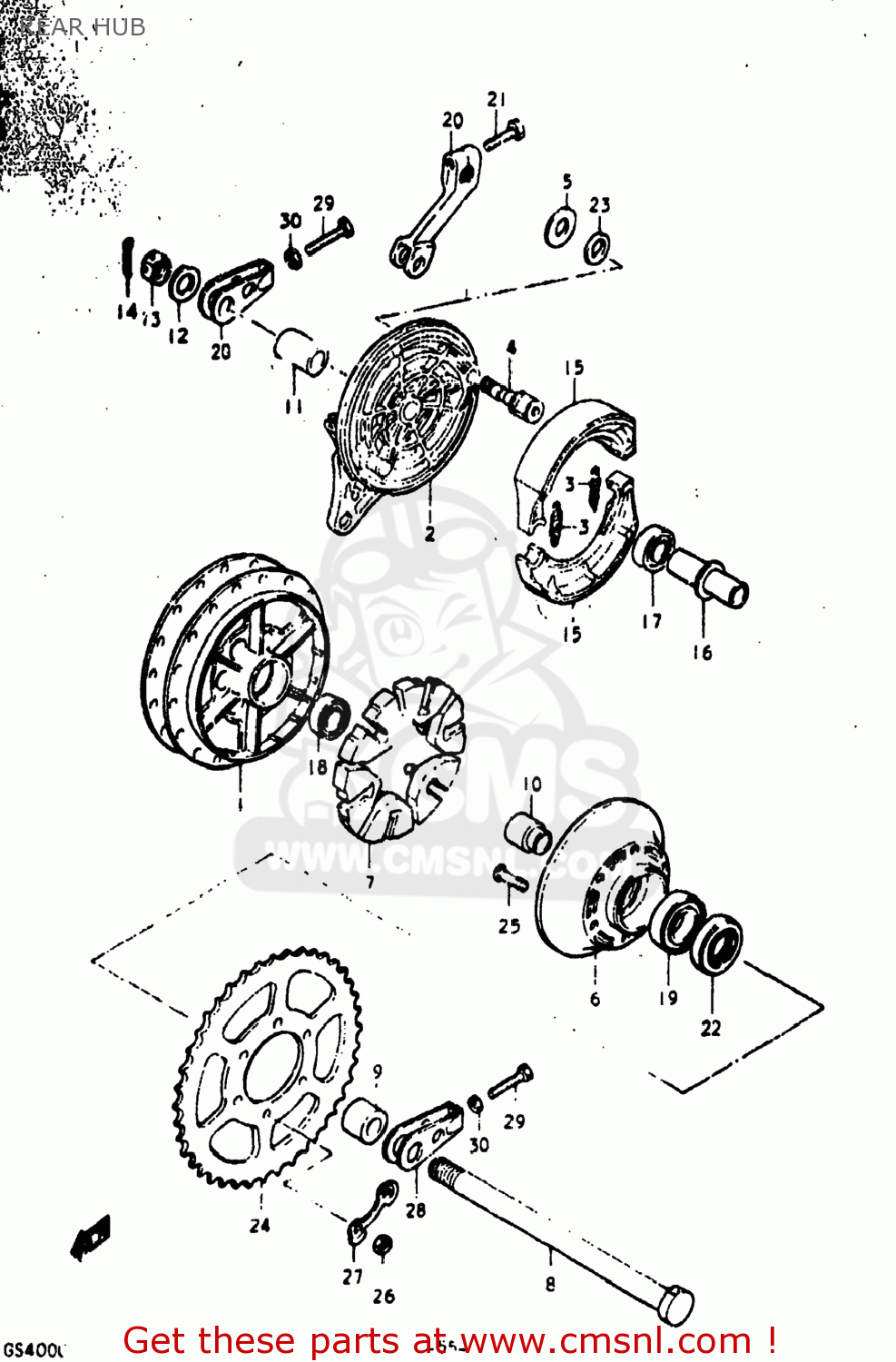

REAR HUB

ref

pièce #

description

quantité

1

6411011001
ref: 1

DRUM,REAR HUB

€ 156.50

2

6421011002
ref: 2

PANEL,REAR HUB

€ 83.50

3

5542030000
ref: 3

SPRING,BRAKE SHOE

€ 3.50

4

5444033001
ref: 4
54440-33002

CAM,FRONT BRAKE

€ 13.00

5

0916015001
ref: 5
09160-15048

WASHER (15X24X1.6)

€ 3.00

6

6461133000
ref: 6

DRUM,REAR SPROCKET MOUNT

€ 87.00

7

6465111001
ref: 7
64651-11002

CUSHION,REAR DRUM

€ 19.50

8

6471133000
ref: 8
64711-3300V

AXLE,REAR

€ 33.50

9

0918017043
ref: 9

SPACER(17.5X28X44.8)

€ 7.00

10

6473333000
ref: 10
64733-3300V

SPACER,REAR HUB BEARING

€ 20.00

11

0918017042
ref: 11

SPACER(17X30.5X22.3)

€ 8.00

12

0832211168
ref: 12
08322-01167

WASHER

€ 2.00

13

0914116001
ref: 13

NUT

€ 5.50

14

0411140408
ref: 14
04111-4040A

PIN, COTTER

€ 2.00

15

6441011002
ref: 15
64400-11870

SHOE SET,BRAKE (MCA)

€ 101.00

16

6473011000
ref: 16

SPACER

€ 21.00

17

0814363030
ref: 17
08143-63037

BALL BEARING

€ 18.50

18

0814362030
ref: 18
08143-62037

BEARING

€ 15.00

19

0811362050
ref: 19
09262-25003

BEARING

€ 16.50

20

6445144000
ref: 20
64451-44001

LEVER,REAR BRAKE CAM

€ 111.00

21

0110706258
ref: 21
01500-06257

BOLT

€ 1.50

22

0928330001
ref: 22
09285-30001

OIL SEAL

€ 19.50

23

0928015001
ref: 23
09280-15003

O-RING,BOSS

€ 1.50

24

6451144000
ref: 24

SPROCKET,RR

€ 59.00

25

0911910002
ref: 25
09105-10001

BOLT

€ 3.50

26

0831012108
ref: 26
08310-00107

NUT

€ 2.00

27

0916910006
ref: 27

WASHER

€ 4.50

28

6141044000
ref: 28
61410-44200

ADJUSTER,CHAIN

€ 31.00

29

0910408006
ref: 29
09104-08034

BOLT

€ 3.00

30

0831012088
ref: 30
08310-00087

NUT

€ 1.50
