CRANKSHAFT

DR350SE 1998 (X)

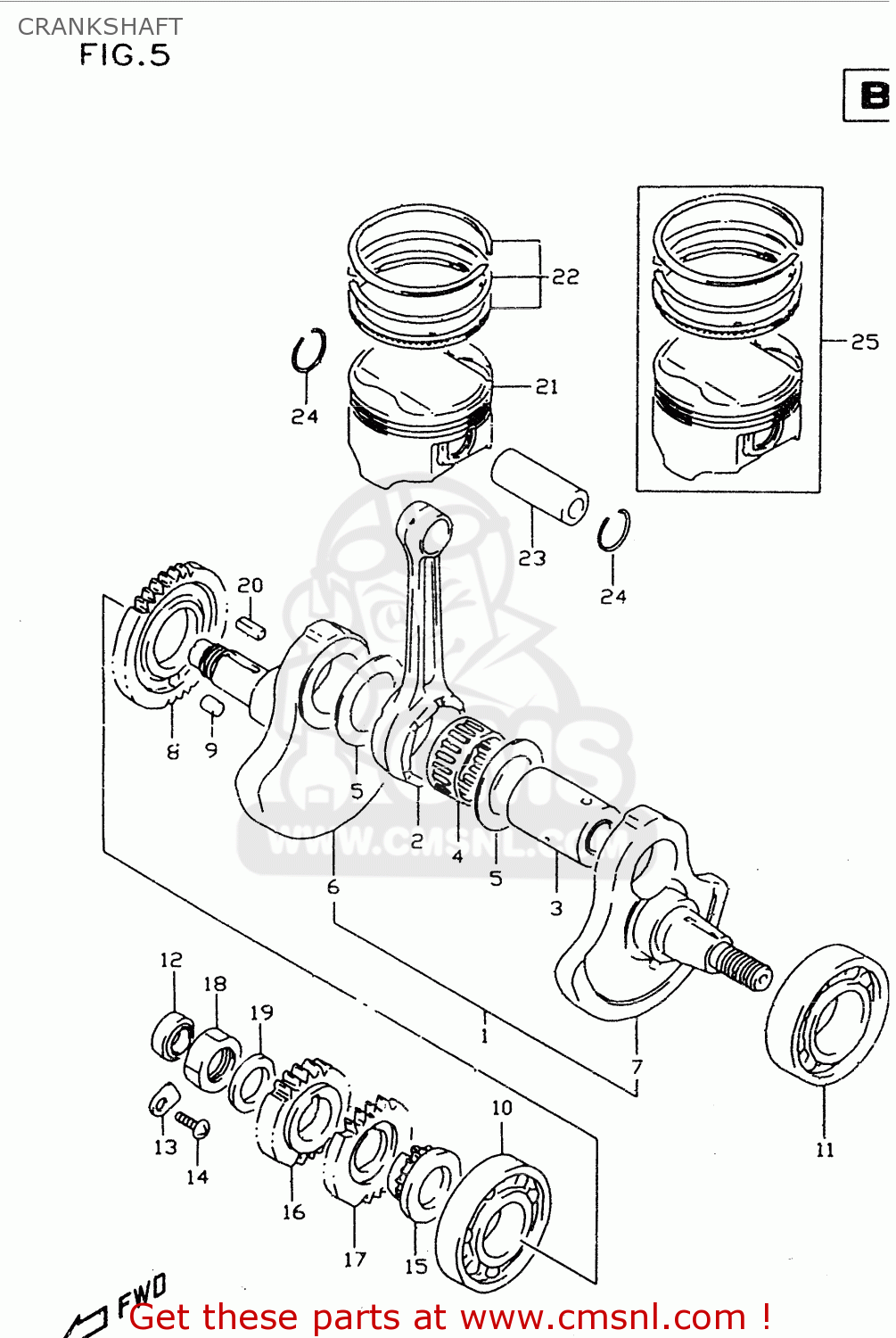

Crankshaft schéma DR350SE 1998 (X)

CRANKSHAFT DR350SE 1998 (X)
CRANKSHAFT DR350SE 1998 (X)
les prix sont en EUR
ref
pièce #
description
quantité
1
1220014E00
ref: 1
CRANKSHAFT ASSY
€ 913.50
2
1216114D00
ref: 2
ROD,CONNECTING
1216114D00
€ 92.50
3
1221014D02
ref: 3
PIN COMP,CRANK
€ 52.00
4
0926334005
ref: 4
BEARING(34X43X22)
0926334005
€ 45.00
5
0916034003
ref: 5
WASHER(34X52X1)
0916034003
€ 6.50
6
1222114D01
ref: 6
CRANKSHAFT,R
€ 296.50
7
1226114E00
ref: 7
CRANKSHAFT,L
€ 222.00
8
1266114D00
ref: 8
GEAR,CRANK BAL DRIVE(NT:37)
€ 109.00
9
0422108149
ref: 9
PIN
0422108149
€ 2.00
10
0926230077
ref: 10
BEARING(30X72X19)
0926230077
€ 49.00
11
0926235038
ref: 11
BEARING(35X72X17)
0926235038
€ 30.50
12
0928214003
ref: 12
SEAL,OIL(14X24X6)
0928214003
€ 6.00
13
2474218A00
ref: 13
RETAINER,BEARING
2474218A00
€ 2.50
14
0211206123
ref: 14
SCREW
0211206123
€ 1.50
15
1273114D00
ref: 15
NT:17
SPROCKET,CAM CHAIN DRIVE
1273114D00
€ 47.00
16-1
2111115D20
ref: 16-1
MODEL R/S
GEAR,PRIMARY DRIVE (NT:
€ 47.50
16-2
2111114D01
ref: 16-2
MODEL T/V/W
GEAR,PRIMARY DRIVE
2111114D01
€ 41.00
16-3
2111115D21
ref: 16-3
MODEL T/V/W E18,E24,
GEAR,PRIMARY DRIVE
€ 47.50
17
1632115D00
ref: 17
GEAR,OIL PUMP DRIVE (NT
€ 27.00
18
0914018012
ref: 18
NUT
0914018012
€ 6.50
19-1
0916418001
ref: 19-1
MODEL R/S
WASHER
0916418001
€ 3.00
19-2
0916418007
ref: 19-2
MODEL T/V/W
WASHER
0916418007
€ 3.00
20
0942105009
ref: 20
KEY
0942105009
€ 6.00
21
1211114D030F0
ref: 21
PISTON
1211114D030F0
€ 76.50
22
1214014D10
ref: 22
RING SET,PISTON
1214014D10
€ 51.00
23
1215124A00
ref: 23
PIN,PISTON
1215124A00
€ 16.50
24
0938120004
ref: 24
CIRCLIP,PISTON PIN
0938120004
€ 1.50
25-1
1210014D01050
ref: 25-1
OPT
PISTON SET(OS:0.5)
1210014D01050
€ 124.50
25-2
1210014D01100
ref: 25-2
OPT
PISTON SET (OS:1.0)
€ 101.50
