FRAME

LT230E 1989 (K)

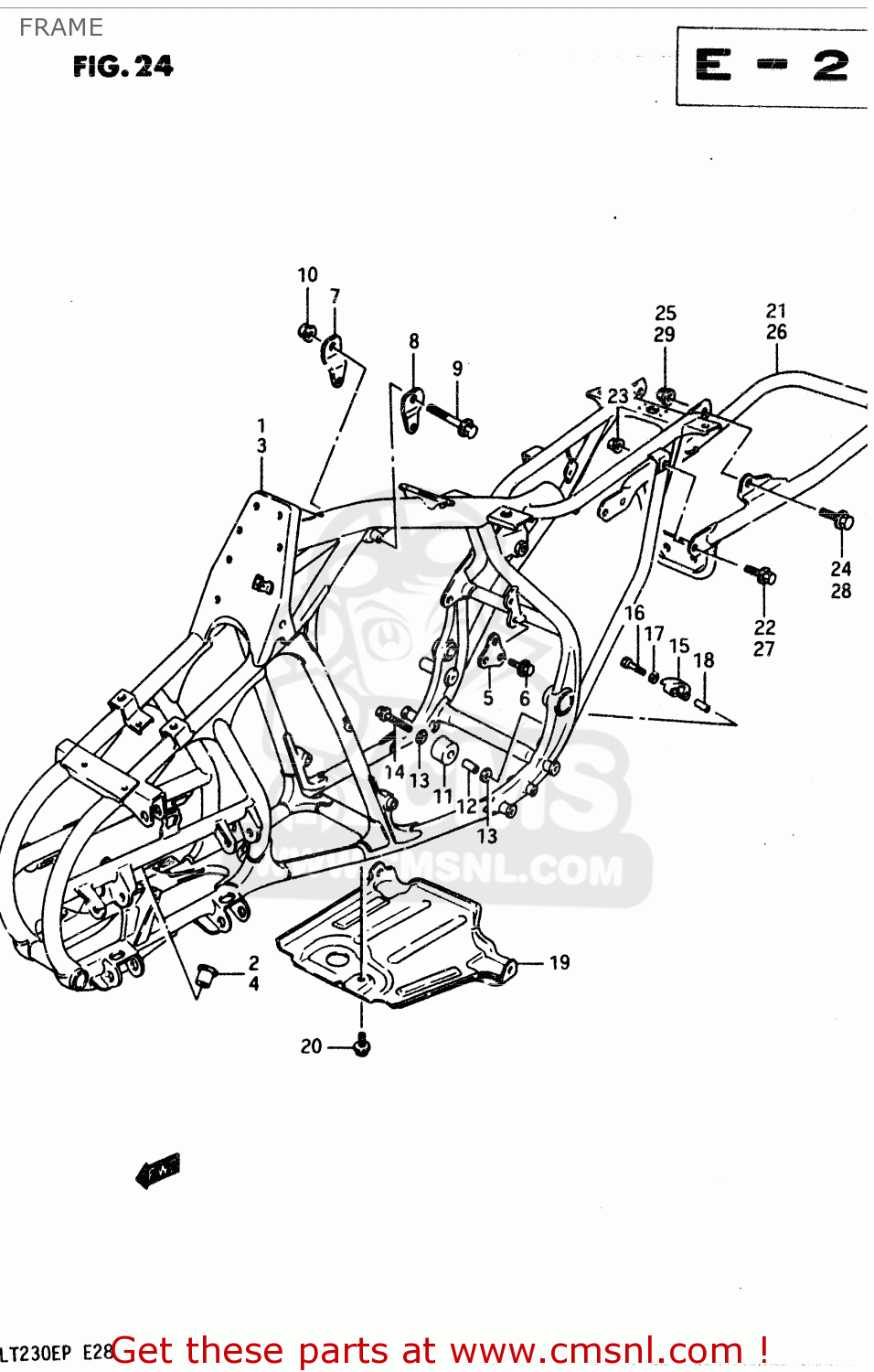

Frame schéma LT230E 1989 (K)

FRAME LT230E 1989 (K)
FRAME LT230E 1989 (K)
les prix sont en EUR
ref
pièce #
description
quantité
1
4110035B00019
ref: 1
MODEL H
FRAME (BLACK)
€ 1,233.00
2
5166124500
ref: 2
MODEL H
BUSH,STEERING SHAFT LWR
€ 0.00
3-1
4110035B10019
ref: 3-1
MODEL J
FRAME
€ 1,233.00
3-2
4110035B11019
ref: 3-2
MODEL K/L
FRAME
€ 1,233.00
3-3
4110035B12019
ref: 3-3
MODEL M/N/P
FRAME
€ 1,233.00
4-1
5166119B00
ref: 4-1
MODEL J
BUSHING,STEERING SHAFT,LOWER
€ 22.00
4-2
5166119B10
ref: 4-2
MODEL K/L/M/N/P
BUSH
€ 22.00
5
4199635B00019
ref: 5
PLATE,ENGINE MOUNTING
€ 0.00
6
0712008165
ref: 6
BOLT
€ 2.50
7
4199335B00
ref: 7
PLATE,ENG MTG UPR,R
€ 5.00
8
4199435B00
ref: 8
PLATE,ENGINE MOUNTING
€ 5.00
9
0910310132
ref: 9
BOLT 10X75
€ 6.00
10
0831931105
ref: 10
NUT 10MM
€ 2.50
11
4391135B00
ref: 11
ROLLER,CHAIN CONTROL
4391135B00
€ 13.00
12
0918008119
ref: 12
SPACER(8.6X12X25.5)
0918008119
€ 5.00
13
0821108201
ref: 13
WASHER
0821108201
€ 2.00
14
0910308043
ref: 14
BOLT(8X45)
0910308043
€ 3.50
15
4391135B10
ref: 15
BUFFER,CHAIN
4391135B10
€ 5.50
16
0110706305
ref: 16
BOLT
€ 2.00
17
0916006031
ref: 17
WASHER (6.3X14X1.6)
€ 1.50
18
0918006072
ref: 18
SPACER
0918006072
€ 1.50
19-1
4251022A10
ref: 19-1
MODEL H/J/K
PROTECTOR,ENGINE
€ 91.00
19-2
4251035B00
ref: 19-2
MODEL L/M/N/P
PROTECTOR,ENGINE
€ 91.00
20-1
0151708125
ref: 20-1
MODEL H/J/K
BOLT
0151708125
€ 2.50
20-2
0151708165
ref: 20-2
MODEL L/M/N/P
BOLT, LOWER
0151708165
€ 2.00
21
4398035B00
ref: 21
MODEL H/J
GRIP,REAR
€ 103.00
22
0151708207
ref: 22
MODEL H/J
BOLT
€ 2.00
23
0831931087
ref: 23
MODEL H/J
NUT
0831931087
€ 2.00
24
0151710257
ref: 24
MODEL H/J
BOLT
0151710257
€ 3.00
25
0831931107
ref: 25
MODEL H/J
NUT
0831931107
€ 2.00
26
4398035B1025G
ref: 26
MODEL K/L/M/N/P
GRIP COMP,REAR
€ 103.00
27
0151708205
ref: 27
MODEL K/L/M/N/P
BOLT
€ 3.00
28
0151710255
ref: 28
MODEL K/L/M/N/P
BOLT
€ 3.00
29
0831931105
ref: 29
MODEL K/L/M/N/P
NUT 10MM
€ 2.50
