Votre catalogue de pièces en ligne

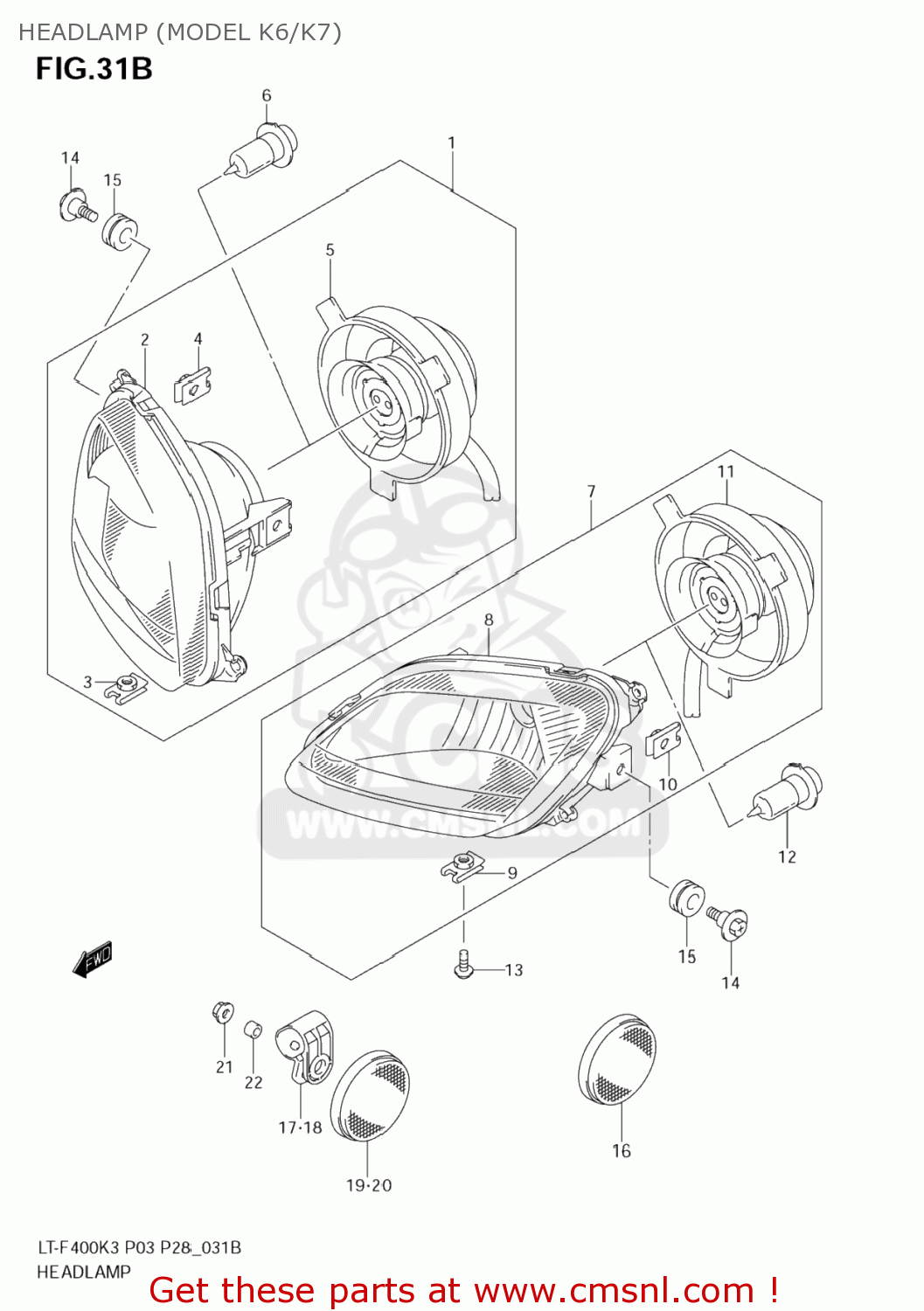

HEADLAMP (MODEL K6/K7)

LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400

Headlamp (model k6/k7) schéma LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400

HEADLAMP (MODEL K6/K7) LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400
HEADLAMP (MODEL K6/K7) LT-F400 EIGER 2WD 2007 (K7) USA (E03) LTF400 LT F400
les prix sont en EUR
ref
pièce #
description
quantité
1
3510005G60999
ref: 1
HEADLAMP ASSY,R
3510005G60999
€ 164.50
2
3512103G00
ref: 2
UNIT,R
3512103G00
€ 130.50
3
3515705G50
ref: 3
NUT(M5)
3515705G50
€ 4.00
4
3515705G60
ref: 4
NUT(M6)
3515705G60
€ 4.50
5
3517105GR0
ref: 5
CORD ASSY,R
€ 24.00
6
0947112093
ref: 6
BULB(12V30/30W,STANLEY 03300A)
0947112093
€ 22.00
7
3530005G60999
ref: 7
HEADLAMP ASSY,L
3530005G60999
€ 164.50
8
3532103G00
ref: 8
UNIT,L
3532103G00
€ 124.50
9
3515705G50
ref: 9
NUT(M5)
3515705G50
€ 4.00
10
3515705G90
ref: 10
NUT(M6)
3515705G90
€ 4.00
11
3517105GL0
ref: 11
CORD ASSY,L
€ 24.50
12
0947112093
ref: 12
BULB(12V30/30W,STANLEY 03300A)
0947112093
€ 22.00
13
0913605046
ref: 13
SCREW(5X16)
€ 2.50
14
0913906118
ref: 14
SCREW(6X22.5)
0913906118
€ 3.00
15
0932010501
ref: 15
CUSHION
0932010501
€ 4.00
16
3595014A00
ref: 16
REFLECTOR,REFLEX FR
3595014A00
€ 15.50
17
3565603G00
ref: 17
BRACKET,FR SIDE REFLECTOR,R
€ 0.00
18
3565603G00
ref: 18
BRACKET,FR SIDE REFLECTOR,R
€ 0.00
19
3595014A20
ref: 19
REFLEX REFLECTOR
3595014A20
€ 9.50
20
3595014A20
ref: 20
REFLEX REFLECTOR
3595014A20
€ 9.50
21
0915905044
ref: 21
09159-05049
NUT
€ 1.50
22
0918005053
ref: 22
SPACER(5.5X9.5X6.5)
0918005053
€ 2.00
