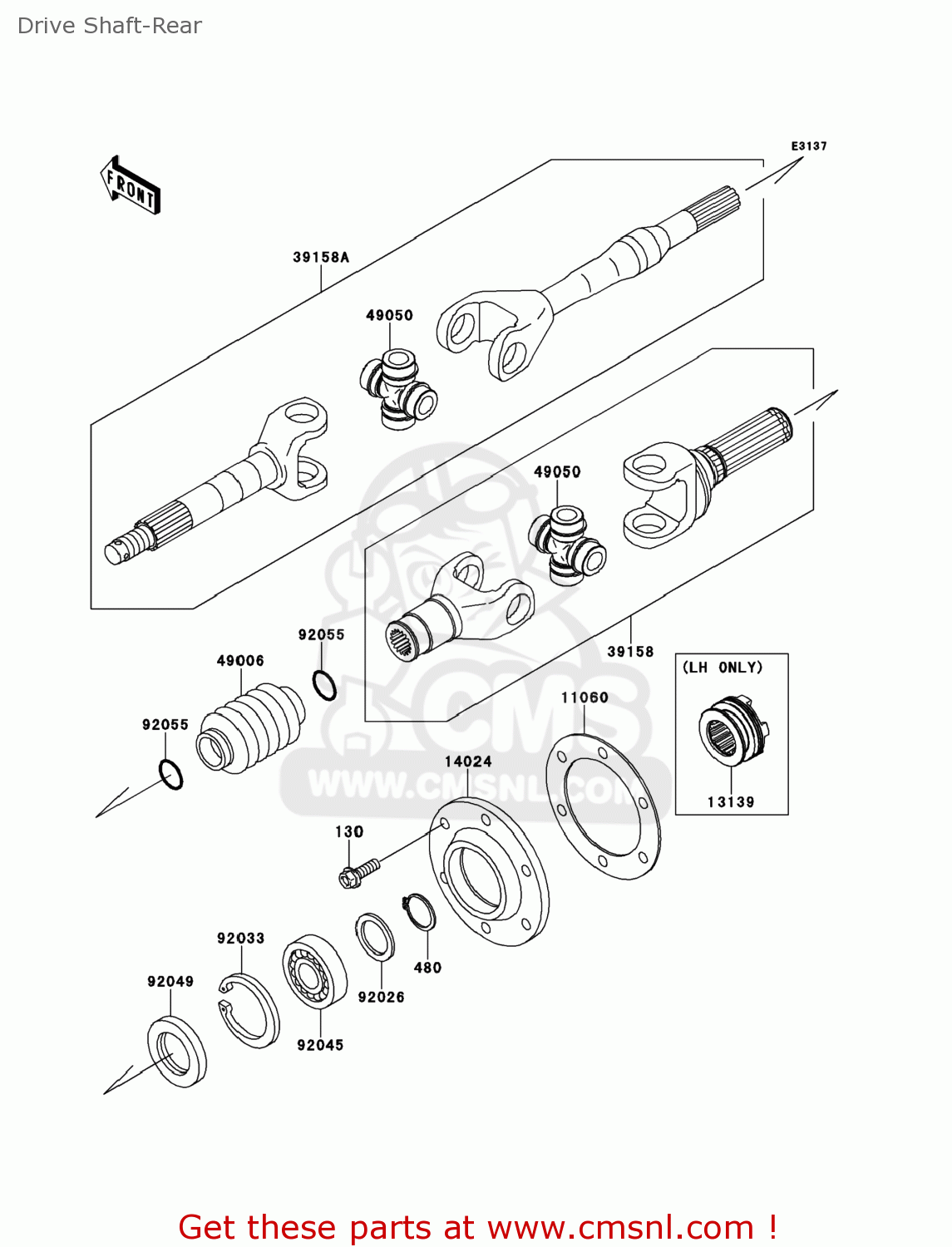

Drive Shaft-Rear

KAF950-GCF MULE4010 2012 USA / TRANS4X4 DIESEL

Drive shaft-rear schéma KAF950-GCF MULE4010 2012 USA / TRANS4X4 DIESEL

les prix sont en EUR

ref

pièce #

description

quantité

11060

110601251
ref: 11060

GASKET,DRIVESHAFT COV (NAS)

€ 8.00

130

130BA0825
ref: 130

BOLT-FLANGED,8X25

€ 0.50

13139

131390009
ref: 13139

SHIFTER

€ 76.00

14024

140241560
ref: 14024

COVER,DRIVESHAFT

€ 201.50

39158

391581119
ref: 39158

SHAFT-ASSY-DRIVE,INSI

€ 566.00

39158A

391581120
ref: 39158A

SHAFT-ASSY-DRIVE

€ 512.50

480

480J2800
ref: 480

CIRCLIP-TYPE-C,28MM

€ 3.00

49006

490061257
ref: 49006

BOOT,DRIVE SHAFT

€ 31.00

49050

490500023
ref: 49050

SPIDER

€ 149.00

92026

920261489
ref: 92026

SPACER,28.1X38X2.6

€ 2.50

92033

920331274
ref: 92033

RING-SNAP

€ 6.00

92045

920450108
ref: 92045

BEARING-BALL,L 6006

€ 20.50

92049

920491298
ref: 92049

SEAL-OIL,TC35X55X8

€ 7.00

92055

920551451
ref: 92055

RING-O,19.5X3.0

€ 2.50
