CARBURETOR(AF620A-509265∼)

KAF620-A2 MULE 1996 USA,CANADA

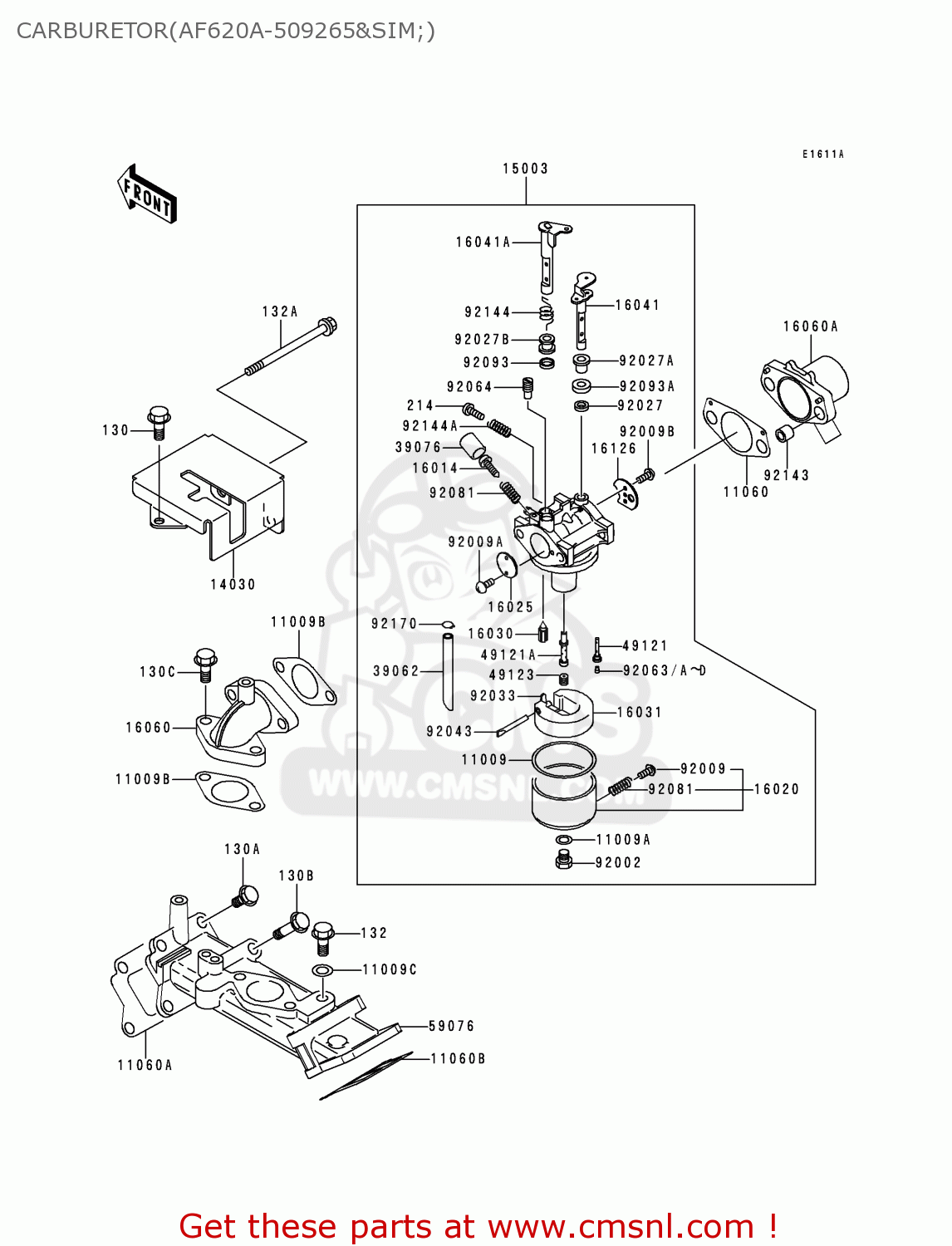

Carburetor(af620a-509265∼) schéma KAF620-A2 MULE 1996 USA,CANADA

CARBURETOR(AF620A-509265∼) KAF620-A2 MULE 1996 USA,CANADA
CARBURETOR(AF620A-509265∼) KAF620-A2 MULE 1996 USA,CANADA
les prix sont en EUR
ref
pièce #
description
quantité
11009
110092024
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
110092024
€ 3.00
11009A
110092025
ref: 11009A
GASKET (NAS)
110092025
€ 1.00
11009B
110092944
ref: 11009B
GASKET (NAS)
€ 2.00
11009C
110093028
ref: 11009C
GASKET (NAS)
110093028
€ 0.50
11060
110602086
ref: 11060
GASKET (NAS)
110602086
€ 1.00
11060A
110602087
ref: 11060A
GASKET,INTAKE MANIFOL (NAS)
110602087
€ 2.50
11060B
110602088
ref: 11060B
GASKET,INTAKE MANIFOL (NAS)
110602088
€ 2.00
14030
1403020589H
ref: 14030
COVER-CARBURETOR,F.BL
€ 11.00
15003
150032509
ref: 15003
CARBURETOR-ASSY
150032509
€ 350.50
16014
160142076
ref: 16014
SCREW-PILOT AIR
160142076
€ 9.00
16020
160202094
ref: 16020
CHAMBER-FLOAT
€ 32.00
16025
160252168
ref: 16025
VALVE-THROTTLE
160252168
€ 7.00
16030
160302067
ref: 16030
VALVE-FLOAT
160302067
€ 13.50
16031
160312066
ref: 16031
FLOAT
160312066
€ 23.50
16041
160412220
ref: 16041
SHAFT-CARBURETOR
€ 20.50
16041A
160412239
ref: 16041A
SHAFT-CARBURETOR
€ 28.50
16060
160602175
ref: 16060
PIPE-INTAKE
160602175
€ 15.00
16060A
160602176
ref: 16060A
PIPE-INTAKE
€ 7.00
16126
161262193
ref: 16126
VALVE,CHOKE
€ 7.00
39062
390622060
ref: 39062
HOSE-COOLING
€ 2.50
39076
390762053
ref: 39076
LIMITER
390762053
€ 1.50
49121
491212101
ref: 49121
NOZZLE-MAIN
€ 22.00
49121A
491212185
ref: 49121A
NOZZLE-MAIN
€ 37.00
49123
491232065
ref: 49123
HOLDER-MAIN JET
491232065
€ 16.50
59076
590762062
ref: 59076
MANIFOLD-INTAKE
€ 42.50
92002
920022009
ref: 92002
BOLT
€ 5.50
92009
920092015
ref: 92009
SCREW
920092015
€ 3.50
92009A
920092080
ref: 92009A
SCREW
€ 1.00
92009B
920092081
ref: 92009B
SCREW
920092081
€ 1.00
92027
920272003
ref: 92027
COLLAR
920272003
€ 3.00
92027A
920272004
ref: 92027A
COLLAR
920272004
€ 3.50
92027B
920272025
ref: 92027B
COLLAR
920272025
€ 2.50
92033
920332067
ref: 92033
RING-SNAP
€ 2.50
92043
920432006
ref: 92043
PIN
920432006
€ 2.00
92063
920632267
ref: 92063
JET-MAIN,#110A
€ 7.00
92063A
920632270
ref: 92063A
JET-MAIN,#107.5A
920632270
€ 7.00
92063B
920632271
ref: 92063B
JET-MAIN,#105A
€ 7.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130B0620
ref: 130A
BOLT,HEX HEAD,6X20
130B0620
€ 2.00
130B
130B0645
ref: 130B
BOLT-FLANGED.6X45
€ 0.50
130C
130B0820
ref: 130C
BOLT-FLANGED,8X20
130B0820
€ 0.50
132
132J0812
ref: 132
BOLT-FLANGED-SMALL,8X
132J0812
€ 1.00
132A
132J0880
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
214
214B0414
ref: 214
SCREW-PAN+-
€ 0.50
92063C
920632305
ref: 92063C
JET-MAIN,#112.5A
920632305
€ 11.50
92063D
920632314
ref: 92063D
JET-MAIN,#115A
€ 11.50
92064
920642113
ref: 92064
JET-PILOT,#40
€ 8.50
92081
920812009
ref: 92081
SPRING
€ 1.50
92093
920932082
ref: 92093
SEAL
920932082
€ 1.50
92093A
920932101
ref: 92093A
SEAL
920932101
€ 1.00
92143
921432201
ref: 92143
COLLAR,8.2X10X8.5
€ 0.50
92144
921442339
ref: 92144
SPRING
921442339
€ 5.00
92144A
921442342
ref: 92144A
SPRING
€ 5.00
92170
921702023
ref: 92170
CLAMP
€ 1.00
