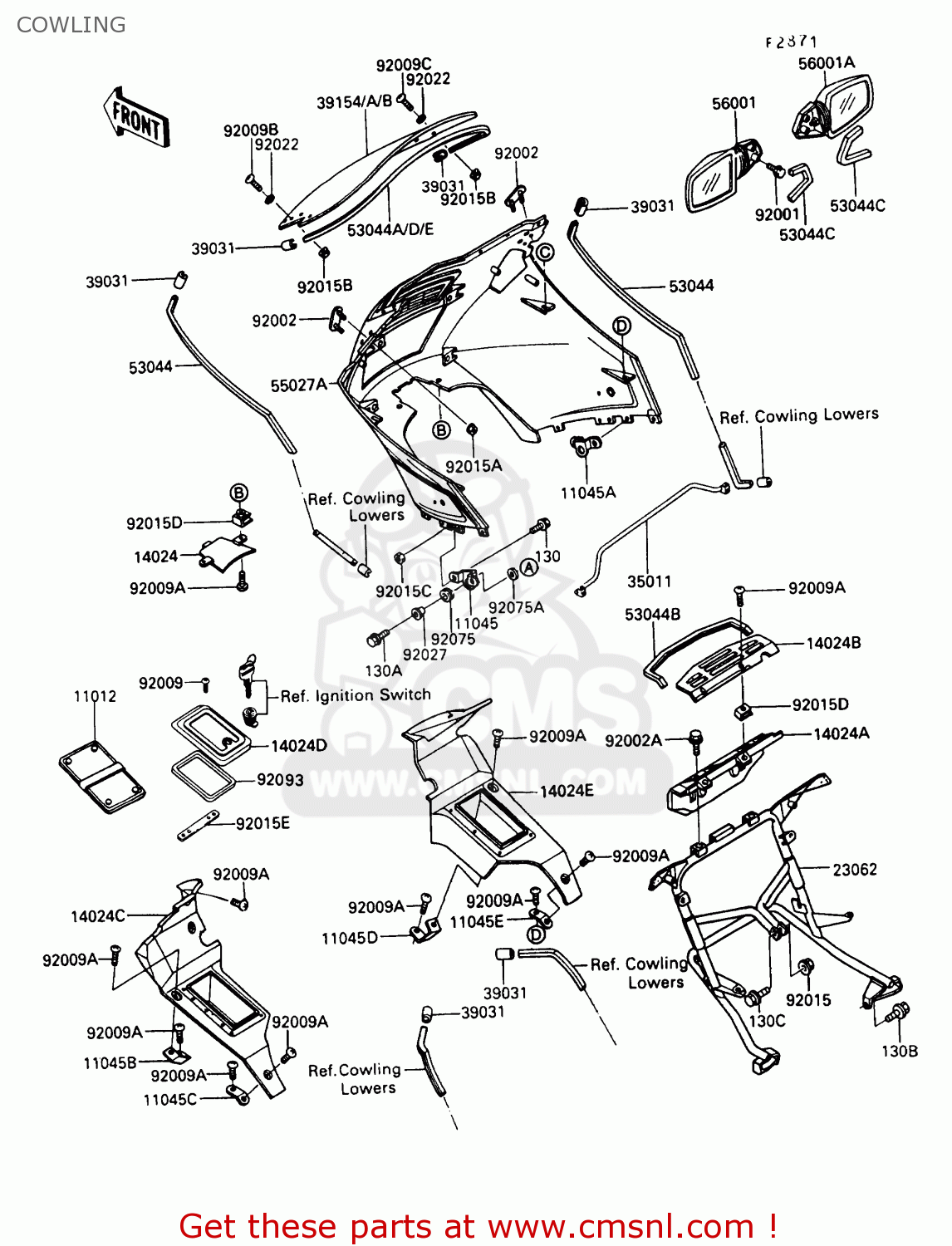

COWLING

ref

pièce #

description

quantité

11012

110121546
ref: 11012

CAP,INNER COWLING

€ 28.50

11045

110441907
ref: 11045

BRACKET,UPPER COWLING

€ 6.50

11045A

110441908
ref: 11045A

BRACKET,UPPER COWLING

€ 6.50

11045B

110441909
ref: 11045B

BRACKET,INNER COWLING

€ 4.50

11045C

110441910
ref: 11045C

BRACKET,INNER COWLING

€ 4.50

11045D

110441922
ref: 11045D

BRACKET,INNER COWLING

€ 4.50

11045E

110451612
ref: 11045E

BRACKET,INNER COWLING

€ 4.00

14024

140241252A5
ref: 14024

COVER,UPPER COWLING,L

€ 49.50

14024A

140241255
ref: 14024A

COVER,HORN,RR

€ 52.50

14024B

140241256
ref: 14024B

COVER,INNER COWLING,C

€ 52.50

14024C

140241422
ref: 14024C

COVER,INNER COWLING,U

€ 49.00

14024D

140241472
ref: 14024D

COVER,INNER COWLING C

€ 25.50

14024E

140241473
ref: 14024E

COVER,INNER COWLING,U

€ 77.50

23062

230621068
ref: 23062

BRACKET-COMP,UPPER CO

€ 241.00

35011

350111340
ref: 35011

STAY,SIDE COWLING

€ 66.00

39031

390311055
ref: 39031

CAP-END,TRIM

€ 3.50

39154

391541094
ref: 39154

WINDSHIELD,SHORT TYPE

€ 498.00

39154A

391541095
ref: 39154A

WINDSHIELD,LONG TYPE

€ 436.50

39154B

391541096
ref: 39154B

WINDSHIELD,SUPER LONG

€ 458.50

53044

530441157
ref: 53044

TRIM,COWLING

€ 17.50

53044A

530441164
ref: 53044A

TRIM,WINDSHIELD,SHORT

€ 15.50

53044B

530441172
ref: 53044B

TRIM,INNER COWLING

€ 8.00

53044C

530441173
ref: 53044C

TRIM,MIRROR

€ 5.50

53044D

530441192
ref: 53044D

TRIM,WINDSHIELD,LONG

€ 16.50

53044E

530441196
ref: 53044E

TRIM,WINDSHIELD,SUPER

€ 15.50

55027A

550275035A5
ref: 55027A

COWLING-ASSY-UPP-OUT.

€ 825.50

56001

560011333
ref: 56001

MIRROR-ASSY,LH

€ 145.50

56001A

560011334
ref: 56001A

MIRROR-ASSY,RH

€ 145.50

92001

920011847
ref: 92001

BOLT,6X14,BLACK

€ 2.50

92002

920021800
ref: 92002

BOLT,"U"

€ 6.50

92002A

920021884
ref: 92002A

BOLT,6X12

€ 2.50

92009

920091108
ref: 92009

SCREW,4X16

€ 2.00

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 1.50

130B

130J0812
ref: 130B

BOLT-FLANGED

€ 0.50

130C

130J0830
ref: 130C

BOLT-FLANGED,8X30

€ 2.50

92009A

920091308
ref: 92009A

SCREW,6X14

€ 1.50

92009B

920091383
ref: 92009B

SCREW,5X14

€ 2.50

92009C

920091453
ref: 92009C

SCREW,5X20

€ 2.50

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92015A

920151237
ref: 92015A

NUT,FLANGED,6MM,BLACK

€ 3.50

92015B

920151343
ref: 92015B

NUT,5MM,COWLING

€ 2.50

92015C

920151394
ref: 92015C

NUT,STAY,6MM

€ 2.50

92015D

920151602
ref: 92015D

NUT,6MM

€ 4.00

92015E

920151661
ref: 92015E

NUT,PLATE,4MM

€ 4.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92027

920271450
ref: 92027

COLLAR,L=13.1,BLACK

€ 4.00

92075

92075174
ref: 92075

DAMPER,MALE

€ 2.50

92075A

92075175
ref: 92075A

DAMPER,FEMALE

€ 2.50

92093

920931239
ref: 92093

SEAL,FAIRING POCKET

€ 4.00
