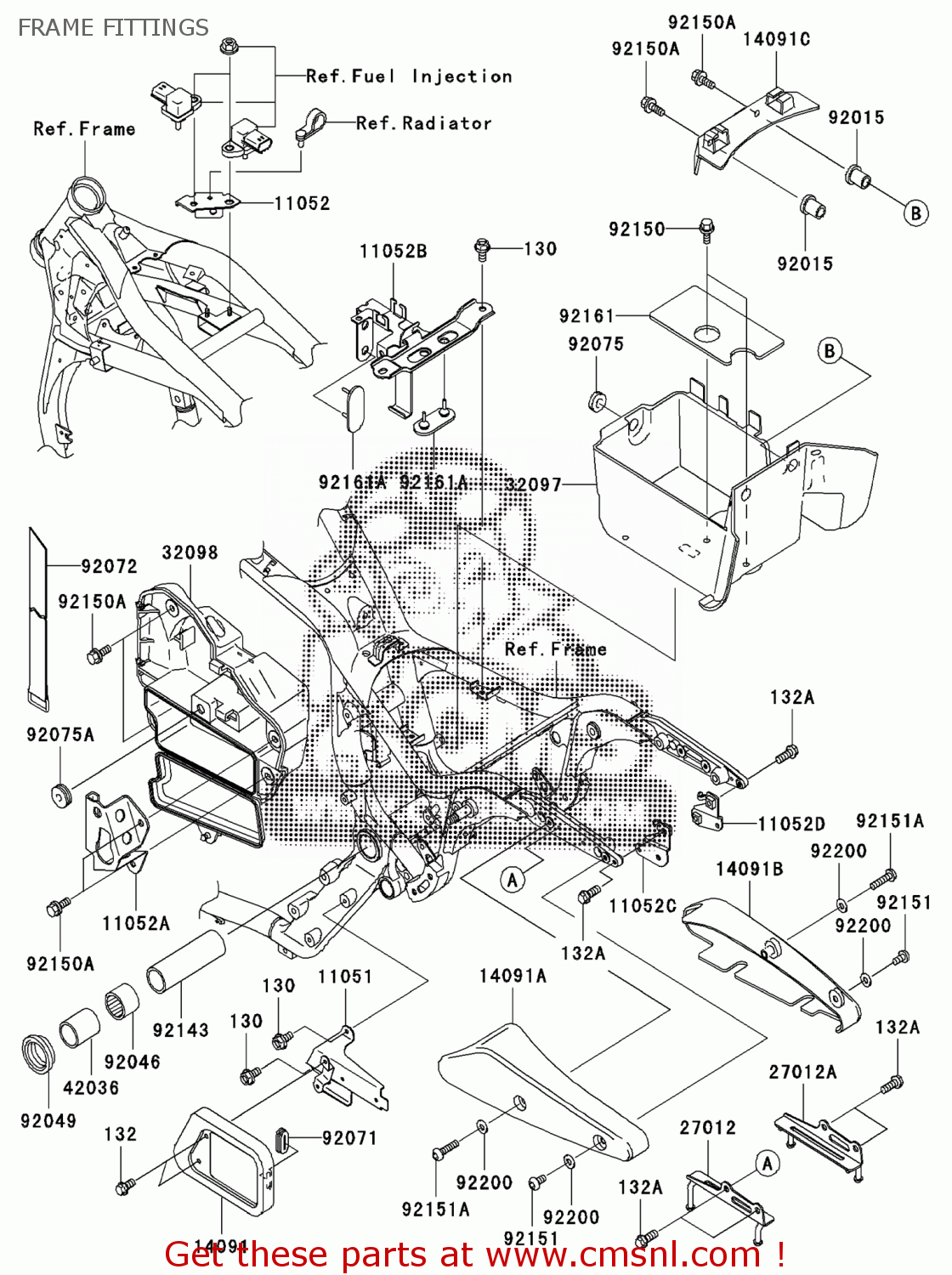

FRAME FITTINGS

ref

pièce #

description

quantité

130

130BB0612
ref: 130

BOLT-FLANGED,6X12

€ 1.50

132

920021569
ref: 132

BOLT,6X12

€ 2.50

11051

110511163
ref: 11051

BRACKET,REGULATOR

€ 43.00

11052

110521071
ref: 11052

BRACKET

€ 6.50

14091

140911079
ref: 14091

COVER,REGULATOR

€ 32.00

27012

270121609
ref: 27012

HOOK,BUNGEE CORD,LH

€ 17.00

32097

320971192
ref: 32097

CASE-BATTERY

€ 27.50

32098

320981137
ref: 32098

CASE-TOOL

€ 96.50

42036

420361330
ref: 42036

SLEEVE,L=45

€ 17.50

92015

920151700
ref: 92015

NUT

€ 5.00

92046

920461202
ref: 92046

BEARING-NEEDLE,BM2824

€ 23.00

92049

920491181
ref: 92049

SEAL-OIL

€ 7.00

92071

920710013
ref: 92071

GROMMET

€ 3.50

92072

920721331
ref: 92072

BAND,L=470

€ 15.00

92075

920751067
ref: 92075

DAMPER,SIDE COVER

€ 2.50

92143

921431878
ref: 92143

COLLAR,20.2X27X90

€ 20.00

92150

921501133
ref: 92150

BOLT,6X14

€ 2.50

92151

921511940
ref: 92151

BOLT,SOCKET,6X12

€ 2.00

92161

921611097
ref: 92161

DAMPER,BATTERY

€ 3.50

92200

922003775
ref: 92200

WASHER,6.5X14.5X1.5

€ 1.00

11052A

110521234
ref: 11052A

BRACKET,SIDE COVER LO

€ 14.00

11052B

110521281
ref: 11052B

BRACKET,BATTERY BAND

€ 17.00

11052C

110521292
ref: 11052C

BRACKET,HELMET LOCK,L

€ 7.50

11052D

110521293
ref: 11052D

BRACKET,HELMET LOCK,R

€ 7.50

132A

920021570
ref: 132A

BOLT,6X16

€ 3.00

14091A

140911361
ref: 14091A

COVER,RR FENDER,LH

€ 60.50

14091B

140911363
ref: 14091B

COVER,RR FENDER,RH

€ 60.50

14091C

140911373
ref: 14091C

COVER,BATTERY CASE

€ 16.00

27012A

270121610
ref: 27012A

HOOK,BUNGEE CORD,RH

€ 17.00

92075A

920751629
ref: 92075A

DAMPER,SEAT COVER KIT

€ 3.00

92150A

921501198
ref: 92150A

BOLT

€ 2.50

92151A

921511945
ref: 92151A

BOLT,SOCKET,6X25

€ 3.00

92161A

921611214
ref: 92161A

DAMPER,BATTERY BAND

€ 2.50

toutes les assemblages
