AIR FILTER

KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

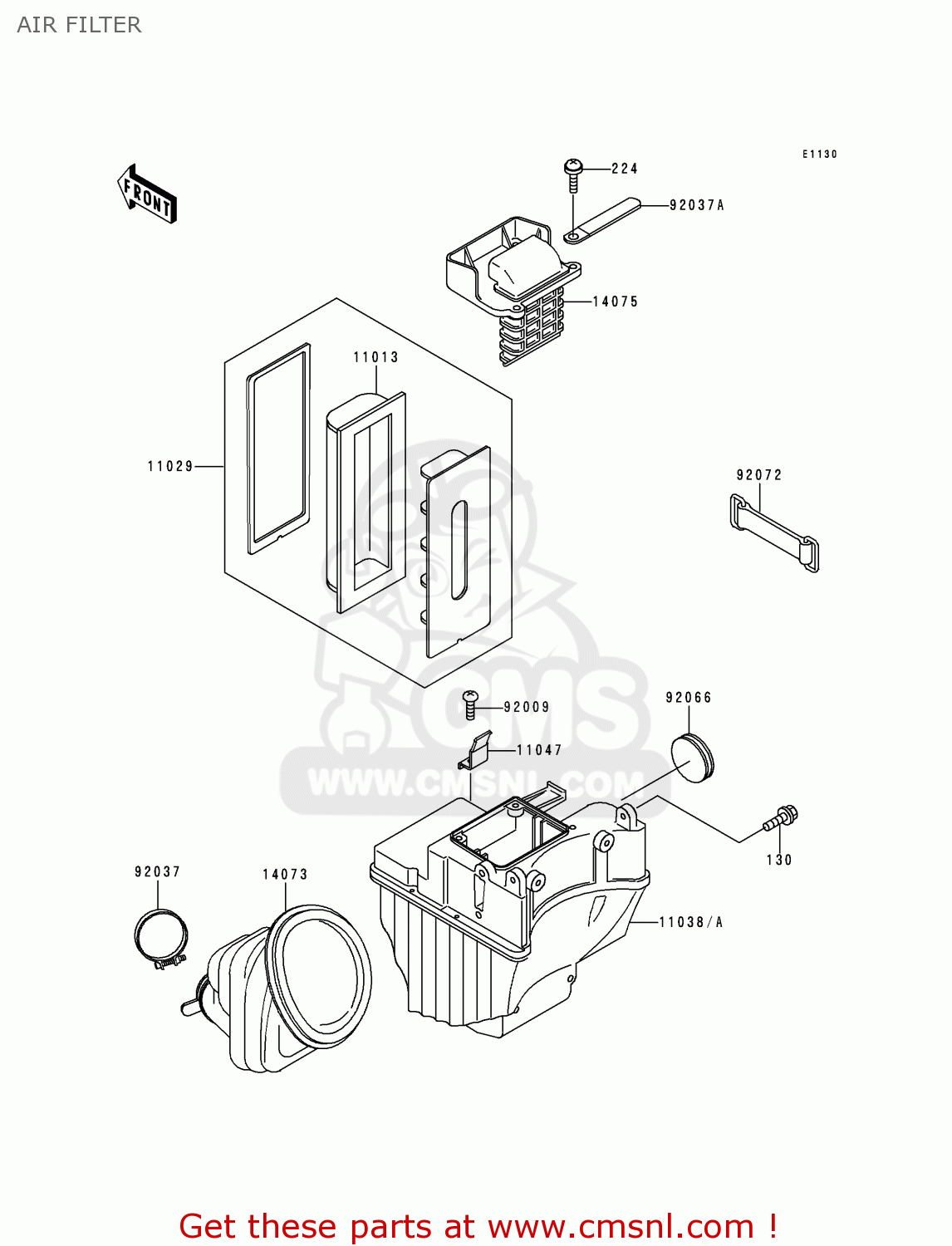

Air filter schéma KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

les prix sont en EUR

ref

pièce #

description

quantité

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

224

224B0618
ref: 224

SCREW-PAN-WP-CROS

€ 2.50

11013

110131186
ref: 11013

ELEMENT-AIR FILTER

€ 20.50

11029

110291003
ref: 11029

ELEMENT-ASSY-AIR FILT

€ 56.50

11038

110381076
ref: 11038

CASE-ASSY-AIR FILTER

€ 137.00

11047

110471046
ref: 11047

BRACKET

€ 4.50

14073

140731416
ref: 14073

DUCT,AIR FILTER

€ 75.00

14075

140751084
ref: 14075

CAP-ASSY,AIR DUCT

€ 50.00

92009

920091332
ref: 92009

SCREW,TAPPING,5X10

€ 2.50

92037

920371486
ref: 92037

CLAMP,55MM

€ 5.00

92037A

920371993
ref: 92037A

CLAMP

€ 3.50

92066

920661344
ref: 92066

PLUG

€ 3.50

92072

92072071
ref: 92072

BAND,BATTERY

€ 6.00
