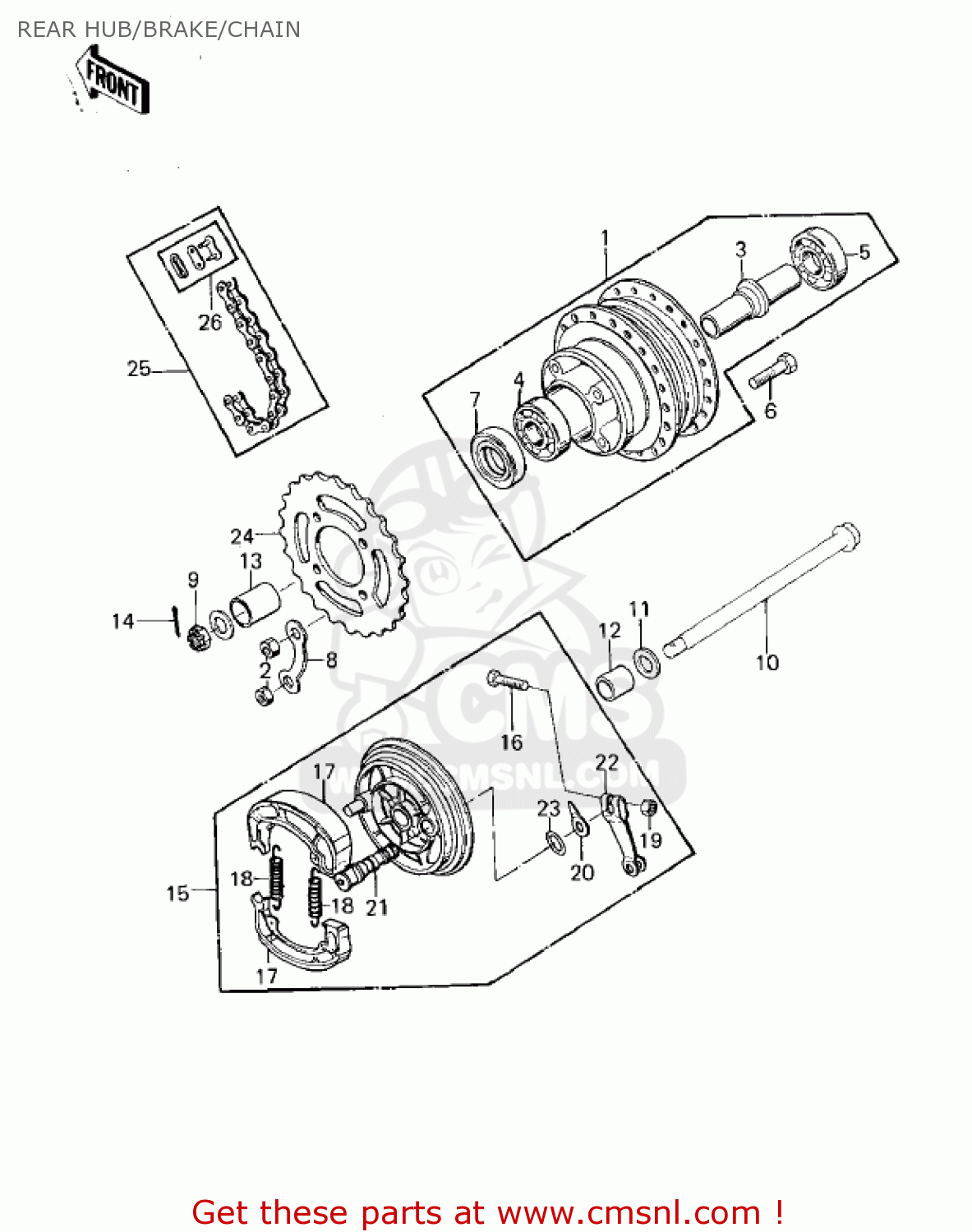

REAR HUB/BRAKE/CHAIN

ref

pièce #

description

quantité

1

41034100280
ref: 1

DRUM ASSY,RR BRK,BUFF

€ 251.50

2

311B0800
ref: 2

NUT,8MM

€ 0.50

2

317B0800
ref: 2

NUT,8M/M

€ 0.50

3

42010003
ref: 3

COLLAR,L=85

€ 6.00

4

601B6301
ref: 4

BEARING-BALL,#6301C3

€ 12.00

5

601B6301Z
ref: 5

BEARING-BALL,#6301ZC3

€ 14.00

6

92001021
ref: 6

BOLT-REAR SPROCKET

€ 3.50

7

92052001
ref: 7

OIL SEAL-RR BRK DRUM

€ 6.00

8

92088003
ref: 8

WASHER,SPROCKET LOCK

€ 2.50

9

321B1200
ref: 9

NUT-CASTLE

€ 2.50

10

410681091
ref: 10

AXLE,12X206

€ 22.50

11

411B1200
ref: 11

WASHER-PLAIN,12MM

€ 0.50

12

42032002
ref: 12

COLLAR,12.2X22X30.5

€ 8.50

13

42032044
ref: 13

COLLAR,L=14

€ 6.00

14

550D3025
ref: 14

PIN-COTTER,3.0X25

€ 0.50

15

4200606380
ref: 15

PANEL ASSY,REAR BRAKE

€ 166.00

16

112G0630
ref: 16

BOLT-UPSET

€ 1.00

17

410481085
ref: 17

SHOE-BRAKE (NAS)

€ 12.50

18

920811766
ref: 18

SPRING,BRAKE SHOE

€ 5.00

19

41072007
ref: 19

NUT,6MM

€ 2.50

20

41085003
ref: 20

INDICATOR,BRAKE SHOE

€ 8.50

21

42026018
ref: 21

CAM-BRAKE

€ 19.50

22

42029027
ref: 22

LEVER-BRAKE CAM

€ 15.50

23

92055004
ref: 23

RING-O,BRAKE CAM

€ 2.50

24

42041045
ref: 24
S.T.D.

REAR SPROCKET 39T

€ 19.50

24

42041020
ref: 24
OPTION

REAR SPROCKET 37T

€ 32.50

25

920571092
ref: 25
98 LINKS

DRIVE CHAIN,EK428 98L

€ 44.00

26

920581014
ref: 26

JOINT-CHAIN,EK428-G

€ 3.50
