F-15

CH250 1997 (V) FREEWAY JAPAN TYPE 2 MF03-130

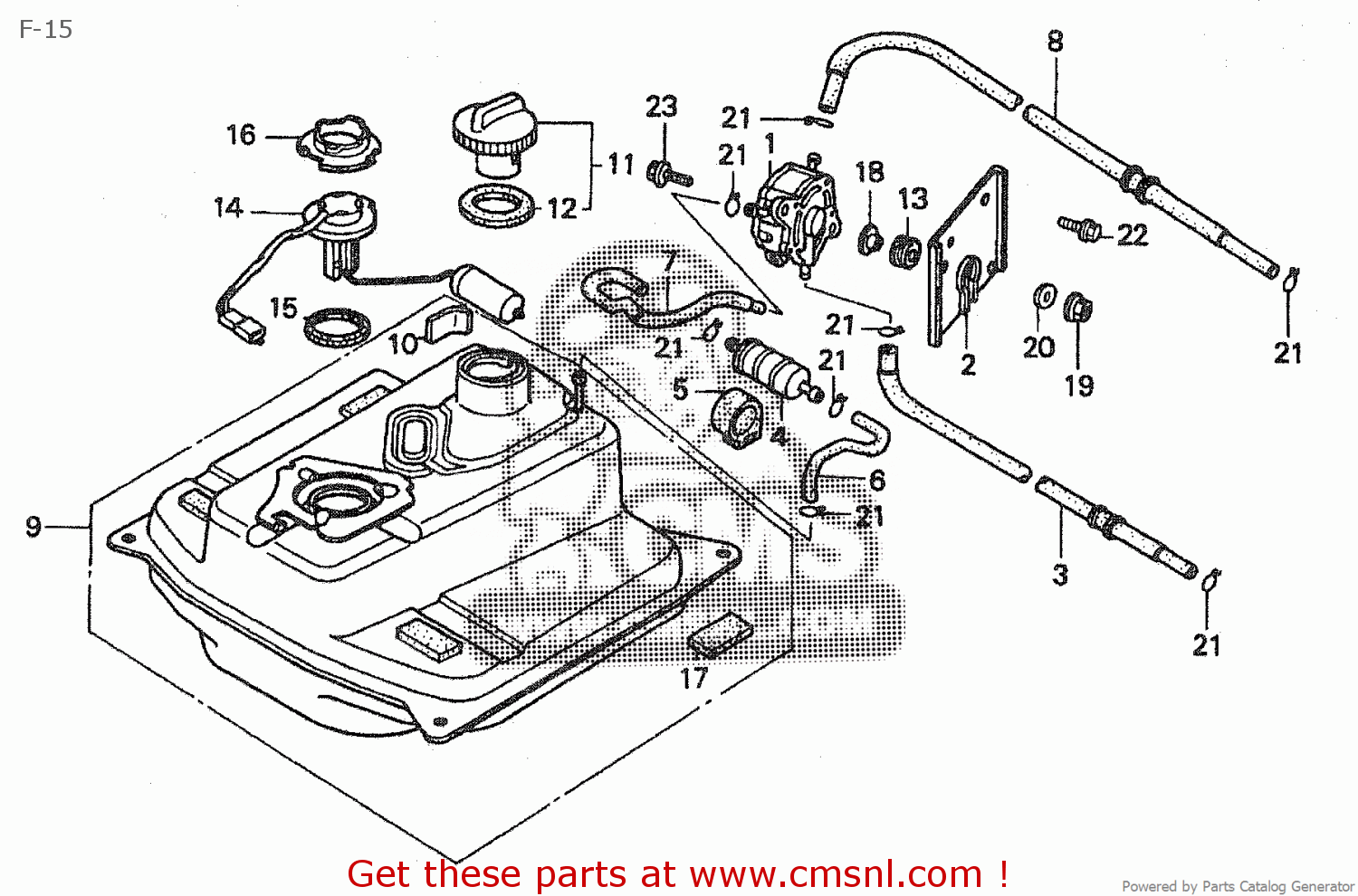

F-15 schéma CH250 1997 (V) FREEWAY JAPAN TYPE 2 MF03-130

F-15 CH250 1997 (V) FREEWAY JAPAN TYPE 2 MF03-130
F-15 CH250 1997 (V) FREEWAY JAPAN TYPE 2 MF03-130
les prix sont en EUR
ref
pièce #
description
quantité
1
16700KAB030
ref: 1
PUMP ASSY,FUEL
€ 202.50
2
16707KAB000
ref: 2
STAY FUEL PUMP
€ 11.50
3
16710KAB000
ref: 3
TUBE,PULSE
€ 8.50
4
16900371004
ref: 4
STRANER COMP.,
16900371004
€ 26.00
5
16905MG7000
ref: 5
CUSH FUEL STRANER
16905MG7000
€ 7.50
6
17301KAB000
ref: 6
TUBE A,FUEL STRAI
€ 2.00
7
17302KAB000
ref: 7
TUBE B,FUEL STRAI
€ 5.50
8
17303KAB000
ref: 8
TUBE,FUEL PUMP
€ 8.50
9
17500KAB770
ref: 9
TANK COMP.,FUEL
€ 269.50
11
17620GS7671
ref: 11
CAP COMP.,FUEL FI
17620GS7671
€ 34.00
12
17632383831
ref: 12
PACKING,FUEL FILL
17632383831
€ 6.50
13
36043657000
ref: 13
GROMMET,WIRE HARN
36043657000
€ 5.00
14
37800KAB010
ref: 14
FUEL UNIT
37800KAB010
€ 68.50
15
37801GA7700
ref: 15
PACKING,BASE
37801GA7700
€ 4.50
16
37802GA7700
ref: 16
RET,FUEL UNIT
37802GA7700
€ 4.50
17
83521198900
ref: 17
RUBBER,TOOL BOX
83521198900
€ 2.00
18
91551723650
ref: 18
COLLAR,DISTANCE
91551723650
€ 5.00
19
9405006080
ref: 19
NUT,FLANGE,6MM
9405006080
€ 1.00
20
9410306000
ref: 20
WASHER,PLAIN,6MM
9410306000
€ 1.00
22
957010601208
ref: 22
BOLT,FLANGE,6X12
957010601208
€ 1.00
23
957010602508
ref: 23
BOLT,FLANGE,6X25
957010602508
€ 1.50
