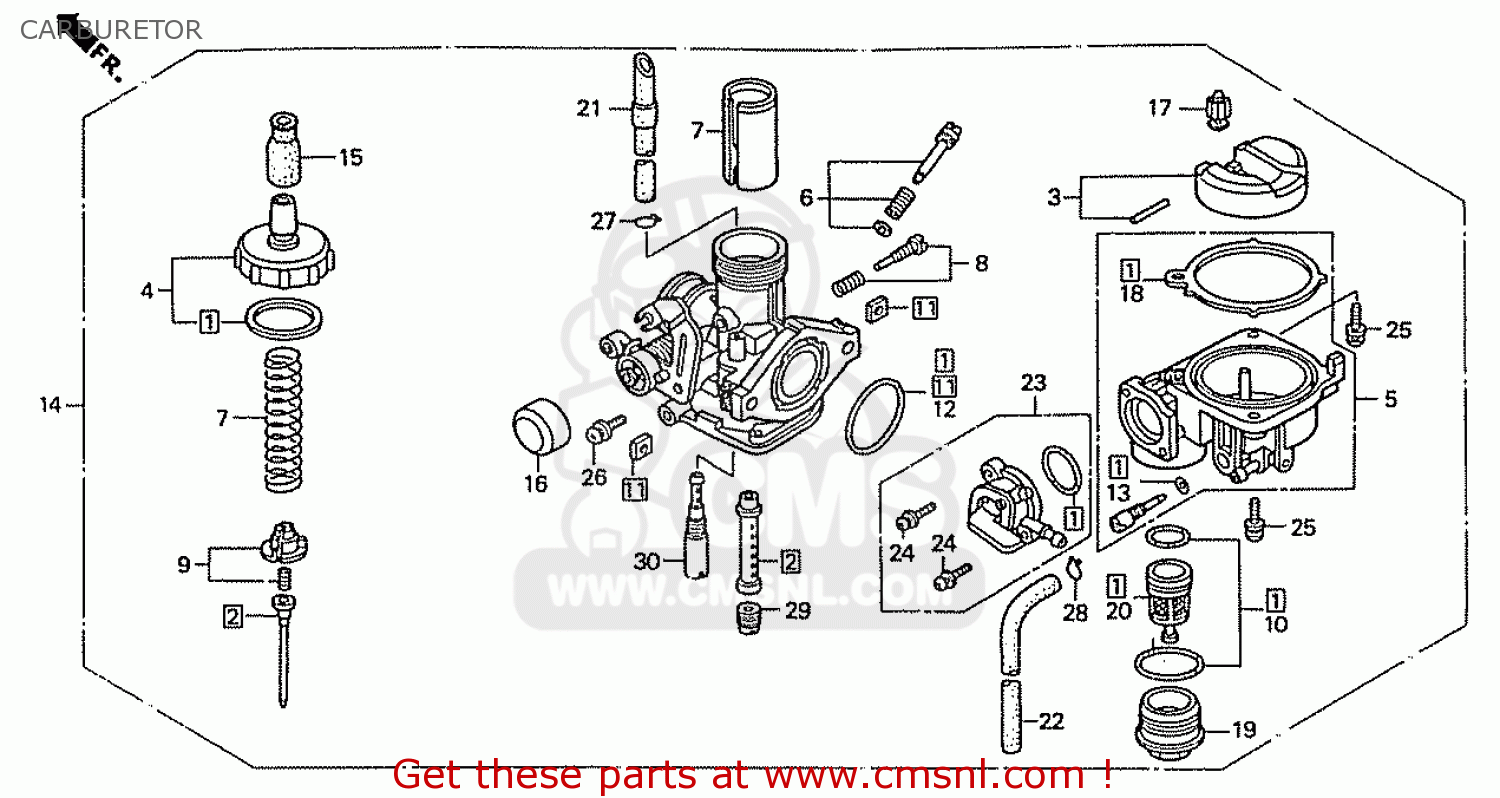

CARBURETOR

ref

pièce #

description

quantité

1

16010KFL851
ref: 1

GASKET SET

€ 15.50

2

16012KFL901
ref: 2

NEEDLE SET,JET

€ 15.00

3

16013KEV900
ref: 3

FLOAT SET

€ 39.50

4

16014KFL901
ref: 4

TOP SET (TDM)

€ 0.00

5

16015KFL851
ref: 5

CHAMBER SET FLOAT

€ 0.00

6

16016GAZ980
ref: 6

SCREW SET

€ 10.00

7

16022KFL901
ref: 7

VALVE SET,THROTTL (TDM)

€ 0.00

8

16028KFM901
ref: 8

SCREW SET

€ 0.00

9

16037KFL851
ref: 9

PLATE SET VALVE

€ 12.00

10

16040KEV900
ref: 10

GASKET SET

€ 8.50

11

16041GB5D30
ref: 11

NUT SET,SQUERE

€ 5.50

12

16075GHBB40
ref: 12

O-RING,2.4X25

€ 6.00

13

16075GHB640
ref: 13

O-RING,1.3X4.3

€ 3.00

14

16100KFL901
ref: 14

CARBURETOR ASSY

€ 0.00

15

16148KB1921
ref: 15

SEALING CAP,CABLE

€ 8.50

16

16148141881
ref: 16

CAP,CHOKE DUST

€ 4.50

17

16155883005
ref: 17

VALVE,FLOAT

€ 39.50

18

16163GBG960
ref: 18

GASKET,FLOAT CHAM

€ 7.00

19

16175GB0911
ref: 19

CUP,FUEL STRAINER

€ 18.50

20

16176GB0911
ref: 20

FILTER CUP

€ 11.00

21

16199KFL851
ref: 21

TUBE AIRVENT

€ 0.00

22

16199428771
ref: 22

TUBE,OVERFLOW

€ 8.00

23

16951KFL851
ref: 23

COCK BODY SET

€ 39.50

24

938920301218
ref: 24

SCREW WASH 3X12

€ 1.00

25

938920401818
ref: 25

SCREW-WASHER,4X18

€ 1.00

26

938920501018
ref: 26

SCREW WASH 5X10

€ 1.00

27

9500202089
ref: 27

CLIP B1 8,TUBE

€ 1.00

28

9500202659
ref: 28

CLIP B1 6.5 TUBE

€ 1.50

29

99101ZH70750
ref: 29

JET,MAIN #75

€ 10.50

30

99103KFL0420
ref: 30

JET COMP,#42X#42

€ 10.50

toutes les assemblages
