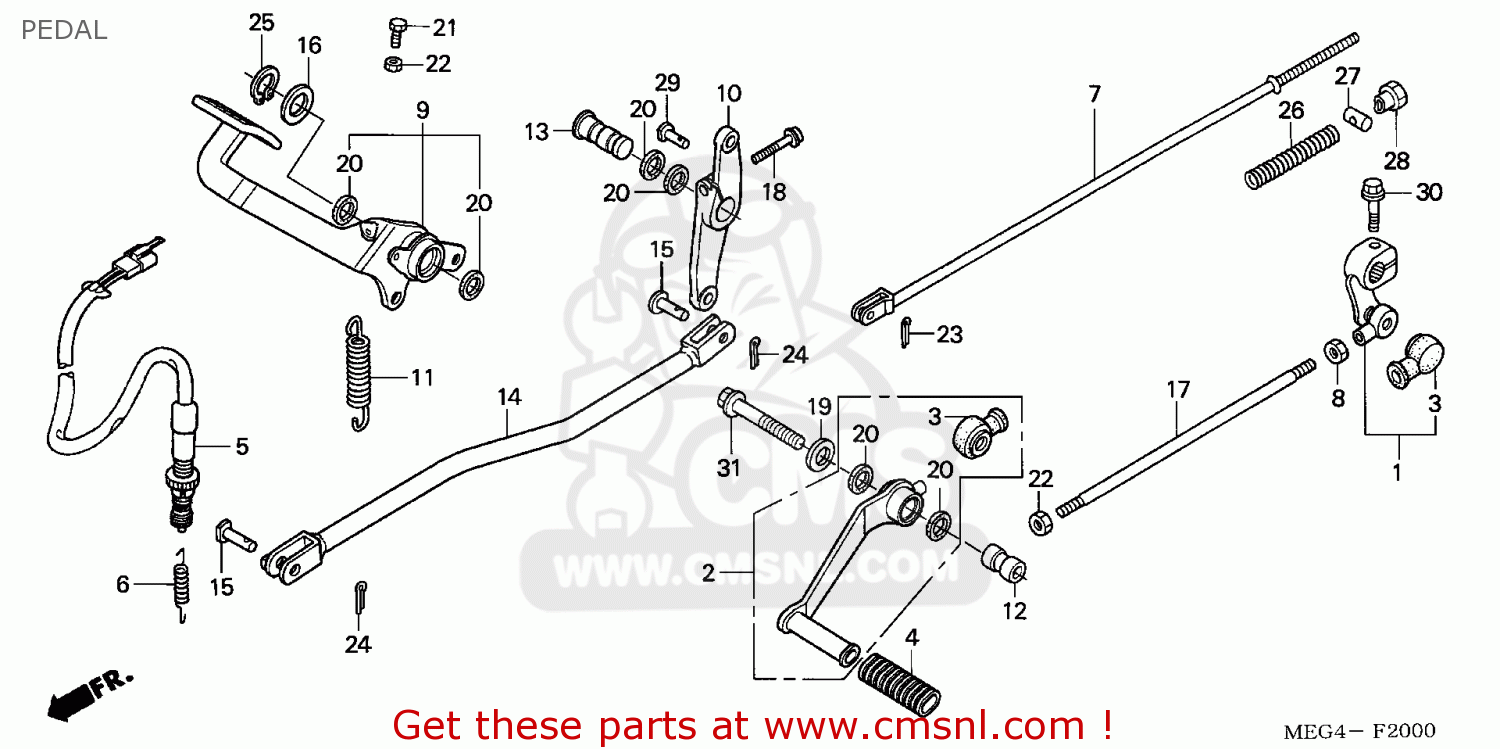

PEDAL

ref

pièce #

description

quantité

1

24702MEG000
ref: 1

ARM COMP,CHANGE

€ 67.00

2

24710MEG000
ref: 2

PEDAL COMP,CHANGE

€ 84.50

3

24724MBWD21
ref: 3

COVER,DUST

€ 9.50

4

24781371000
ref: 4

RUBBER,CHANGE

€ 5.00

5

35350MEG010
ref: 5

SW ASSY,REAR STOP

€ 29.50

6

35357KR3670
ref: 6

SPRING,STOP SW.

€ 5.00

7

43451MEG000
ref: 7

ROD COMP,RR BRK

€ 13.50

8

45423KA4700
ref: 8

NUT,HEX.,6MM

€ 3.50

9

46500MEG000
ref: 9

PEDAL ASSY,RR BRK

€ 96.50

10

46511MEG000
ref: 10

ARM,RR BRAKE MIDD

€ 54.00

11

46514KZ9000
ref: 11

SPRING,BRAKE PEDA

€ 4.00

12

46515MM8000
ref: 12

COLLAR,RR.BRAKE P

€ 6.00

13

46517MEG000
ref: 13

SHAFT,RR BRAKE PI

€ 20.00

14

46540MEG000
ref: 14

ROD,RR BRK MIDDLE

€ 53.00

15

46545MBA000
ref: 15

PIN,MID ROD JNT

€ 4.50

16

53312657000
ref: 16

BUSH,WASER

€ 6.50

17

90065MEG000
ref: 17

BOLT,TIE ROD

€ 12.00

18

90133MAT000
ref: 18

BOLT,FLANGE SOCKE

€ 5.50

19

90521427770
ref: 19

WASHER,10.3MM

€ 2.50

20

91206968003
ref: 20

SEAL,DUST 17X23X3

€ 5.50

21

92101060200A
ref: 21

BOLT,HEX.,6X20

€ 1.00

22

94002060000S
ref: 22

NUT,THIN 6MM

€ 1.00

23

9420120120
ref: 23

PIN,SPLIT2.0X12

€ 1.00

24

9420120150
ref: 24

PIN,COTTER 2.0X15

€ 1.00

25

9451115000
ref: 25

CIRCLIP,EX. 15MM

€ 1.00

26

9501473100
ref: 26

SPG.A,BRAKE ROD

€ 1.50

27

9501532001
ref: 27

JOINT, BRAKE ARM

€ 1.50

28

9501542000
ref: 28

NUT,ADJUST

€ 4.00

29

9501553000
ref: 29

PIN C,JOINT

€ 2.50

31

958011005000
ref: 31

BOLT,FLANGE,10X50

€ 2.00
