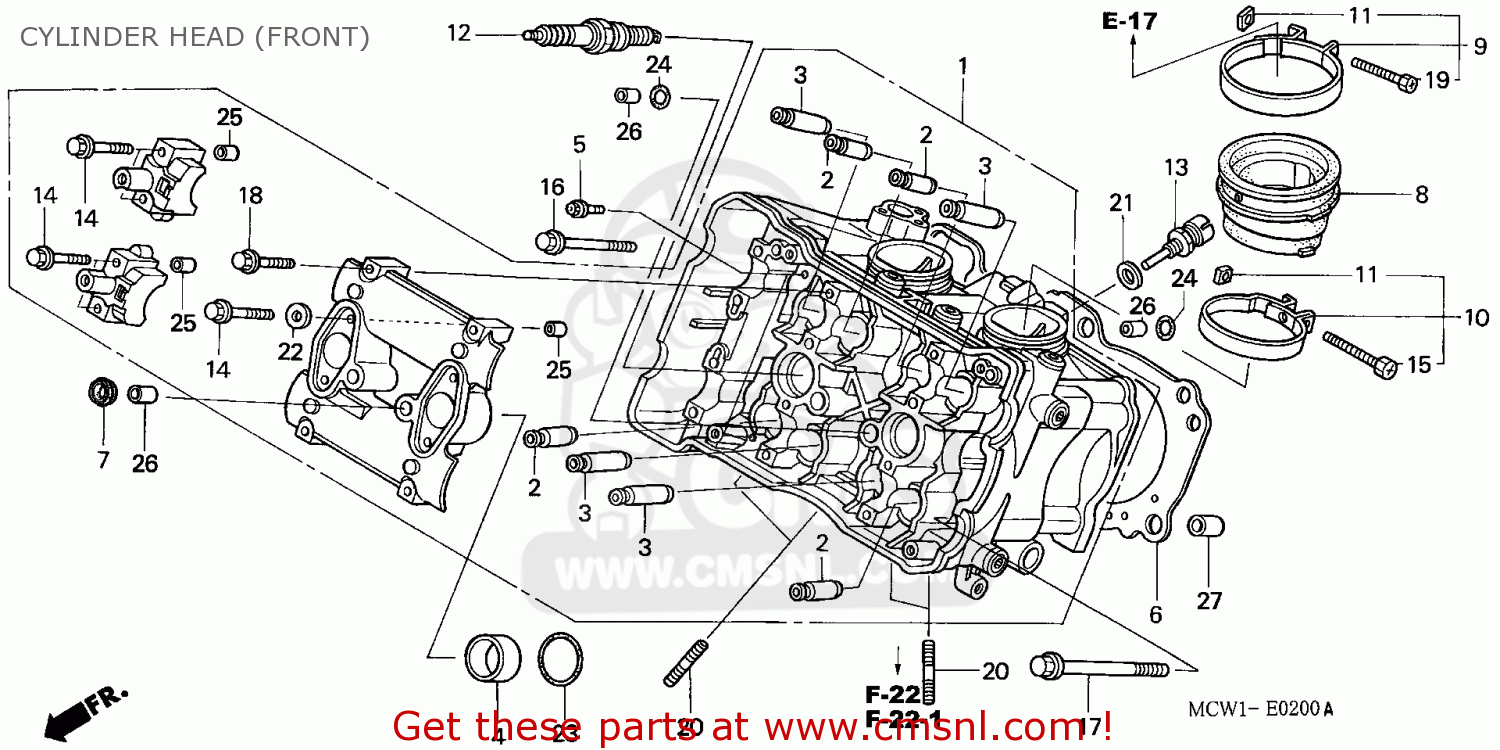

CYLINDER HEAD (FRONT)

ref

pièce #

description

quantité

1

12010MCW000
ref: 1

HEAD ASSY,FRONT

€ 1,380.00

2

12204MCW305
ref: 2

GUIDE,VALVE 0SZ

€ 18.50

3

12205MCW305
ref: 3

GUIDE,VALVE B OSZ

€ 20.00

4

12217MBG000
ref: 4

COLLAR,25MM

€ 9.00

5

12217MCE000
ref: 5

ORIFICE BOLT

€ 2.50

6

12251MCW003
ref: 6

GASKET,CYLINDER H (NAS)

€ 65.50

7

12396MBG000
ref: 7

GASKET C,HEAD COV (NAS)

€ 6.00

8

16211MCWD00
ref: 8

INSULATOR,THROT B

€ 22.00

9

16217MCW000
ref: 9

BAND,INSULATOR

€ 6.50

10

16218MCW000
ref: 10

BAND B,INSULATOR

€ 5.50

11

16222MV4300
ref: 11

NUT,SQUARE,5MM

€ 2.00

12

31912MCW003
ref: 12

SPARK PLUG,IMR9B-

€ 47.50

12

31922MCW004
ref: 12

SPARK-PLUG VNH27Z

€ 54.00

12

31911MCW003
ref: 12

SPARK PLUG,IMR8B-

€ 47.50

12

31921MCW004
ref: 12

SPARK-PLUG VNH24Z

€ 65.00

13

37870MBG003
ref: 13

SENSOR ASSY,TW

€ 66.00

14

90002MCW000
ref: 14

BOLT,FLANGE,6X45

€ 2.50

15

90005MM4000
ref: 15

BOLT,RECESSED,5X3

€ 2.50

16

90006GHB780
ref: 16

BOLT,FLANGE,NSHF,

€ 2.50

17

90007MCW000
ref: 17

BOLT,WASH 9X100

€ 5.00

18

90016KT7000
ref: 18

BOLT,FLANGE 6X37

€ 2.50

19

90023MM5000
ref: 19

BOLT,RECESSED,5X2

€ 2.00

20

90035MW4000
ref: 20

BOLT STUD,6X22

€ 2.50

21

90454MC7000
ref: 21

WASH,SPECIAL,12MM

€ 3.00

22

90463ML7000
ref: 22

WASHER,SEALING,6.

€ 5.50

23

91307PY4003
ref: 23

O RING,24.5X1.9

€ 3.50

24

91317P4V004
ref: 24

O-RING, 9.8X1.9

€ 2.50

27

9430112200
ref: 27

DOWEL,PIN,12X20

€ 2.00

toutes les assemblages
