HEADLIGHT

VF700F INTERCEPTOR 1984 (E) USA CALIFORNIA

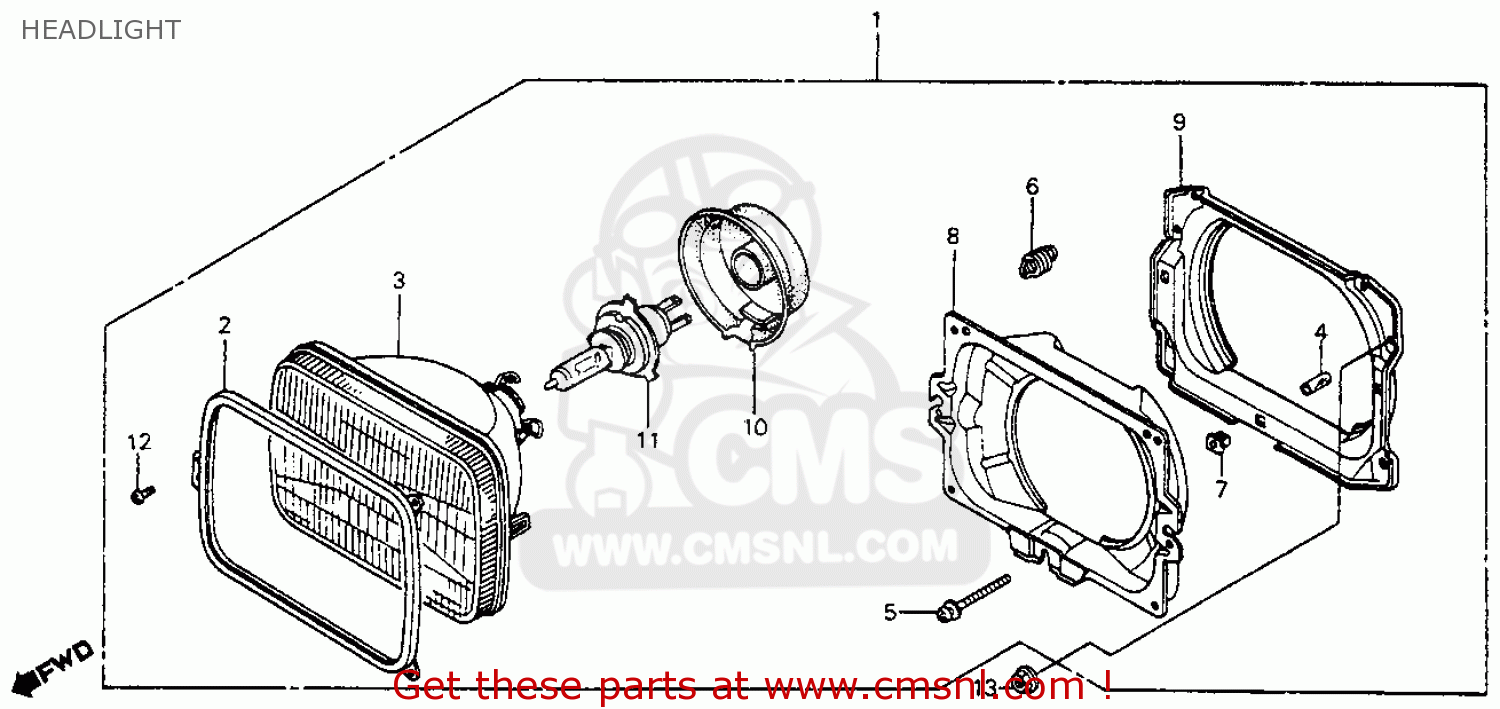

Headlight schéma VF700F INTERCEPTOR 1984 (E) USA CALIFORNIA

les prix sont en EUR

ref

pièce #

description

quantité

33100MB2671
ref: 1

HEAD LIGHT ASSY.

€ 298.50

33102692671
ref: 2

RING,RETAINING

€ 36.00

33120MB0771
ref: 3

HEADLIGHT UNIT

€ 116.50

33136MB2000
ref: 4

TUBE,SCREW

€ 2.50

33143692672
ref: 5

SCREW,ADJUSTER

€ 7.50

33144692671
ref: 6

SPRING,ADJUST

€ 5.00

33145657671
ref: 7

NUT NYLON CAP

€ 6.00

33153MB2671
ref: 8

RING, MOUNTING (1)

€ 46.00

33154MB2671
ref: 9

MOUNTING RING (2)

€ 40.50

33112MM9013
ref: 10

COVER RUBBER

€ 14.00

33180MC5003
ref: 10

COVER,RUBBER

€ 14.00

34901MC7601
ref: 11

BULB,HEADLIGHT

€ 45.00

34901MC7601AH
ref: 11

BULB (12V60/55W)

€ 7.00

90162692003
ref: 12

SCREW,TAPPING 4X8

€ 4.50

90162692013
ref: 12

SCREW PAN,4X8

€ 4.50

9405006080
ref: 13

NUT,FLANGE,6MM

€ 1.00
