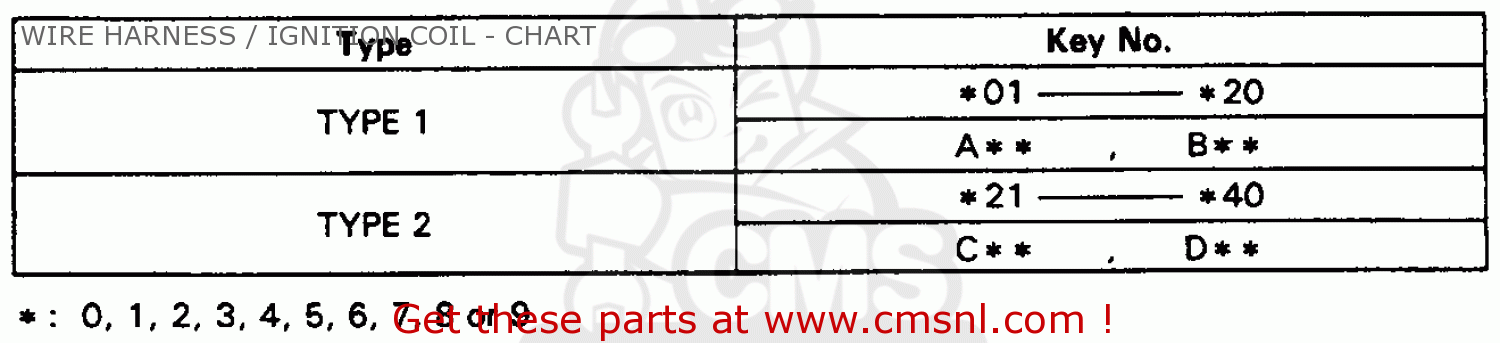

WIRE HARNESS / IGNITION COIL - CHART

CT110 TRAIL 1983 (D) USA

Wire harness / ignition coil - chart schéma CT110 TRAIL 1983 (D) USA

WIRE HARNESS / IGNITION COIL - CHART CT110 TRAIL 1983 (D) USA
WIRE HARNESS / IGNITION COIL - CHART CT110 TRAIL 1983 (D) USA
les prix sont en EUR
ref
pièce #
description
quantité
1
30500459750
ref: 1
A
COIL,IGNITION
30500459750
€ 147.00
3
30700098153
ref: 3
A
CAP,SUPPRESSOR
30700098153
€ 18.00
3
30700098163
ref: 3
A
CAP ASSY NOISE SU
30700098163
€ 18.00
6
31701459751
ref: 6
A
RECTIFIER
€ 74.50
7
31702459750
ref: 7
A
STAY, RECTIFIER
€ 9.00
9
32100459752
ref: 9
A
HARNESS,WIRE
€ 106.00
11
32105152670
ref: 11
A
SUB-WIRE A
32105152670
€ 4.00
12
32108003000
ref: 12
A
WIRE HARN.COVER
32108003000
€ 6.00
13
32108115000
ref: 13
A
COVER, CONNECTOR
32108115000
€ 8.00
14
32161399000
ref: 14
A
BAND,WIRE
32161399000
€ 5.00
15
32983459670
ref: 15
A
GROMMET,M.SWITCH
32983459670
€ 2.50
16
35010459730
ref: 16
A
KEY.SET
€ 104.00
17
35100459753
ref: 17
A
SW.ASSY.,COMB
€ 38.00
17
35100459752
ref: 17
A
SW,COMBINATION
€ 38.00
18
35121086811
ref: 18
A
KEY NO.1,BLANK
35121086811
€ 10.50
19
92000060350H
ref: 19
A
BOLT,HEX.,6X35
€ 1.00
19
92101060350H
ref: 19
A
BOLT,HEX.,6X35
92101060350H
€ 1.00
20
934020601208
ref: 20
A
BOLT-WASH.,6X12
934020601208
€ 1.50
20
934120601208
ref: 20
A
BOLT-WASH.,6X12
934120601208
€ 1.50
20
934920601208
ref: 20
A
BOLT WASH 6X12
934920601208
€ 1.50
22
9407006080
ref: 22
A
NUT-WASH.,6MM
9407006080
€ 1.00
23
9411106800
ref: 23
A
SPG/WASHER,6MM
9411106800
€ 0.50
