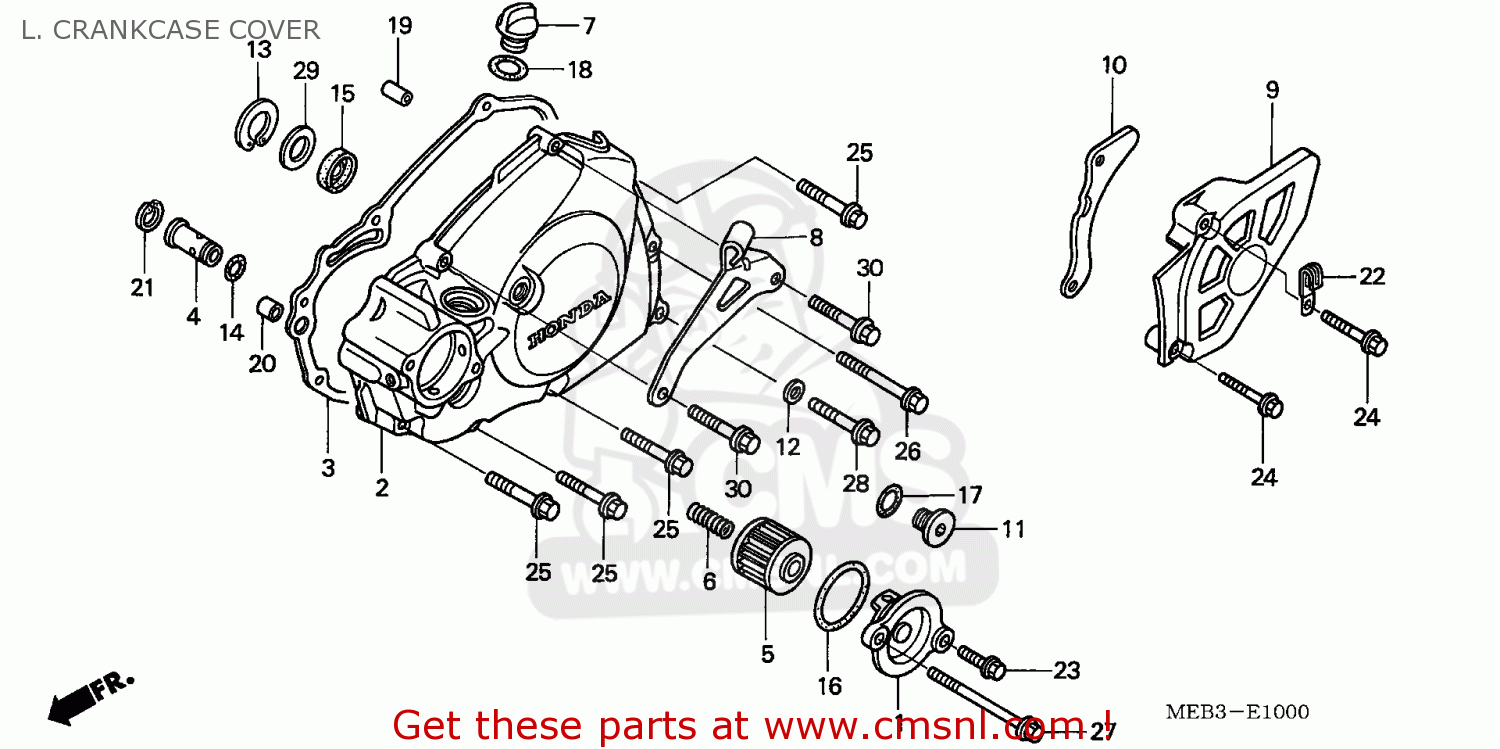

L. CRANKCASE COVER

ref

pièce #

description

quantité

1

11333MEB670
ref: 1

COVER,OIL FILTER

€ 35.00

2

11340MEB670
ref: 2

COVER COMP,L CRAN

€ 184.50

3

11395MEB670
ref: 3

GASKET,L COVER (NAS)

€ 12.50

4

15220MEB670
ref: 4

VALVE ASSY,RELIEF

€ 27.50

5

15412MEB671
ref: 5

FILTER COMP,ENGIN

€ 17.50

6

15414MEB670
ref: 6

SPG,OIL FILTER

€ 4.50

7

15611KA4710
ref: 7

CAP,OIL FILLER

€ 12.50

8

22838MEB670
ref: 8

RECEIVER,CLUTCH C

€ 9.50

9

23810MEB670
ref: 9

COVER COMP,DRIVE

€ 23.00

10

23812MEB670
ref: 10

GUIDE,DRIVE CHAIN

€ 10.00

11

90084MN8010
ref: 11

CAP,14MM

€ 11.00

12

90474333000
ref: 12

WASHER,8MM

€ 2.00

13

90602MEB670
ref: 13

CIRCLIP,IN 24MM S

€ 4.00

14

90751GK1003
ref: 14

O RING 8.5X1.7

€ 2.50

15

91204MEB671
ref: 15

OIL SEAL,10X21X5

€ 6.00

16

91302PA9003
ref: 16

O-RING, 39.8X2.2

€ 5.50

17

91303377000
ref: 17

O-RING,13.8X2.5

€ 4.50

18

91307035000
ref: 18

ORING 183

€ 2.00

21

9452014000
ref: 21

CIRCLIP IN 14MM

€ 1.00

22

90601KJ9000
ref: 22

CLIP,4X50

€ 3.00

23

960010601600
ref: 23

BOLT,FLANGE,SH,6X16

€ 1.00

24

960010603007
ref: 24

BOLT,FLANGE SH 6X

€ 1.50

25

960010603200
ref: 25

BOLT,FLANGE,6X32

€ 2.00

26

960010604000
ref: 26

BOLT,FLANGE,SH,6X40

€ 1.50

27

960010607500
ref: 27

BOLT,FLANGE,6X75

€ 1.50

28

963000803500
ref: 28

BOLT,FLANGE,DR,8X

€ 1.50

29

90451459770
ref: 29

WASH,THRUST 13MM

€ 2.50

30

960010603200
ref: 30

BOLT,FLANGE,6X32

€ 2.00

toutes les assemblages
