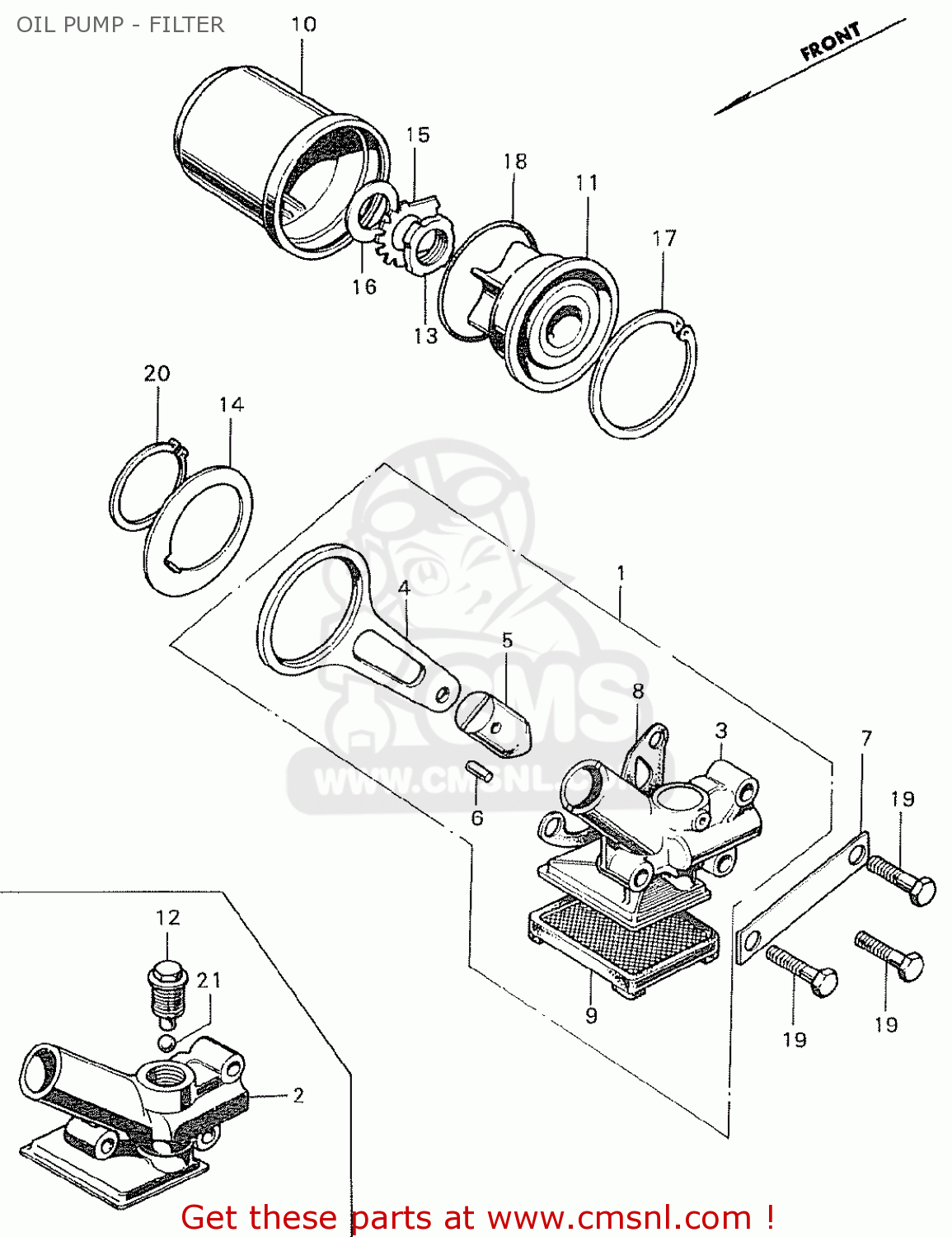

OIL PUMP - FILTER - CL350 SCRAMBLER K0 GERMANY

ref

pièce #

description

quantité

1

15200286010
ref: 1
1071719

PUMP ASSY,OIL

€ 147.00

1

15200286020
ref: 1
1071720
1131275

PUMP ASSY,OIL

€ 155.50

2

15201286030
ref: 2
1071719

BODY, OIL PUMP

€ 175.00

3

15201286040
ref: 3
1071720
1131275

BODY,COMP.,PUMP

€ 216.00

4

15205286020
ref: 4

ROD,OIL PUMP

€ 47.50

5

15209286000
ref: 5
1071719

PLUNGER,OIL PUMP

€ 31.00

5

15209286010
ref: 5
1071720

PLUNGER OIL PUMP

€ 34.00

6

15210283000
ref: 6
1071719

PIN PUMP PLUNGER

€ 4.50

6

15210286000
ref: 6
1071720

PIN PUMP PLUNGER

€ 5.00

7

15281286000
ref: 7

WASHER,PUMP LOCK

€ 7.00

8

15291286300
ref: 8

GASKET,OIL PUMP (NAS)

€ 4.50

9

15421286010
ref: 9

SCREEN,OIL FILTER

€ 22.50

10

15441286040
ref: 10

ROTER,OIL FILTER

€ 46.00

11

15450286010
ref: 11

CAP,OIL FILTER

€ 34.00

12

90013286000
ref: 12
1071719

BOLT, SUCTION VALVE

€ 4.50

13

90231200010
ref: 13

NUT, LOCK, 16M/M

€ 4.50

14

90404286010
ref: 14

WASHER,RUMP ROD

€ 3.00

15

90431292000
ref: 15

WASHER,LOCK 16M/M

€ 3.50

16

90481292000
ref: 16

WASHER,16 MM FILTER LOCK

€ 8.50

17

90604292000
ref: 17

CLIP,CIR 45M/M

€ 5.50

18

91309286000
ref: 18

O RING,41X2

€ 9.00

19

9200006032
ref: 19

BOLT,HEX 6X32

€ 1.00

20

9451032000
ref: 20

CIR CLIP, 32MM

€ 2.00

21

9621110000
ref: 21
1071719

BALL,STEEL.,10

€ 1.00

OIL PUMP - FILTER

toutes les assemblages
