STAND

CBR900RR FIREBLADE 1998 (W) BRAZIL / KPH

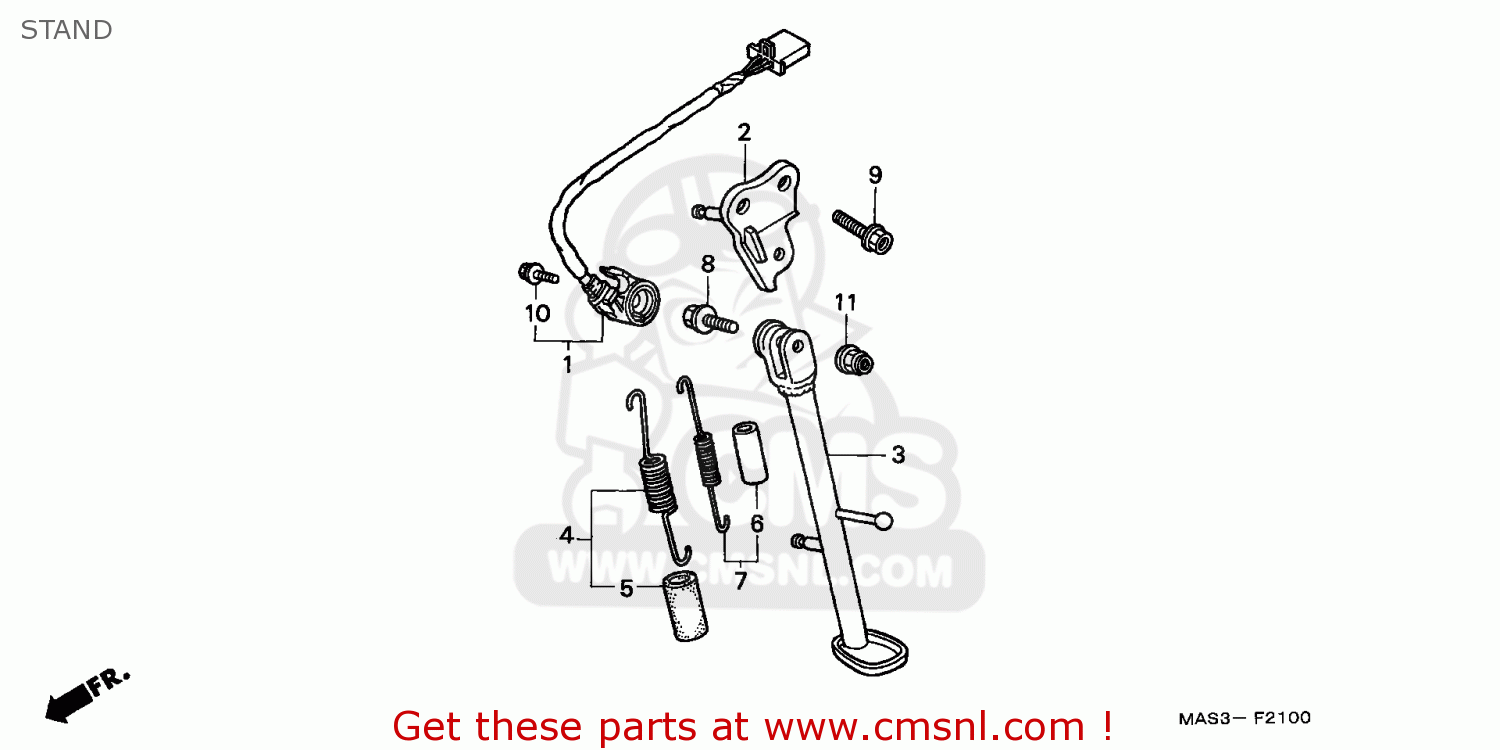

Stand schéma CBR900RR FIREBLADE 1998 (W) BRAZIL / KPH

STAND CBR900RR FIREBLADE 1998 (W) BRAZIL / KPH
STAND CBR900RR FIREBLADE 1998 (W) BRAZIL / KPH
les prix sont en EUR
ref
pièce #
description
quantité
1
35700MV9305
ref: 1
SET,SIDE STAND SW
35700MV9305
€ 76.50
2
50150MW0000
ref: 2
BRKT.SIDE STAND
50150MW0000
€ 53.50
3
50530MAS000
ref: 3
BAR COMP,SIDE STA
€ 102.50
4
50540MW0000
ref: 4
SPRING ASSY,SIDE
50540MW0000
€ 8.50
5
50543MT3611
ref: 5
TUBE,SIDE STAND S
50543MT3611
€ 5.50
8
90108MK6670
ref: 8
BOLT,SIDE STAND P
90108MK6670
€ 7.00
9
90133MR8000
ref: 9
BOLT,FLANGE,10X32
90133MR8000
€ 3.50
10
90147MK6671
ref: 10
BOLT,SPECIAL 6X16
90147MK6671
€ 4.00
11
90203MF9710
ref: 11
NUT,SIDE STAND
90203MF9710
€ 4.50
