REAR CUSHION

C95 BENLY GENERAL EXPORT (1320003)

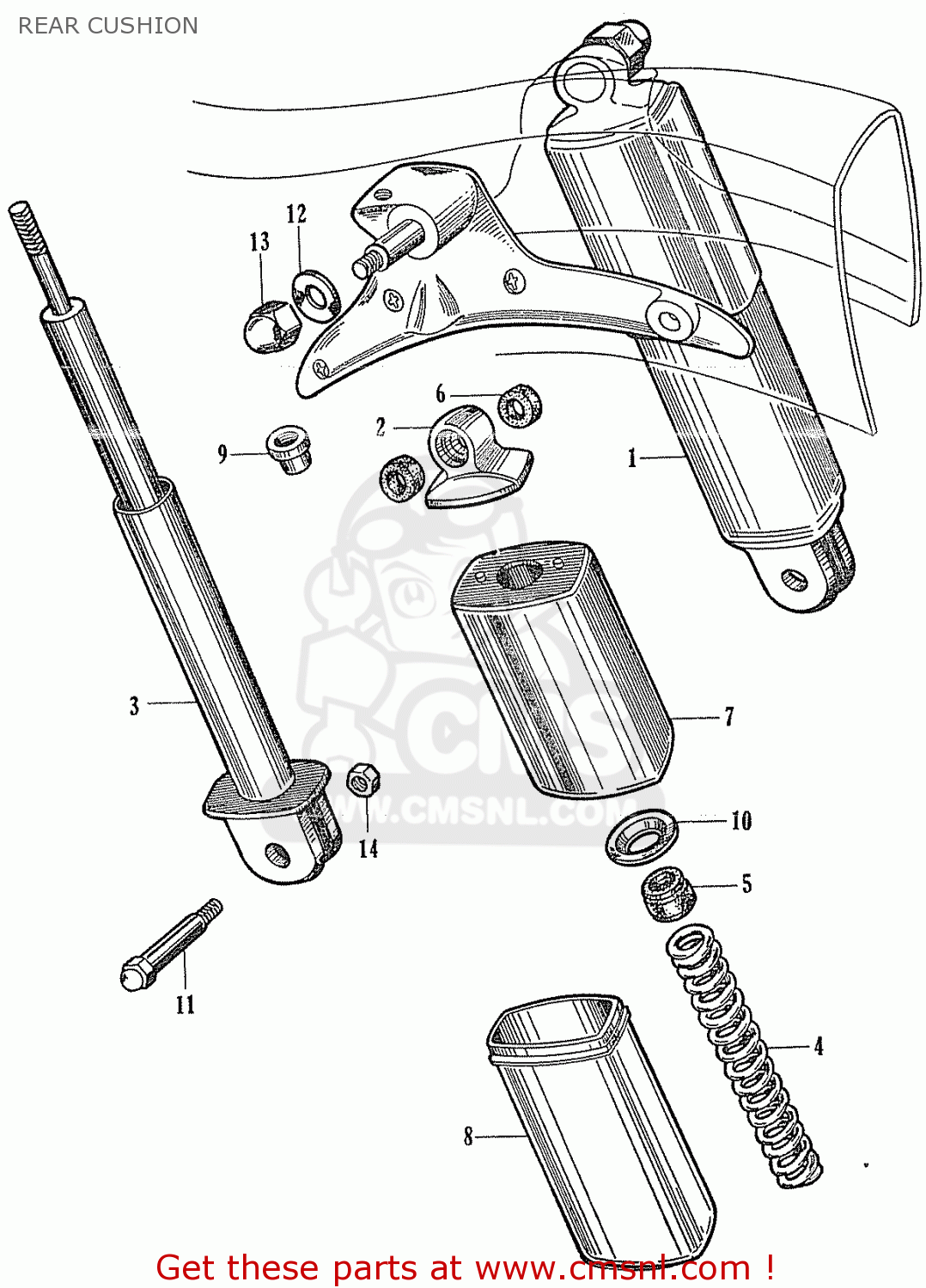

Rear cushion schéma C95 BENLY GENERAL EXPORT (1320003)

REAR CUSHION C95 BENLY GENERAL EXPORT (1320003)
REAR CUSHION C95 BENLY GENERAL EXPORT (1320003)
les prix sont en EUR
ref
pièce #
description
quantité
1
52400212810B
ref: 1
C95F-1400740
C95F-0120001
CUSHION ASSY
52400212810B
€ 260.00
1
52400212810B
ref: 1
C95F-3033319
C95F-2500001
CUSHION ASSY
52400212810B
€ 260.00
1
52400212810B
ref: 1
C95F-2600001
CUSHION ASSY
52400212810B
€ 260.00
1
52400212810E
ref: 1
C95F-1400740
C95F-0120001
CUSHION ASSY
€ 175.00
1
52400212810E
ref: 1
C95F-3033319
C95F-2500001
CUSHION ASSY
€ 175.00
1
52400212810E
ref: 1
C95F-2600001
CUSHION ASSY
€ 175.00
1
52400212810C
ref: 1
C95F-1400740
C95F-0120001
CUSHION ASSY
€ 256.00
1
52400212810C
ref: 1
C95F-3033319
C95F-2500001
CUSHION ASSY
€ 256.00
1
52400212810C
ref: 1
C95F-2600001
CUSHION ASSY
€ 256.00
2
52403250030
ref: 2
C95F-1400740
C95F-0120001
METAL CUSHION
52403250030
€ 27.50
2
52403250030
ref: 2
C95F-3033319
C95F-2500001
METAL CUSHION
52403250030
€ 27.50
2
52403250030
ref: 2
C95F-2600001
METAL CUSHION
52403250030
€ 27.50
3
52437200040
ref: 3
C95F-1400740
C95F-0120001
METAL CUSHION
€ 72.50
3
52437200040
ref: 3
C95F-3000300
C95F-2500001
METAL CUSHION
€ 72.50
3
52437200040
ref: 3
C95F-2600001
METAL CUSHION
€ 72.50
3
52437200050
ref: 3
C95F-3033319
C95F-3000301
METAL CUSHION
€ 72.50
4
52407200010
ref: 4
C95F-1400740
C95F-0120001
SPRING CUSHION
52407200010
€ 68.00
4
52407200010
ref: 4
C95F-3033319
C95F-2500001
SPRING CUSHION
52407200010
€ 68.00
4
52407200010
ref: 4
C95F-2600001
SPRING CUSHION
52407200010
€ 68.00
5
52413250010
ref: 5
C95F-1400740
C95F-0120001
RUBBER CUSHION
€ 2.00
5
52413250010
ref: 5
C95F-3033319
C95F-2500001
RUBBER CUSHION
€ 2.00
5
52413250010
ref: 5
C95F-2600001
RUBBER CUSHION
€ 2.00
6
52442250000
ref: 6
C95F-1400740
C95F-0120001
BUSH CUSHION
52442250000
€ 9.00
6
52442250000
ref: 6
C95F-3033319
C95F-2500001
BUSH CUSHION
52442250000
€ 9.00
6
52442250000
ref: 6
C95F-2600001
BUSH CUSHION
52442250000
€ 9.00
7
52523250060B
ref: 7
C95F-1400740
C95F-0120001
CASE CUSHION
52523250060B
€ 60.00
7
52523250060B
ref: 7
C95F-3033319
C95F-2500001
CASE CUSHION
52523250060B
€ 60.00
7
52523250060B
ref: 7
C95F-2600001
CASE CUSHION
52523250060B
€ 60.00
7
52523250060E
ref: 7
C95F-1400740
C95F-0120001
CASE CUSHION
€ 35.00
7
52523250060E
ref: 7
C95F-3033319
C95F-2500001
CASE CUSHION
€ 35.00
7
52523250060E
ref: 7
C95F-2600001
CASE CUSHION
€ 35.00
7
52523250060C
ref: 7
C95F-1400740
C95F-0120001
CASE CUSHION
52523250060C
€ 60.00
7
52523250060C
ref: 7
C95F-3033319
C95F-2500001
CASE CUSHION
52523250060C
€ 60.00
7
52523250060C
ref: 7
C95F-2600001
CASE CUSHION
52523250060C
€ 60.00
7
52523250060Z
ref: 7
C95F-1400740
C95F-0120001
CASE, UP. CUSHION
52523250060Z
€ 35.00
7
52523250060Z
ref: 7
C95F-3033319
C95F-2500001
CASE, UP. CUSHION
52523250060Z
€ 35.00
7
52523250060Z
ref: 7
C95F-2600001
CASE, UP. CUSHION
52523250060Z
€ 35.00
8
52525250040
ref: 8
C95F-1400740
C95F-0120001
CASE CUSHION
52525250040
€ 39.00
8
52525250040
ref: 8
C95F-3033319
C95F-2500001
CASE CUSHION
52525250040
€ 39.00
8
52525250040
ref: 8
C95F-2600001
CASE CUSHION
52525250040
€ 39.00
9
52421250000
ref: 9
C95F-1400740
C95F-0120001
NUT CUSHION
52421250000
€ 13.00
9
52421250000
ref: 9
C95F-3033319
C95F-2500001
NUT CUSHION
52421250000
€ 13.00
9
52421250000
ref: 9
C95F-2600001
NUT CUSHION
52421250000
€ 13.00
10
52408250000
ref: 10
C95F-1400740
C95F-0120001
SEAT SPRING
52408250000
€ 3.00
10
52408250000
ref: 10
C95F-3033319
C95F-2500001
SEAT SPRING
52408250000
€ 3.00
10
52408250000
ref: 10
C95F-2600001
SEAT SPRING
52408250000
€ 3.00
11
90107200010
ref: 11
C95F-1400740
C95F-0120001
BOLT CUSHION
90107200010
€ 4.50
11
90107200010
ref: 11
C95F-3033319
C95F-2500001
BOLT CUSHION
90107200010
€ 4.50
11
90107200010
ref: 11
C95F-2600001
BOLT CUSHION
90107200010
€ 4.50
12
90527200000
ref: 12
C95F-1400740
C95F-0120001
WASHER 10.3MM
90527200000
€ 3.00
12
90527200000
ref: 12
C95F-3033319
C95F-2500001
WASHER 10.3MM
90527200000
€ 3.00
12
90527200000
ref: 12
C95F-2600001
WASHER 10.3MM
90527200000
€ 3.00
13
9402110020
ref: 13
NUT, BLIND, 10M/M
9402110020
€ 2.50
14
9400110000
ref: 14
NUT.HEX 10MM
9400110000
€ 0.50
14
52142202000
ref: 14
C95F-1400740
C95F-0120001
COLLAR REAR FORK
€ 5.50
14
52142202000
ref: 14
C95F-3033319
C95F-2500001
COLLAR REAR FORK
€ 5.50
14
52142202000
ref: 14
C95F-2600001
COLLAR REAR FORK
€ 5.50
