HEADLIGHT (TRX450R6,7,8/ER6,7,8)

TRX450R FOURTRAX 2007 (7) AUSTRALIA

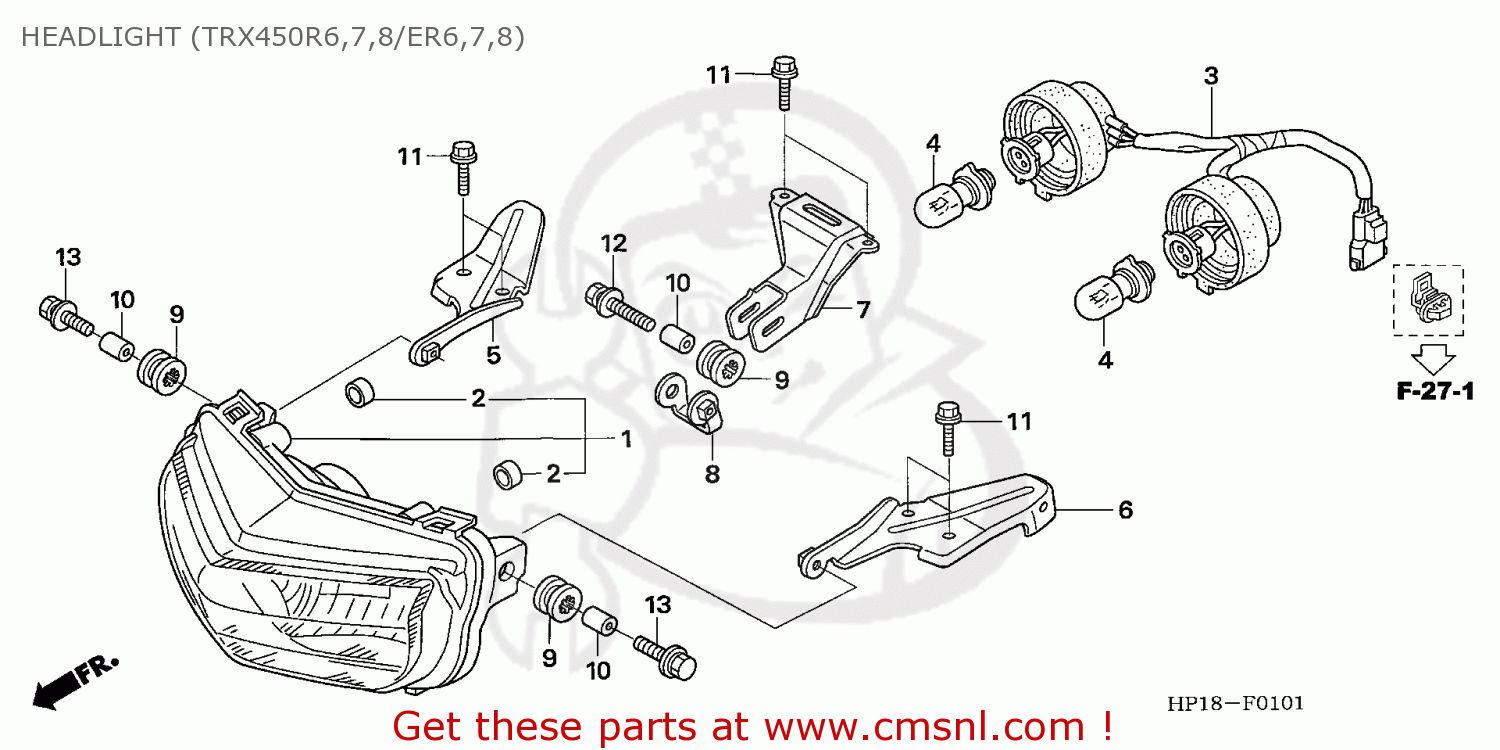

Headlight (trx450r6,7,8/er6,7,8) schéma TRX450R FOURTRAX 2007 (7) AUSTRALIA

les prix sont en EUR

ref

pièce #

description

quantité

33110HP1600
ref: 1

UNIT COMP.HEAD LI

€ 281.50

33113MBWD21
ref: 2

PIPE CP

€ 4.00

33130HP1600
ref: 3

SOCKET COMP.,HEAD

€ 76.50

34901GT4003
ref: 4

BULB,HEAD LIGHT

€ 16.50

61105HP1600
ref: 5

STAY,R HEAD LIGHT

€ 14.00

61106HP1600
ref: 6

STAY,L HEAD LIGHT

€ 14.00

61108HP1600
ref: 7

STAY,HD/LT LWR

€ 8.50

61109HP1600
ref: 8

PLATE,HD/LT LWR

€ 4.00

80116MR1000
ref: 9

RUBBER B,RR COWL

€ 2.50

84706HP1600
ref: 10

COLLAR,H/L MT

€ 2.00

90004GHB610
ref: 11

BOLT,FLANGE,NSHF,

€ 3.00

90004GHB670
ref: 12

BOLT,FLANGE,NSHF,

€ 2.00

934040602508
ref: 13

BOLT-WASH.,6X25

€ 1.50
