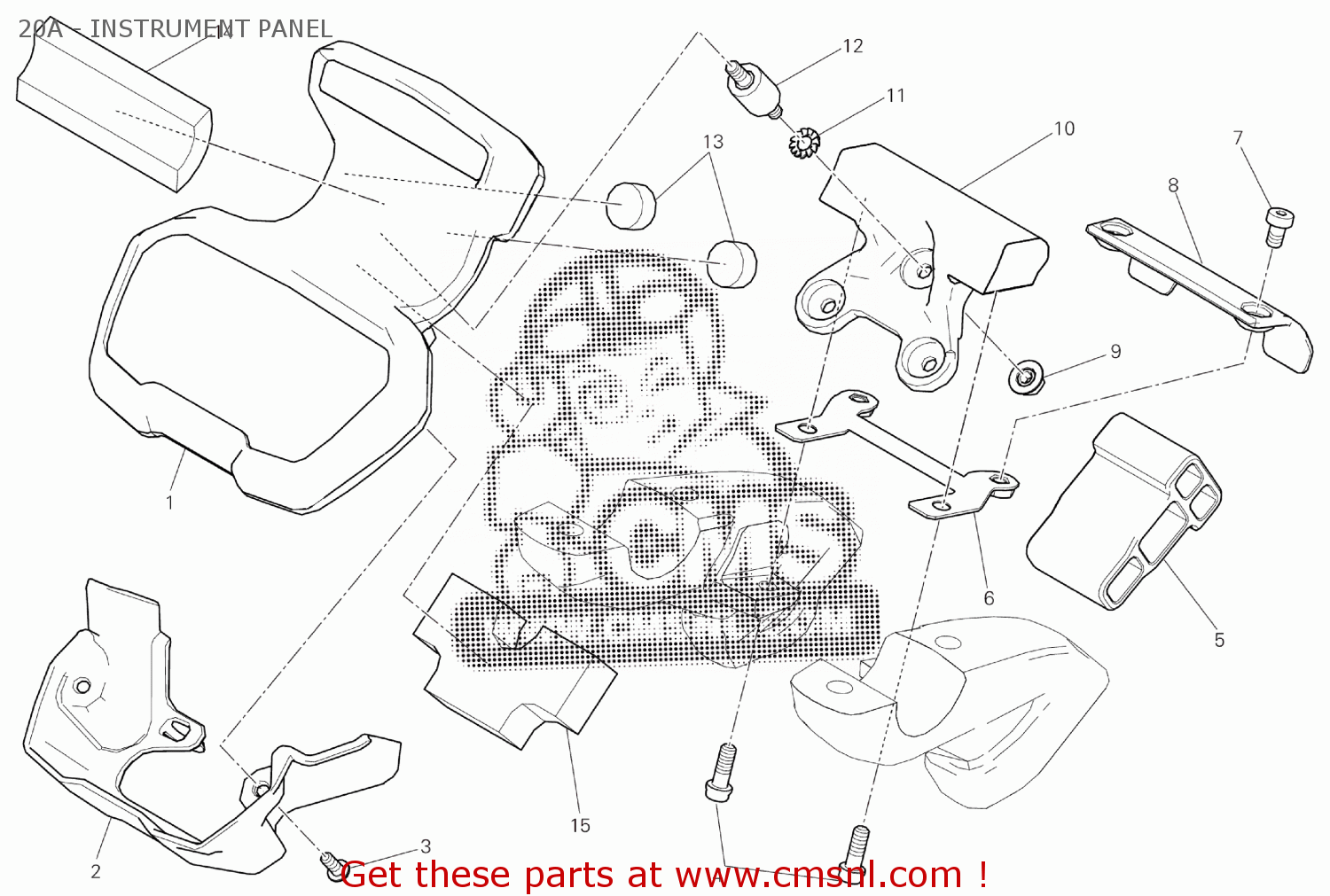

20A - INSTRUMENT PANEL

XDIAVEL 2017 USA (XDIAVEL) D240-00017

20a - instrument panel schéma XDIAVEL 2017 USA (XDIAVEL) D240-00017

les prix sont en EUR

ref

pièce #

description

quantité

40611363B
ref: 1

INSTRUMENT PANEL

€ 770.50

4601D591A
ref: 2

COVER, METER

€ 12.00

72050033C
ref: 3

SCREW

€ 1.00

77156408B
ref: 4

SCREW TCEIF M5X14

€ 1.00

86612251A
ref: 5

BRACKET, CONNECTOR

€ 4.00

8301E341AA
ref: 6

BRACKET

€ 13.50

77350373B
ref: 7

SCREW

€ 1.00

4601E041A
ref: 8

COVER

€ 12.00

74840381A
ref: 9

NUT M5

€ 1.00

36011891BA
ref: 10

HOLDER

€ 58.00

46240461A
ref: 11

WASHER, SPRING

€ 1.00

70010901A
ref: 12

VIBRATION DAMPER

€ 5.50

70011011A
ref: 13

VIBRATION DAMPER

€ 2.00

70011021A
ref: 14

VIBRATION DAMPER

€ 4.00

70011031A
ref: 15

VIBRATION DAMPER

€ 4.00
