010 - HALF-CRANKCASES PAIR - SUPERBIKE 2014 USA (SUPERBIKE 1199 PANIGALE S ABS) D150-00014

ref

pièce #

description

quantité

1

77510311B
ref: 1

SCREW TBEI M5X10

€ 4.50

2

87511791C
ref: 2

HOSE, OIL

€ 35.50

3

88650131A
ref: 3

O-RING 3.68X1.78

€ 1.00

4

82010141A
ref: 4

STARTER REDUCTION SHAFT

€ 11.50

5

86050371A
ref: 5

PIN

€ 5.50

6

76610781A
ref: 6

STUD BOLT FASTENING HEAD CYLINDER

€ 5.50

7

70240131A
ref: 7

BEARING

€ 82.50

8

735034405
ref: 8

SNAP RING

€ 2.00

9

78010871A
ref: 9

THREADED DOWEL

€ 2.00

10

86050061A
ref: 10

PIN M5X10

€ 2.00

11

70240251B
ref: 11

BEARING

€ 19.50

12

70241091A
ref: 12

BEARING, NEEDLE

€ 90.50

13

93040431A
ref: 13

SEAL, OIL 40X55X7

€ 36.00

14

71240231A
ref: 14

BUSH

€ 3.00

15

71113181A
ref: 15

LOCAT. DOWEL

€ 5.50

16

735033804
ref: 16

CIRCLIP

€ 1.00

17

70250411A
ref: 17

BEARING 25X42X9

€ 10.50

18

87511651BB
ref: 18

JET RH

€ 27.00

19

78010861A
ref: 19

SPECIAL SCREW

€ 2.00

20

84740061A
ref: 20

BALL

€ 1.00

21

83110151A
ref: 21

PLATE

€ 5.50

22

79940121A
ref: 22

SPRING

€ 11.50

23

81413421B
ref: 23

UNION RETURN

€ 9.00

24

88641961A
ref: 24

O-RING

€ 1.00

25

76610801A
ref: 25

STUD BOLT FASTENING HEAD CYLINDER

€ 4.00

26

78010801A
ref: 26

PLUG

€ 7.00

27

85250491A
ref: 27

WASHER

€ 2.00

28

77927171A
ref: 28

SCREW

€ 9.00

29

74710151A
ref: 29

NUT

€ 1.00

30

93041771A
ref: 30

SEAL RING

€ 10.00

31

93040931A
ref: 31

SEAL, OIL 17X25X4

€ 4.50

32

87310021A
ref: 32

PLUG 10 MM

€ 6.00

33

78010771A
ref: 33

THREADED DOWEL

€ 2.00

34

87511641BB
ref: 34

JET LH

€ 27.00

35

22522606B
ref: 35
CAL,CDN

COMPLETE HALF-CRANKCASES PAIR

€ 3,252.00

36

77240398C
ref: 36

SCREW TBEIF M6X10

€ 1.00

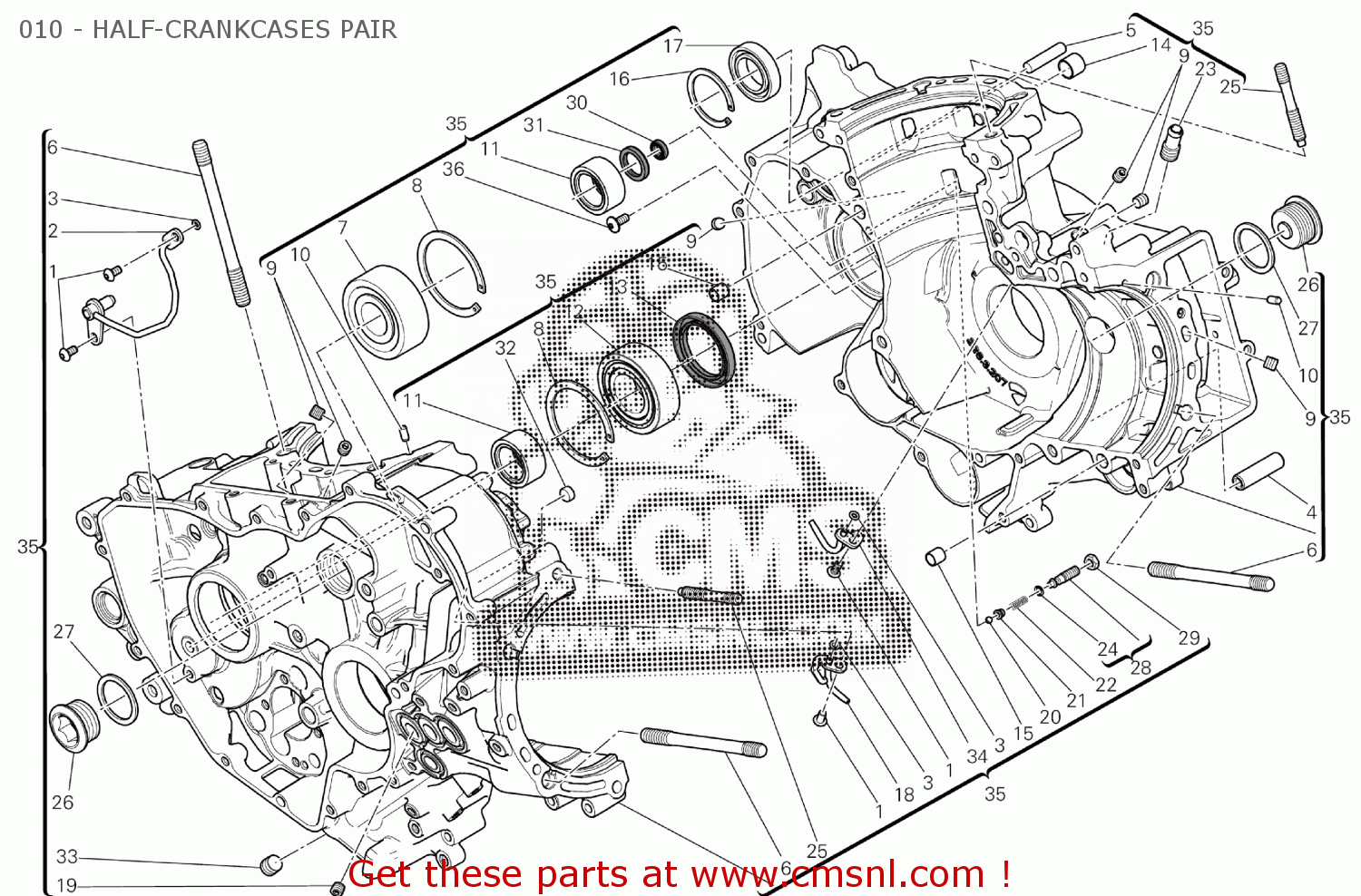

010 - HALF-CRANKCASES PAIR
