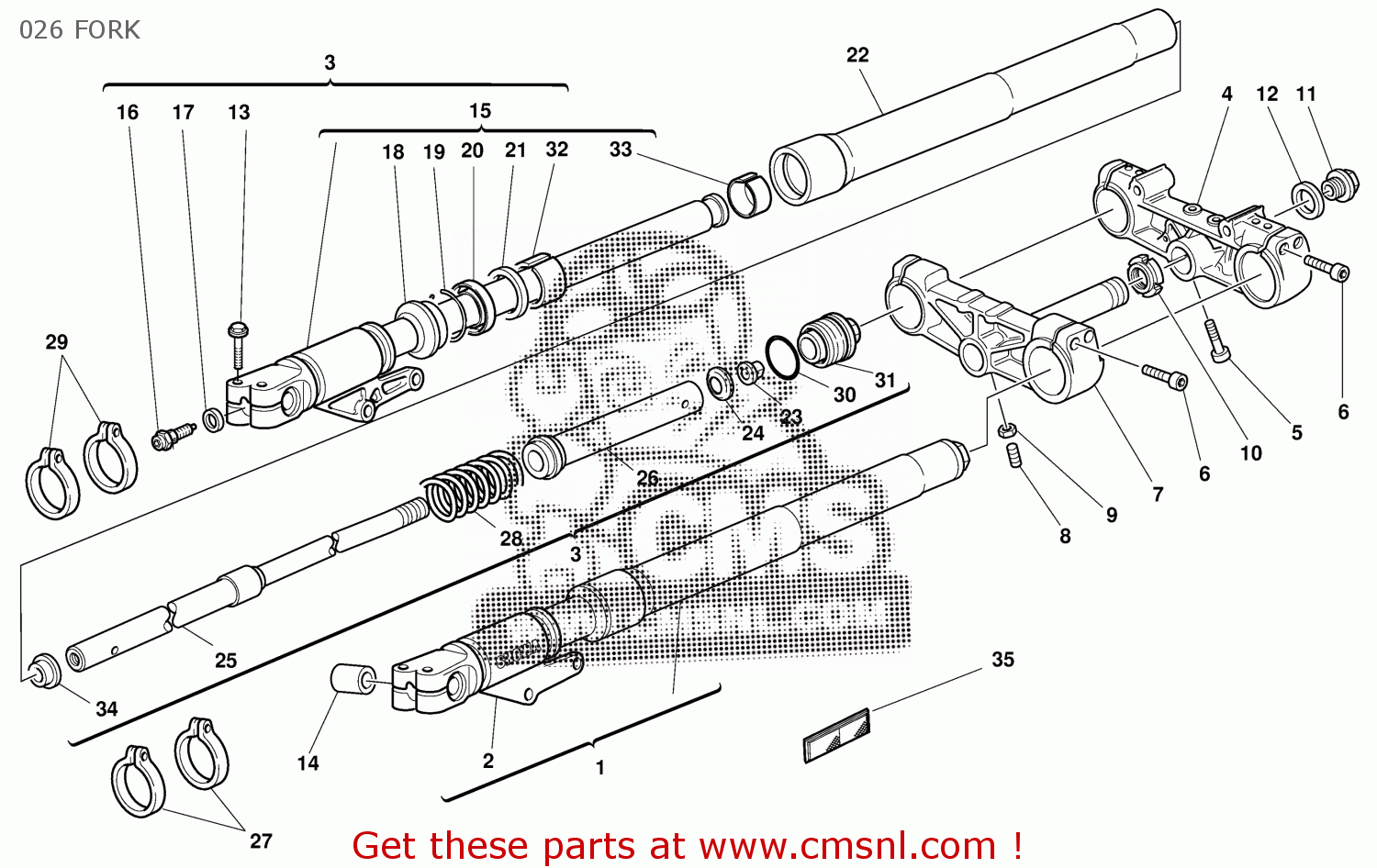

026 FORK

ref

pièce #

description

quantité

1

34021121A
ref: 1

FORK LEG ASSY, LEFT

€ 917.00

2

34911301A
ref: 2

COMPLETE LEFT SLIDER

€ 402.00

3

34021111A
ref: 3

FORK LEG ASSY, RIGHT

€ 917.00

4

34110171B
ref: 4

STEERING HEAD

€ 437.00

5

77950121A
ref: 5

SCREW 8X30

€ 2.00

6

60N102557
ref: 6

SCREW TCEI M8X1.25X30

€ 1.00

7

34290131A
ref: 7

STEERING CROWN WITH PIN

€ 305.00

8

77910991A
ref: 8

SCREW, SPECIAL

€ 2.00

9

41790308A
ref: 9

NUT

€ 1.00

10

079537120
ref: 10

RING NUT

€ 22.00

11

87310161C
ref: 11

PLUG

€ 7.00

12

85610301A
ref: 12

WASHER

€ 3.00

13

60N102558
ref: 13

SCREW TCEI M8X1.25X35

€ 1.00

14

71110331A
ref: 14

WHEEL SPINDLE BUSH

€ 32.00

15

34911291A
ref: 15

COMPLETE RIGHT SLIDER

€ 504.00

16

34911241A
ref: 16

SCREW

€ 5.50

17

34910761A
ref: 17

WASHER

€ 2.00

18

34911011A
ref: 18

DUST COVER

€ 20.50

19

88410051A
ref: 19

SPRING RING

€ 2.00

20

93010051A
ref: 20

SEAL OIL, FORK

€ 17.50

21

34911021A
ref: 21

STOP RING

€ 4.50

22

34911311A
ref: 22

FORK OUTER TUBE

€ 420.00

23

34911281A
ref: 23

NUT

€ 4.50

24

34910791A
ref: 24

SPRING SEAT STOP

€ 4.00

25

34911321A
ref: 25

DAMPER PIPE

€ 276.50

26

34911331A
ref: 26

SPRING COLLAR

€ 15.00

27

74110211A
ref: 27

CLAMP, LH

€ 11.50

28

36610351A
ref: 28

FORK SPRING

€ 32.50

29

74110221A
ref: 29

CLAMP, RH

€ 7.50

30

34910871A
ref: 30

O-RING

€ 2.00

31

34920081A
ref: 31

SLEEVE PLUG

€ 47.00

32

34911031A
ref: 32

BUSH

€ 11.00

33

34911041A
ref: 33

BUSH

€ 10.50

34

34910751A
ref: 34

CENTERING RING

€ 10.50

35

52910011A
ref: 35

REFLECTOR, SIDE

€ 5.50
