STARTER CLUTCH

XF650U 1998 (W) (E22)

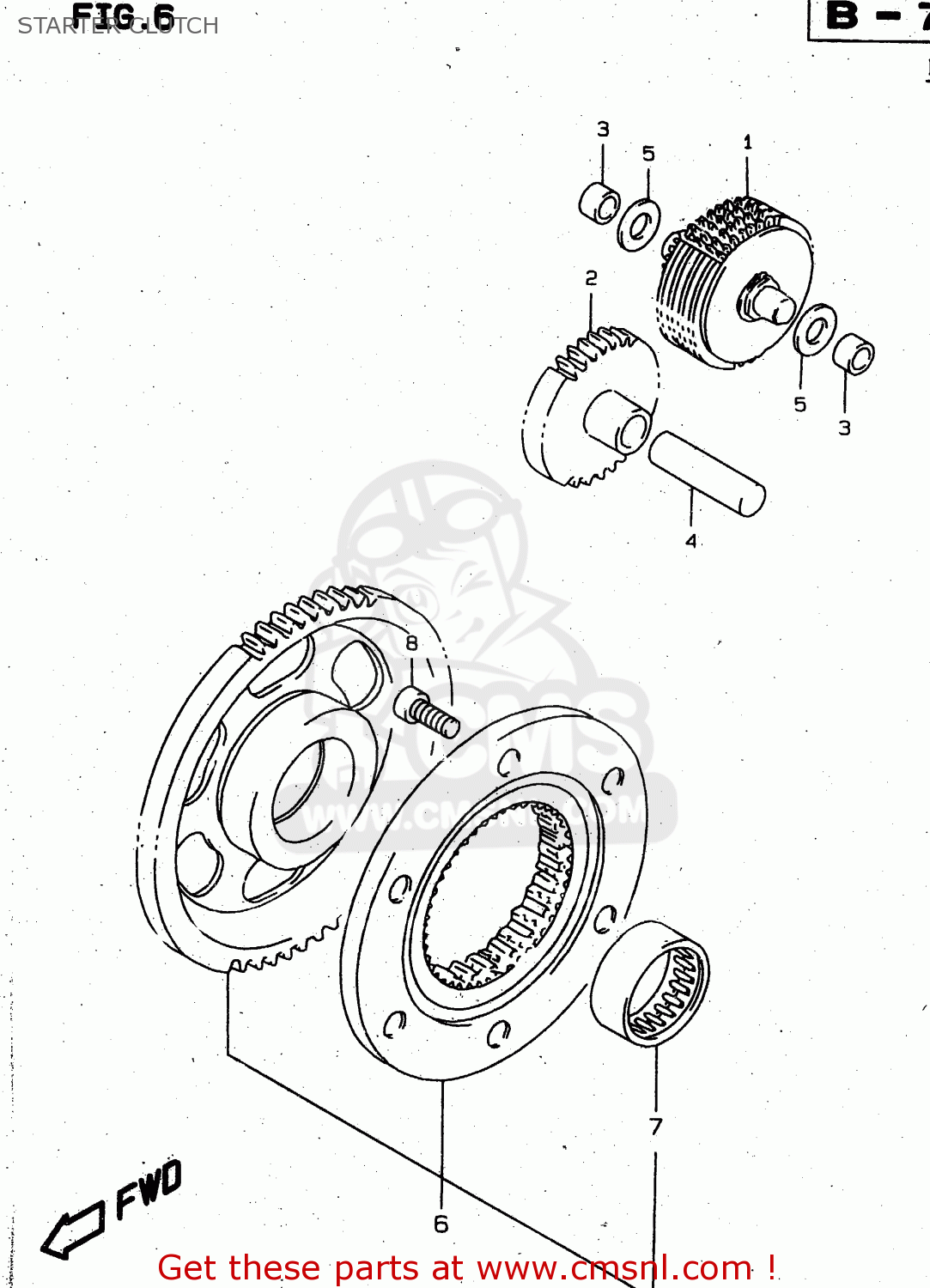

Starter clutch diagrama XF650U 1998 (W) (E22)

STARTER CLUTCH XF650U 1998 (W) (E22)

los precios están en EUR

ref

parte #

descripción

cantidad

1

1260012D00
ref: 1

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 109.50

2

1261212D01
ref: 2

GEAR,STARTER IDLE NO.2(NT:27)

€ 37.50

3

1261831D01
ref: 3

BUSH,LIMITER GEAR SHAFT

€ 15.50

4

0920212002
ref: 4

PIN

€ 7.00

5

0821110221
ref: 5

WASHER

€ 2.00

6

1260009860
ref: 6
<-12600-12810

CLUTCH SET,STARTER

€ 195.50

7

0926331009
ref: 7

BEARING(31X39X17.8)

€ 25.00

8

0713008203
ref: 8

BOLT

€ 3.00

todas las asambleas
