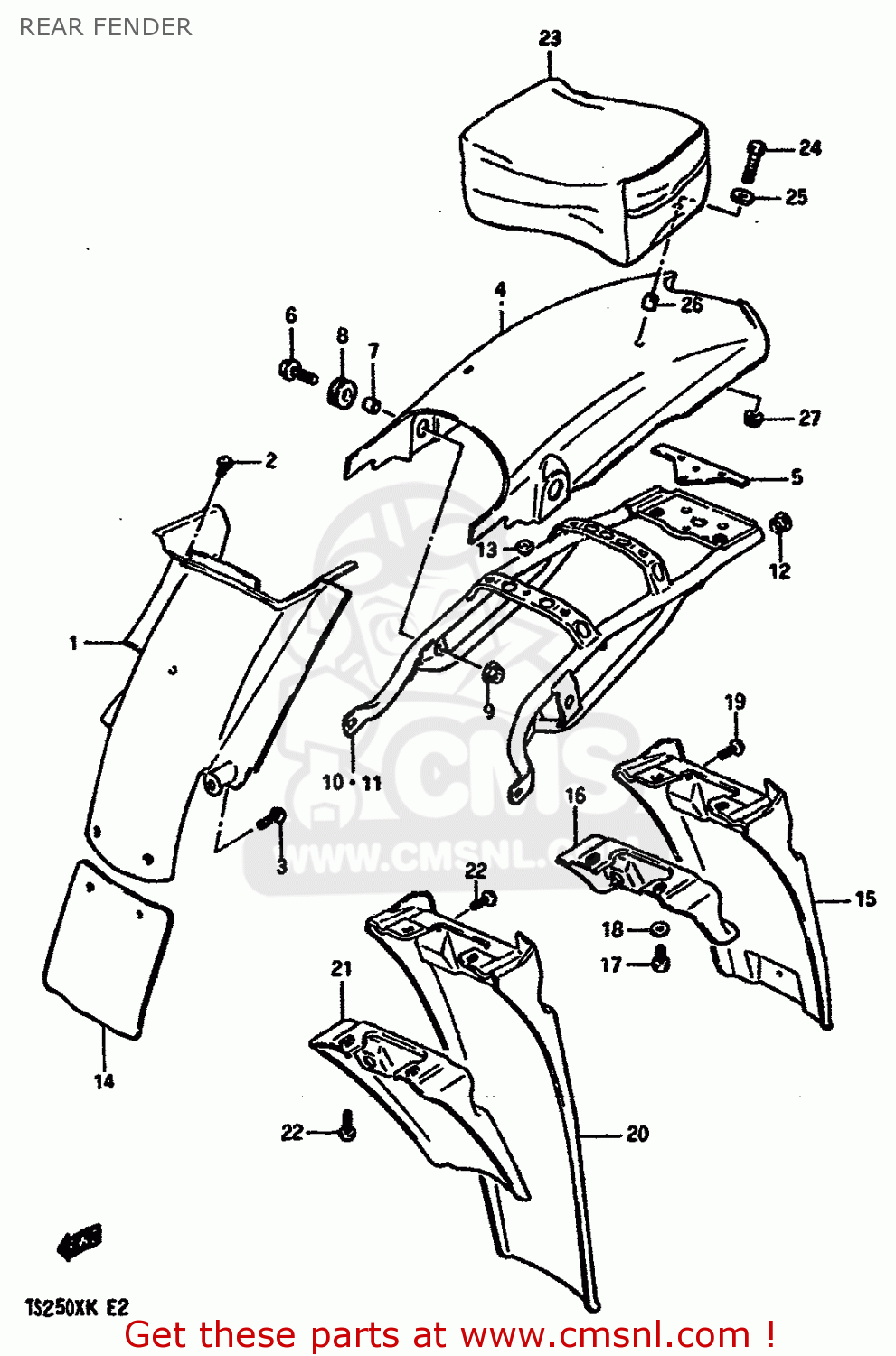

REAR FENDER
Rear fender diagrama
TS250X 1989 (K) (E02 E16 E21 E22 E24)
REAR FENDER TS250X 1989 (K) (E02 E16 E21 E22 E24)
los precios están en EUR
ref
parte #
descripción
cantidad
4-12
FENDER,REAR (YELLOW)
4-14
FENDER,REAR (YELLOW)
4-18
FENDER,REAR (YELLOW)
4-20
FENDER,REAR (YELLOW)
5
CUSHION,RR FENDER
6
BOLT
7
SPACER (8.2X12X7.5)
8
CUSHION
9
NUT
12
CAP(OD:14)
13
CUSHION
17
BOLT
19
SCREW
22
SCREW
23-1
BAG ASSEMBLY,SEAT TAIL
23-2
BAG ASSY,SEAT TAIL (BLUE/WHITE)
23-3
BAG ASSY,SEAT TAIL (BLUE/YELLOW)
26
SPACER (6.1X9X9)
moneda en EUR
notas: MODEL E
notas: MODEL E
notas: MODEL E
notas: MODEL G
notas: MODEL G/H/J/K
notas: MODEL G
notas: MODEL H/J
notas: MODEL H/J/K
notas: MODEL K
notas: MODEL G E22
notas: MODEL G/H/J/K E22
notas: MODEL G E22
notas: MODEL H/J E22
notas: MODEL H/J/K E22
notas: MODEL K E22
notas: MODEL G E17,E18
notas: MODEL G/H/J/K E15,E1
notas: MODEL G E17,E18
notas: MODEL H/J E15,E16,E1
notas: MODEL H/J/K E15,E16,
notas: MODEL K E16,E17
notas: E1,E4,E21,E24,E25
notas: E2,MODEL E E17,E18
notas: E22 MODEL G/H/J/K E1
notas: MODEL E
notas: E15,E16,E17,E18
notas: E22
notas: E15,E16,E17,E18,E22
notas: E15,E16,E17,E18,E22
notas: MODEL G
notas: MODEL H
notas: MODEL J/K
