FRONT WHEEL (MODEL K1)

TL1000S 1997 (V) USA (E03)

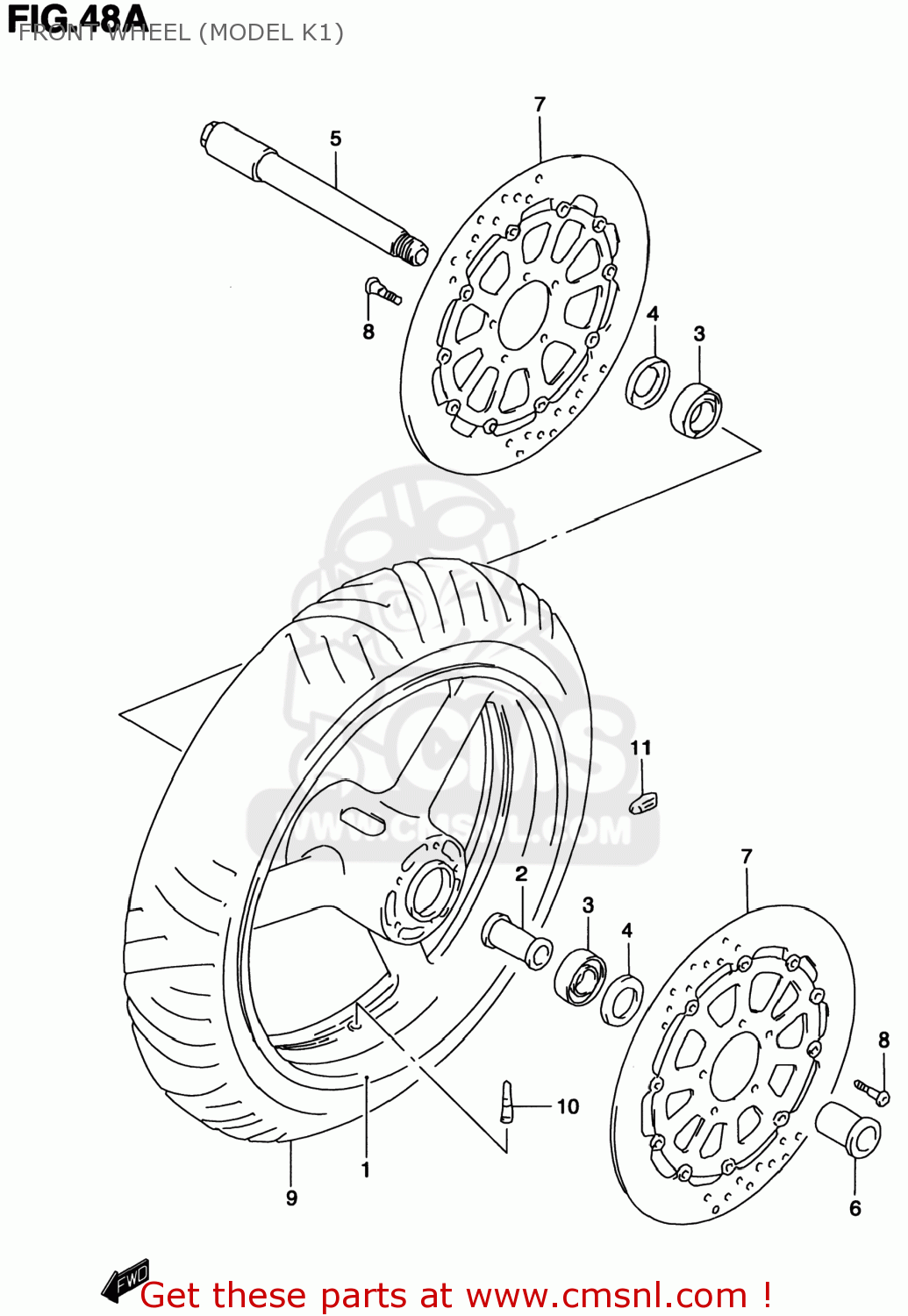

Front wheel (model k1) diagrama TL1000S 1997 (V) USA (E03)

los precios están en EUR

ref

parte #

descripción

cantidad

5411133E10Y6G
ref: 1
54111-33E11-Y6G

WHEEL,FRONT (17XMT3.50)(

€ 729.50

5411133E10Y6G
ref: 1
54111-33E11-Y6G

WHEEL,FRONT (17XMT3.50)(

€ 729.50

5473133E10
ref: 2

SPACER,FR HUB BEARING

€ 40.50

0926225061
ref: 3

BEARING(25X52X15)

€ 25.00

0928532004
ref: 4

SEAL,OIL(32X52X7)

€ 6.00

5471133E00
ref: 5

AXLE,FR

€ 135.00

5471233E00
ref: 6

NUT,FR AXLE

€ 61.50

5921033E20
ref: 7

DISC,FR BRAKE

€ 253.00

0910608125
ref: 8
09106-08148

BOLT 8X33

€ 5.00

5511002F00
ref: 9

TIRE 120/70 ZR17 (58W),M

€ 190.00

5511002F00
ref: 9

TIRE 120/70 ZR17 (58W),M

€ 190.00

4313024A00
ref: 10

VALVE ASSY,WHEEL RIM(TR412)

€ 6.50

11-1

5541100A00
ref: 11-1

BALANCER,WHEEL (10G)

€ 6.00

11-2

5541200A01
ref: 11-2
55412-17G00

BALANCER,WHEEL (20G)

€ 6.50
