CRANKCASE COVER-WATER PUMP

RM125 2005 (K5) USA (E03)

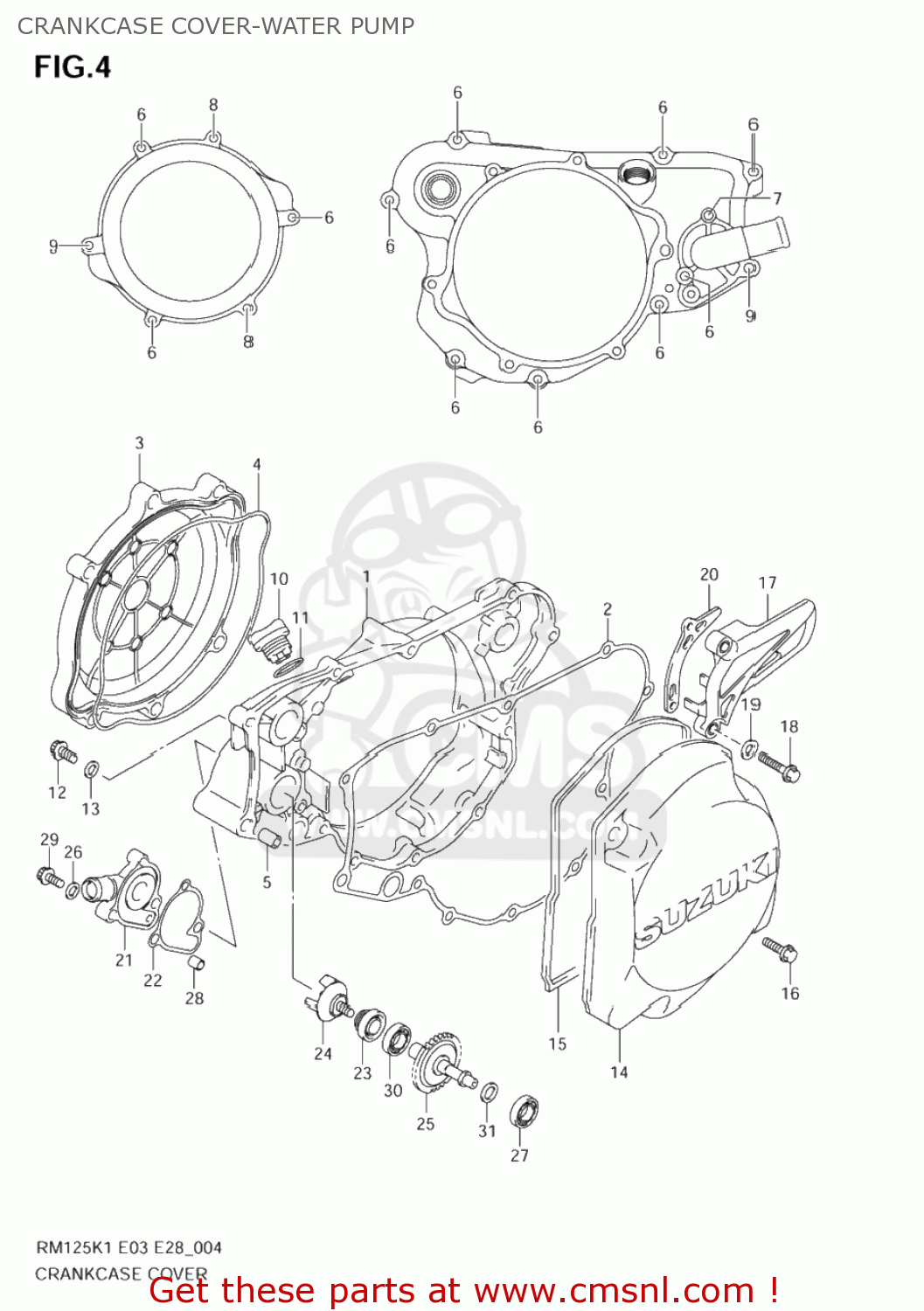

Crankcase cover-water pump diagrama RM125 2005 (K5) USA (E03)

CRANKCASE COVER-WATER PUMP RM125 2005 (K5) USA (E03)
CRANKCASE COVER-WATER PUMP RM125 2005 (K5) USA (E03)
los precios están en EUR
ref
parte #
descripción
cantidad
1
1134136F00
ref: 1
COVER,CLUTCH
1134136F00
€ 137.00
2
1148236F00
ref: 2
GASKET,CLUTCH COVER (NAS)
1148236F00
€ 10.00
3-1
1137136E10
ref: 3-1
11371-36F01
COVER,CLUTCH,OUTER
€ 122.00
3-2
1137136F00
ref: 3-2
11371-36F01
COVER,CLUTCH O
€ 122.00
3-3
1137136F01
ref: 3-3
COVER,CLUTCH OUTER
1137136F01
€ 122.00
4
1148436E10
ref: 4
O RING,CLUTCH COVER OUTER
1148436E10
€ 14.50
5
0421109109
ref: 5
PIN
0421109109
€ 1.50
6-1
0154706253
ref: 6-1
01547-0625B
SCREW
0154706253
€ 2.00
6-2
0910306250
ref: 6-2
BOLT(6X25)
0910306250
€ 2.00
7-1
0154706303
ref: 7-1
01547-0630B
BOLT,G/S SWITC
0154706303
€ 2.00
7-2
0910306251
ref: 7-2
BOLT(6X30)
0910306251
€ 2.00
8-1
0154706653
ref: 8-1
01547-0665B
BOLT
€ 2.00
8-2
0910306245
ref: 8-2
BOLT(6X65)
0910306245
€ 2.50
9-1
0154706703
ref: 9-1
01547-0670B
BOLT
€ 2.50
9-2
0910306254
ref: 9-2
BOLT(6X70)
0910306254
€ 4.50
10
1197125D00
ref: 10
PLUG,ENGINE OIL FILLER
1197125D00
€ 4.50
11
0928017003
ref: 11
O RING(D:3.1,ID:16.8)
0928017003
€ 1.50
12
0712006103
ref: 12
07120-0610B
BOLT
€ 2.00
13
0916806004
ref: 13
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
14-1
1135136E10
ref: 14-1
11351-36F00
COVER,MAGNETO
1135136E10
€ 109.00
14-2
1135136F00
ref: 14-2
COVER,MAGNETO
1135136F00
€ 109.00
15
1148336E11
ref: 15
GASKET,MAGNETO COVER
1148336E11
€ 5.50
16-1
0154706203
ref: 16-1
01547-0620B
SCREW
0154706203
€ 2.00
16-2
0910306235
ref: 16-2
01547-06207
BOLT,6X20
0910306235
€ 1.50
17
1136036E00
ref: 17
COVER,ENGINE SPROCKET
1136036E00
€ 24.00
18-1
0154706303
ref: 18-1
01547-0630B
BOLT,G/S SWITC
0154706303
€ 2.00
18-2
0910306251
ref: 18-2
BOLT(6X30)
0910306251
€ 2.00
19
0832201063
ref: 19
08322-0106B
WASHER
0832201063
€ 1.50
20
2764137E00
ref: 20
PLATE,FR CHAIN GUIDE
2764137E00
€ 7.00
21
1741136F00
ref: 21
CASE,WATER PUMP
1741136F00
€ 57.00
22
1743136F00
ref: 22
GASKET,WATER PUMP CASE (NAS)
1743136F00
€ 5.50
23-1
1746103B00
ref: 23-1
SEAL,WATER PUMP OIL
1746103B00
€ 5.50
23-2
1746137F00
ref: 23-2
SEAL,WATER PUMP OIL
1746137F00
€ 4.50
24-1
1749143D01
ref: 24-1
IMPELLER,WATER PUMP
1749143D01
€ 19.50
24-2
1749136F00
ref: 24-2
IMPELLER,WATER PUMP
1749136F00
€ 19.00
25-1
1751036F00
ref: 25-1
SHAFT,WATER PUMP
1751036F00
€ 61.50
25-2
1751036F10
ref: 25-2
SHAFT,WATER PUMP
1751036F10
€ 52.00
26
0916806004
ref: 26
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
27
0926208005
ref: 27
BEARING(8X22X7)
0926208005
€ 8.50
28
0421109109
ref: 28
PIN
0421109109
€ 1.50
29
0712006103
ref: 29
07120-0610B
BOLT
€ 2.00
30
0811369010
ref: 30
BEARING
0811369010
€ 18.50
31
0821106121
ref: 31
WASHER
0821106121
€ 2.00
