REAR MASTER CYLINDER

GV1400GC 1987 (H) (E01)

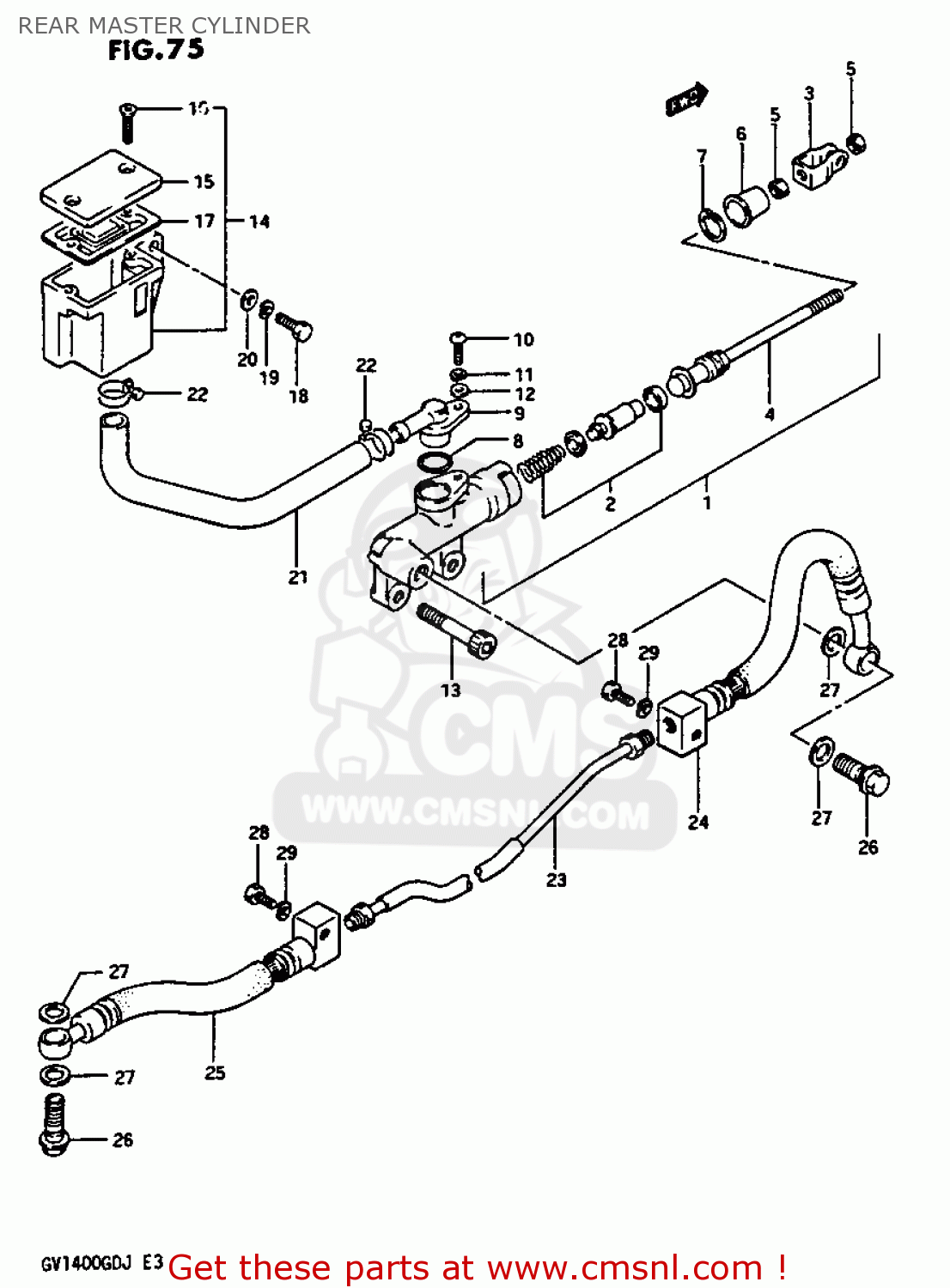

Rear master cylinder diagrama GV1400GC 1987 (H) (E01)

REAR MASTER CYLINDER GV1400GC 1987 (H) (E01)

los precios están en EUR

ref

parte #

descripción

cantidad

1

6960024A01
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 157.50

2

6960004810
ref: 2

PISTON/CUP SET

€ 40.00

3

6969219A00
ref: 3

YOKE

€ 10.00

4

6967024A00
ref: 4

ROD,PUSH

€ 63.50

5

6969305A00
ref: 5

NUT

€ 1.50

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6968634200
ref: 8

O RING

€ 2.50

9

6967205A00
ref: 9

CONNECTOR

€ 4.50

10

0211204124
ref: 10

SCREW

€ 1.50

11

0832121045
ref: 11

LOCK WASHER

€ 1.50

12

0832221045
ref: 12

WASHER

€ 1.50

13

0712008605
ref: 13

BOLT 5X10

€ 4.50

14

6974024A01
ref: 14

TANK ASSY,RESERVOIR

€ 99.50

15

6966924A00
ref: 15

CAP

€ 11.50

16

6968904A00
ref: 16

SCREW

€ 1.50

17

5966704700
ref: 17

DIAPHRAGM

€ 6.50

18

0150006167
ref: 18

BOLT

€ 2.00

19

0832101067
ref: 19

WASHER,LOCK

€ 1.50

20

0832201067
ref: 20

WASHER

€ 1.50

20

0832201067
ref: 20

WASHER

€ 1.50

21

6973124A00
ref: 21

HOSE,RESERVOIR TANK

€ 6.00

22

0940016302
ref: 22

CLAMP

€ 4.50

23

6925024A00
ref: 23

PIPE,REAR BRAKE

€ 14.50

24-1

6948024A10
ref: 24-1
MODEL G

HOSE,REAR BRAKE

€ 76.50

24-2

6948024A12
ref: 24-2
MODEL H/J

HOSE,REAR BRAKE

€ 76.50

25

6948024A22
ref: 25

HOSE,REAR BRAKE

€ 93.50

26

0936010017
ref: 26

BOLT UNION

€ 5.50

27

0916110009
ref: 27

WASHER(10X15X1.5)

€ 1.50

28

0150006127
ref: 28

BOLT

€ 2.00

29

0832101067
ref: 29

WASHER,LOCK

€ 1.50
