SEAT TAIL COVER (MODEL Z)

GSX250E 1983 (D) GENERAL EXPORT (E01)

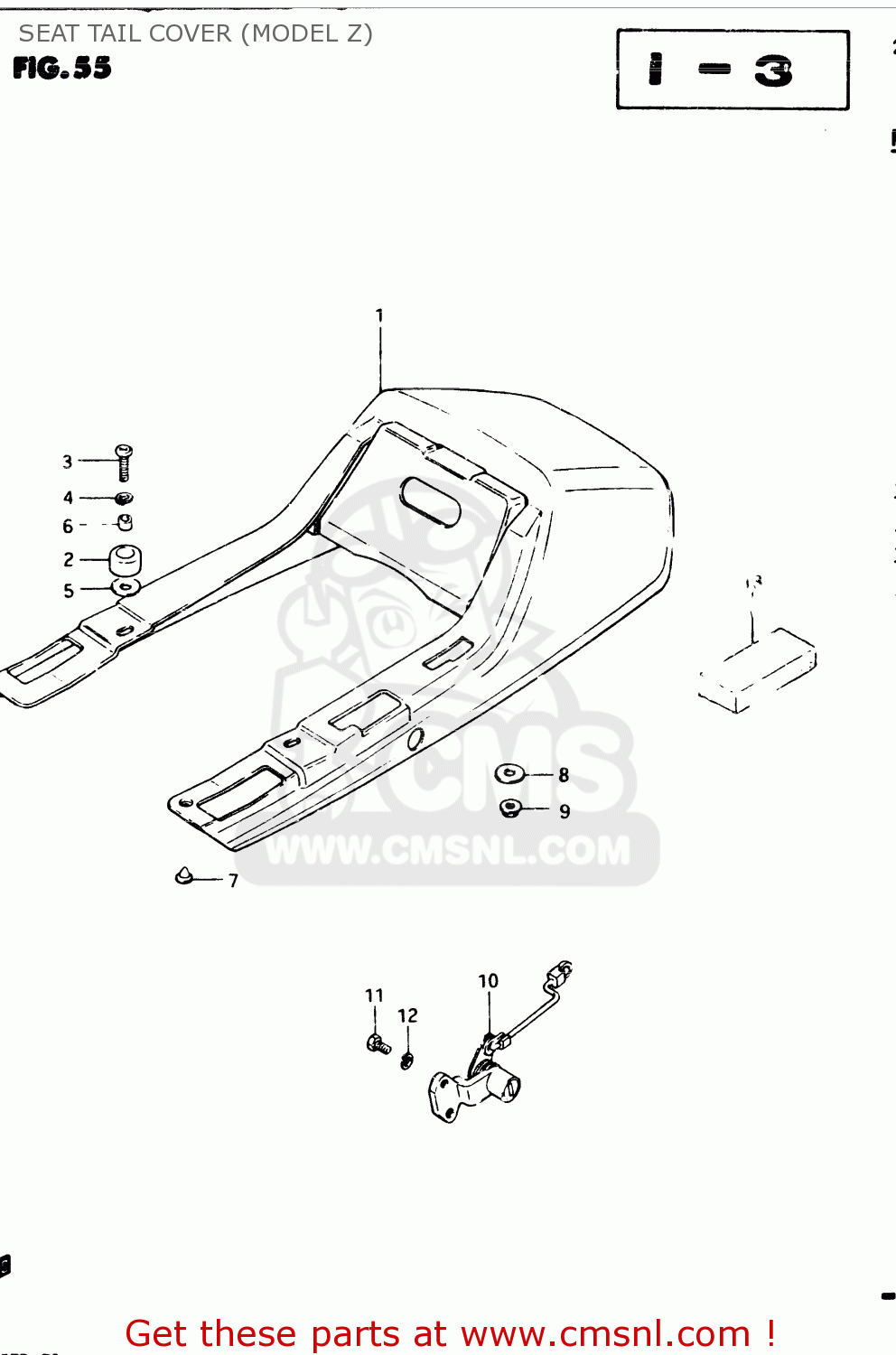

Seat tail cover (model z) diagrama GSX250E 1983 (D) GENERAL EXPORT (E01)

SEAT TAIL COVER (MODEL Z) GSX250E 1983 (D) GENERAL EXPORT (E01)
SEAT TAIL COVER (MODEL Z) GSX250E 1983 (D) GENERAL EXPORT (E01)
los precios están en EUR
ref
parte #
descripción
cantidad
1-1
455104440000J
ref: 1-1
TAIL COVER, SEAT (RED)
€ 127.00
1-2
4551044400737
ref: 1-2
TAIL COVER, SEAT (SILVER)
€ 127.00
2
4514944400
ref: 2
CUSHION,COVER
4514944400
€ 6.50
3
0211206208
ref: 3
SCREW
€ 1.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 1.50
5
0916006004
ref: 5
WASHER (6.5X24X1.6)
0916006004
€ 1.50
6
0918006073
ref: 6
SPACER
0918006073
€ 2.00
7
0932106016
ref: 7
CUSHION
0932106016
€ 2.00
8
0916906016
ref: 8
WASHER
0916906016
€ 1.00
9
0831921068
ref: 9
NUT 6MM
0831921068
€ 1.50
10
4570044400KEY
ref: 10
LOCK ASSEMBLY,SEAT
4570044400KEY
€ 46.50
11
0110705108
ref: 11
BOLT 5X10
0110705108
€ 1.50
12
0832121058
ref: 12
LOCK WASHER
0832121058
€ 2.00
13
4556244410
ref: 13
CUSHION
€ 2.50
