ELECTRICAL

GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

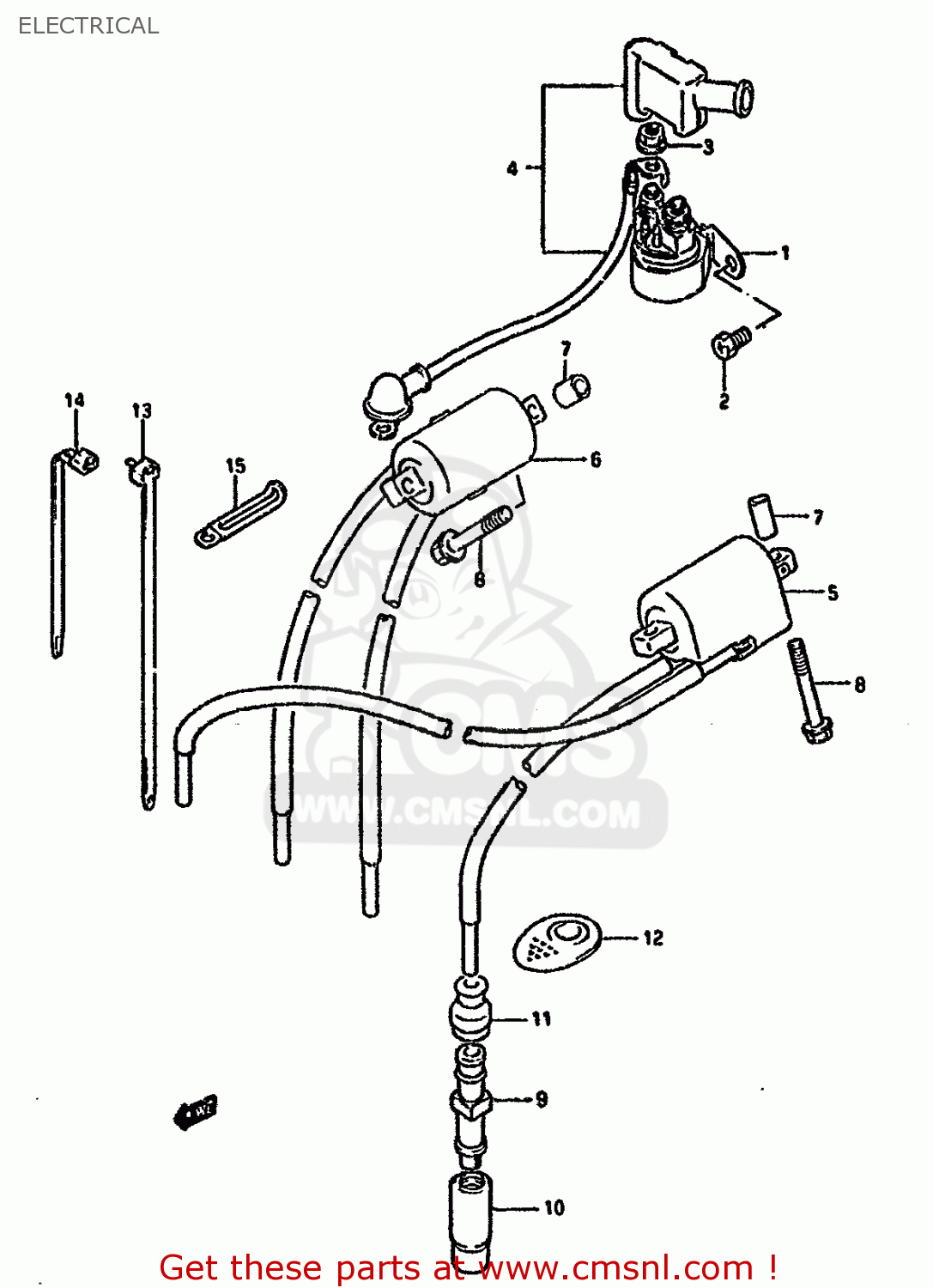

Electrical diagrama GSX1100G 1994 (R) (E02 E04 E18 E22 E24 E25)

los precios están en EUR

ref

parte #

descripción

cantidad

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 79.00

0912806013
ref: 2

SCREW(6X8)

€ 1.50

0836135066
ref: 3

NUT

€ 2.00

3385026D00
ref: 4

WIRE,STARTER MOTOR LEAD

€ 27.50

3341026D00
ref: 5

COIL ASSY,IGNITION

€ 104.50

3342026D00
ref: 6

COIL ASSEMBLY,IGNITION (2

€ 103.50

0918006198
ref: 7

SPACER(6.2X12X16)

€ 3.50

8-1

0151706456
ref: 8-1
MODEL M/N/P

SCREW

€ 2.50

8-2

0155006453
ref: 8-2
MODEL R

BOLT (6X45)

€ 2.50

3351020C02
ref: 9

CAP,SPARK PLUG

€ 35.00

3354120C00
ref: 10

SEAL,SPARK PLUG

€ 17.00

3354238B00
ref: 11

SEAL,HIGH TENSION CORD

€ 4.00

3354348B00
ref: 12

COVER,SPARK PLUG CAP

€ 11.00

0940722404
ref: 13

CLAMP

€ 2.50

0940714403
ref: 14

CLAMP(L:125)

€ 2.50

0940406420
ref: 15

CLAMP

€ 2.50
