FOOTREST

GS500ESK 1995 (S) BRAZIL (E37)

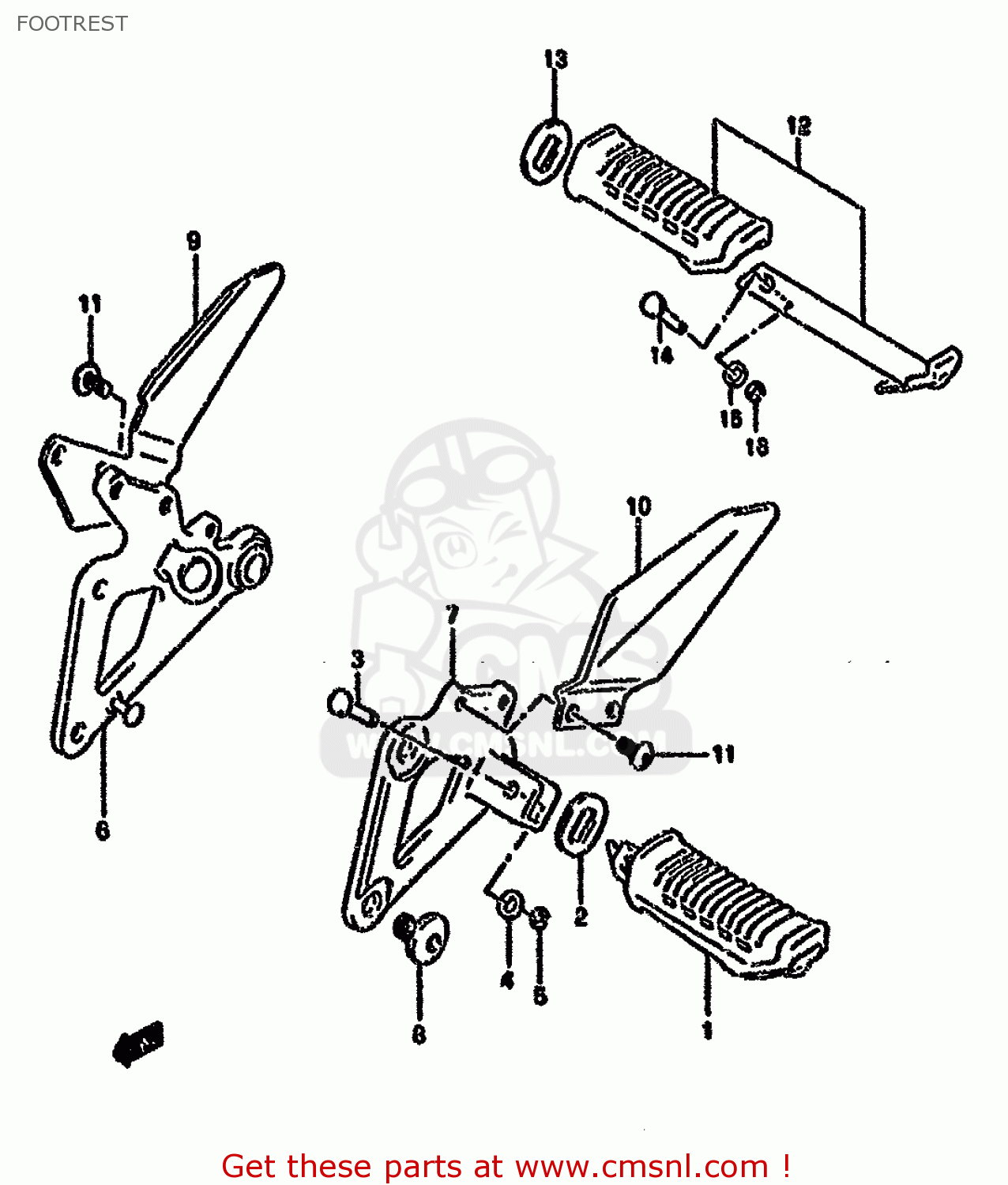

Footrest diagrama GS500ESK 1995 (S) BRAZIL (E37)

FOOTREST GS500ESK 1995 (S) BRAZIL (E37)
FOOTREST GS500ESK 1995 (S) BRAZIL (E37)
los precios están en EUR
ref
parte #
descripción
cantidad
1-1
4355001D00
ref: 1-1
RUBBER,FR FOOTREST,R
4355001D00
€ 45.00
1-2
4356001D00
ref: 1-2
RUBBER,FR FOOTREST,L
4356001D00
€ 45.00
2
4363134A01
ref: 2
WASHER,FOOTREST RUBBER
4363134A01
€ 6.50
3-1
0920806003
ref: 3-1
MODEL K/L
PIN
0920806003
€ 4.50
3-2
8725985510
ref: 3-2
MODEL M/N/P/R
PIN
8725985510
€ 4.50
3-3
0920806005
ref: 3-3
MODEL S/T
PIN
0920806005
€ 2.00
4-1
0832211068
ref: 4-1
MODEL K/L/M/N/P/R
WASHER 6MM
€ 1.50
4-2
0832201067
ref: 4-2
MODEL S
WASHER
0832201067
€ 1.50
5
0833211046
ref: 5
E RING
€ 1.50
6-1
4351001D000FP
ref: 6-1
MODEL K/L/M/N/P
BRACKET COMP,FRONT FOOTREST
€ 111.00
6-2
4351001D0013L
ref: 6-2
MODEL R/S
BRACKET,FR FOOTREST,R
4351001D0013L
€ 111.00
6-3
4351001D0017U
ref: 6-3
MODEL T
BRACKET COMP,FRONT FOOTREST
€ 111.00
7-1
4352001D000FP
ref: 7-1
MODEL K/L/M/N/P
BRACKET,FR FOOTREST,L
4352001D000FP
€ 59.00
7-2
4352001D0013L
ref: 7-2
MODEL R/S
BRACKET,FR FOOTREST,L
4352001D0013L
€ 52.00
7-3
4352001D0017U
ref: 7-3
MODEL T
BRACKET COMP,FRONT FOOTREST
€ 52.00
8-1
0910608089
ref: 8-1
MODEL K
BOLT(8X25)
0910608089
€ 9.00
8-2
0910608094
ref: 8-2
MODEL L/M/N/P/R/S/T
BOLT(8X20)
0910608094
€ 8.00
9-1
4358601D00
ref: 9-1
MODEL K/L
GUARD,FRONT FOOTREST,RIGHT
€ 51.00
9-2
4358601D01
ref: 9-2
MODEL M/N/P
GUARD,FRONT FOOTREST,RIGHT
€ 51.00
9-3
4358601D10
ref: 9-3
MODEL R/S/T
GUARD,FR FOOTREST,R
4358601D10
€ 51.00
10-1
4359601D00
ref: 10-1
MODEL K/L
GUARD,FRONT FOOTREST,LEFT
€ 51.00
10-2
4359601D01
ref: 10-2
MODEL M/N/P
GUARD,FRONT FOOTREST,LEFT
€ 51.00
10-3
4359601D10
ref: 10-3
MODEL R/S/T
GUARD,FR FOOTREST,L
4359601D10
€ 51.00
11-1
0913906031
ref: 11-1
MODEL K
SCREW
0913906031
€ 2.50
11-2
0913906055
ref: 11-2
MODEL L
SCREW(6X10)
0913906055
€ 2.50
11-3
0913906062
ref: 11-3
MODEL M/N/P/R/S/T
SCREW(6X12)
0913906062
€ 3.00
12-1
4360012B00
ref: 12-1
FOOTREST ASSY,PILLION,R
4360012B00
€ 22.50
12-2
4370012B00
ref: 12-2
FOOTREST ASSY,PILLION,L
4370012B00
€ 22.00
13
4363134A01
ref: 13
WASHER,FOOTREST RUBBER
4363134A01
€ 6.50
14-1
0920806003
ref: 14-1
MODEL K/L
PIN
0920806003
€ 4.50
14-2
8725985510
ref: 14-2
MODEL M/N/P/R
PIN
8725985510
€ 4.50
14-3
0920806005
ref: 14-3
MODEL S/T
PIN
0920806005
€ 2.00
15-1
0832201067
ref: 15-1
MODEL K/L/M/N/P/R
WASHER
0832201067
€ 1.50
15-2
0832201063
ref: 15-2
MODEL S
WASHER
0832201063
€ 1.50
16
0833211046
ref: 16
E RING
€ 1.50
