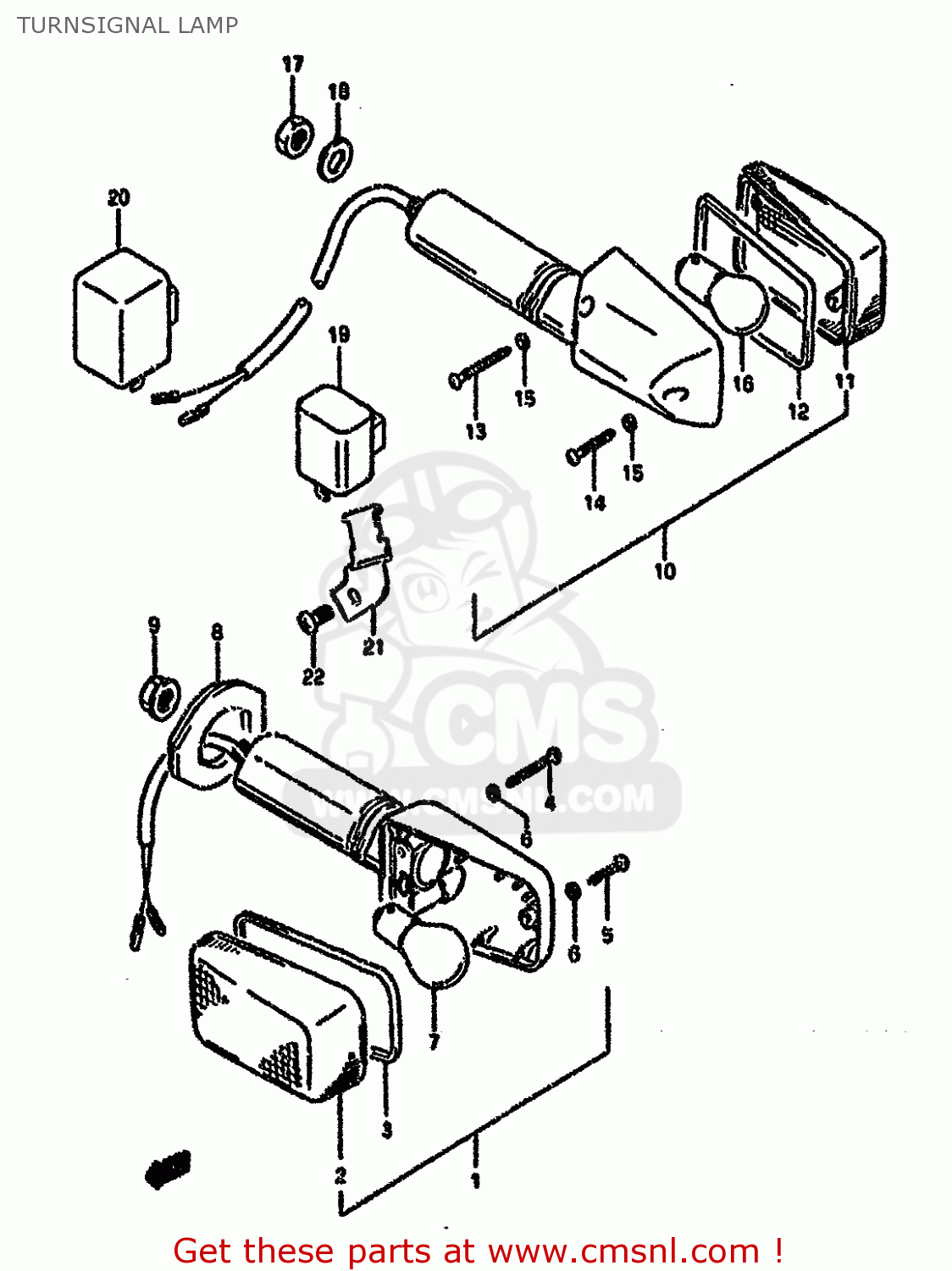

TURNSIGNAL LAMP

ref

parte #

descripción

cantidad

1-1

3560101D10
ref: 1-1
MODEL M/N/P

LAMP ASSY,FR TURN SIGNAL

€ 67.00

1-2

3560129EC0
ref: 1-2
MODEL R/S,-35601-29E

LAMP ASSY,FR TURN SIGNAL

€ 74.50

2

3561217C20
ref: 2

LENS

€ 6.00

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.50

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.50

8

3567427A01
ref: 8

GROMMET

€ 12.00

9-1

0831620103
ref: 9-1
MODEL M

NUT

€ 3.00

9-2

0831012105
ref: 9-2
MODEL N/P

NUT

€ 1.50

9-3

0831000103
ref: 9-3
MODEL R/S/T

NUT

€ 1.50

10-1

3560314D10
ref: 10-1
MODEL M/N/P

LAMP ASSY,RR TURNSIGNAL

€ 88.00

10-2

3560329E90
ref: 10-2
MODEL R/S/T-35603-29

LAMP ASSY,RR TURNSIGNAL,R

€ 65.50

10-3

3560314D20
ref: 10-3
E15,E16-35603-17C31

LAMP ASSY,RR TURNSIGNAL

€ 74.00

11

3565217C20
ref: 11

LENS

€ 6.00

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.50

13

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

14

3572540511
ref: 14

SCREW

€ 1.50

15

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.50

17-1

0914010036
ref: 17-1
MODEL M/N

NUT

€ 3.50

17-2

0831616105
ref: 17-2
MODEL P

NUT

€ 2.00

17-3

0831610103
ref: 17-3
MODEL R/S/T

NUT

€ 2.00

18

0832211104
ref: 18
MODEL M/N

WASHER 10MM

€ 2.00

19

3861031X50
ref: 19
MODEL M/N-38610-3131

RELAY ASSY,TURNSIGNAL

€ 51.00

20-1

3861045091
ref: 20-1
MODEL M/N E22

RELAY ASSY,TUR

€ 61.00

20-2

3861045D00
ref: 20-2
MODEL P

RELAY,TURN SIGNAL

€ 63.00

20-3

3861045D01
ref: 20-3
MODEL R/S/T

RELAY ASSY,TURNSIGNAL LAMP

€ 63.00

21

3862104A01
ref: 21

BRACKET,RELAY

€ 3.50

22

0211206083
ref: 22

SCREW

€ 1.50

todas las asambleas
