CLUTCH

DR600SU 1986 (G) GERMANY (E22)

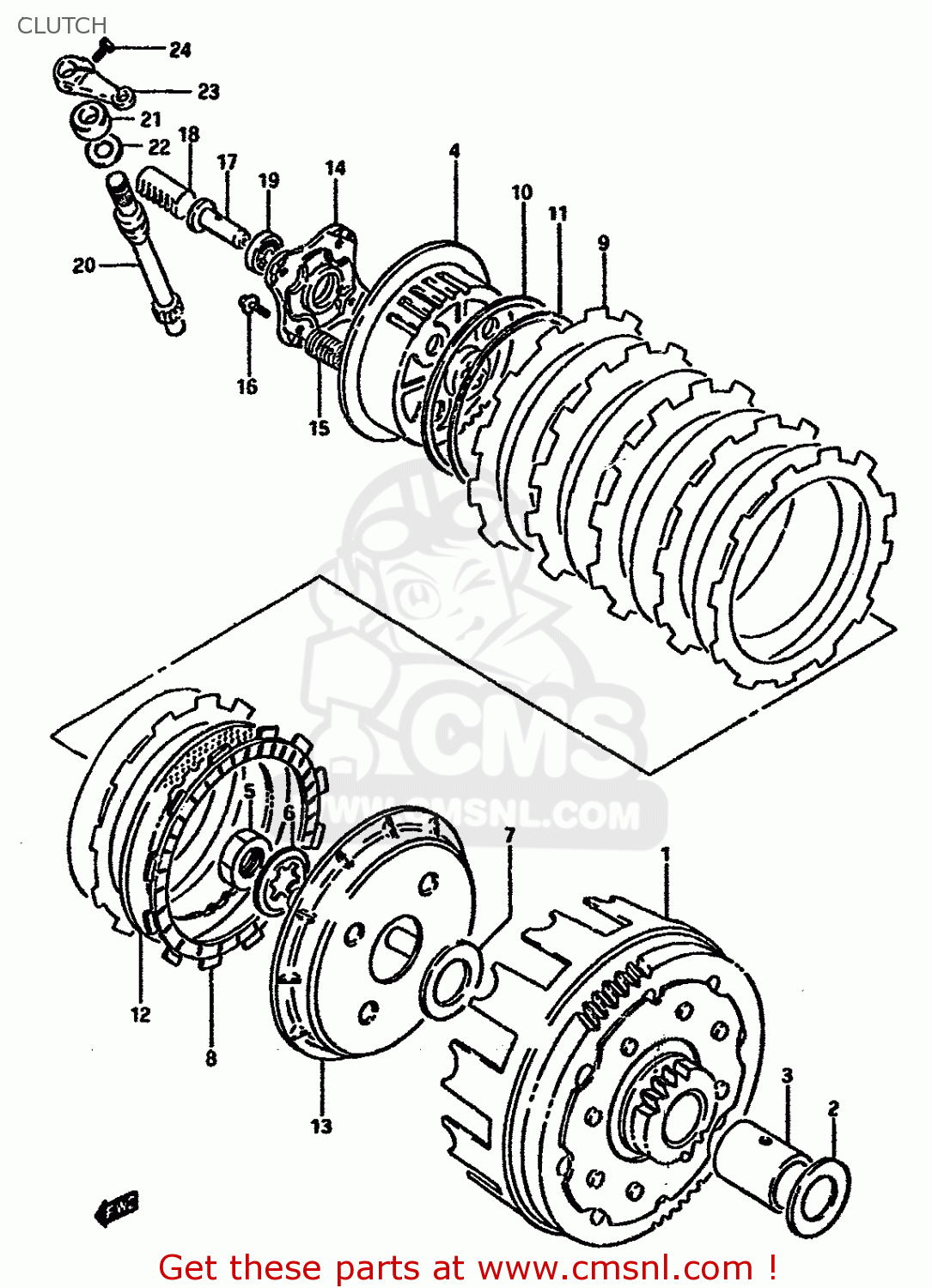

Clutch diagrama DR600SU 1986 (G) GERMANY (E22)

CLUTCH DR600SU 1986 (G) GERMANY (E22)
CLUTCH DR600SU 1986 (G) GERMANY (E22)
los precios están en EUR
ref
parte #
descripción
cantidad
1
2120014A01
ref: 1
NT:67/18
GEAR ASSEMBLY,PRIMARY DRIVE
€ 262.00
2
0821122383
ref: 2
WASHER
0821122383
€ 2.50
3
0918022023
ref: 3
SPACER(22X28X32.5)
0918022023
€ 15.50
4
2141137401
ref: 4
HUB,CLUTCH SLEEVE
2141137401
€ 71.00
5
0914022003
ref: 5
NUT
0914022003
€ 6.50
6
0916722005
ref: 6
WASHER,LOCK
0916722005
€ 2.00
7
0821122383
ref: 7
WASHER
0821122383
€ 2.50
8
2144137400
ref: 8
PLATE,CLUTCH DRIVE (NAS)
2144137400
€ 15.50
9
2144237401
ref: 9
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
10
2147137400
ref: 10
MODEL F
SEAT,WAVE WASHER(T:1.4)
2147137400
€ 7.50
11
0916400004
ref: 11
MODEL F
WASHER
0916400004
€ 7.50
12
2145114A00
ref: 12
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
2145114A00
€ 6.00
13
2146237400
ref: 13
DISC,CLUTCH PRESSURE
2146237400
€ 45.00
14
2146537400
ref: 14
PLATE,RELEASE
2146537400
€ 13.00
15-1
0944020013
ref: 15-1
MODEL F
SPRING
0944020013
€ 4.00
15-2
0944020015
ref: 15-2
MODEL G/H/J/K
SPRING
0944020015
€ 4.50
16
0151706207
ref: 16
BOLT 6X20
€ 2.00
17
2312114A00
ref: 17
PIECE,CLUTCH PUSH
€ 13.50
18
2316537400
ref: 18
RACK,CLUTCH RELEASE
2316537400
€ 18.00
19
0811060010
ref: 19
BEARING
0811060010
€ 12.00
20
2326116501
ref: 20
PINION,CLUTCH RELEASE
2326116501
€ 40.50
21
0928512006
ref: 21
SEAL,OIL (12X22X9)
0928512006
€ 5.50
22
0916014003
ref: 22
WASHER (14.2X22X1)
0916014003
€ 2.50
23
2327145400
ref: 23
ARM,CLUTCH RELEASE
2327145400
€ 30.00
24
0110706207
ref: 24
BOLT
0110706207
€ 1.50
