FRONT BRAKE

LT-Z50 QUAD SPORT 2008 (K8) USA (E03) QUADSPORT QUAD-SPORT

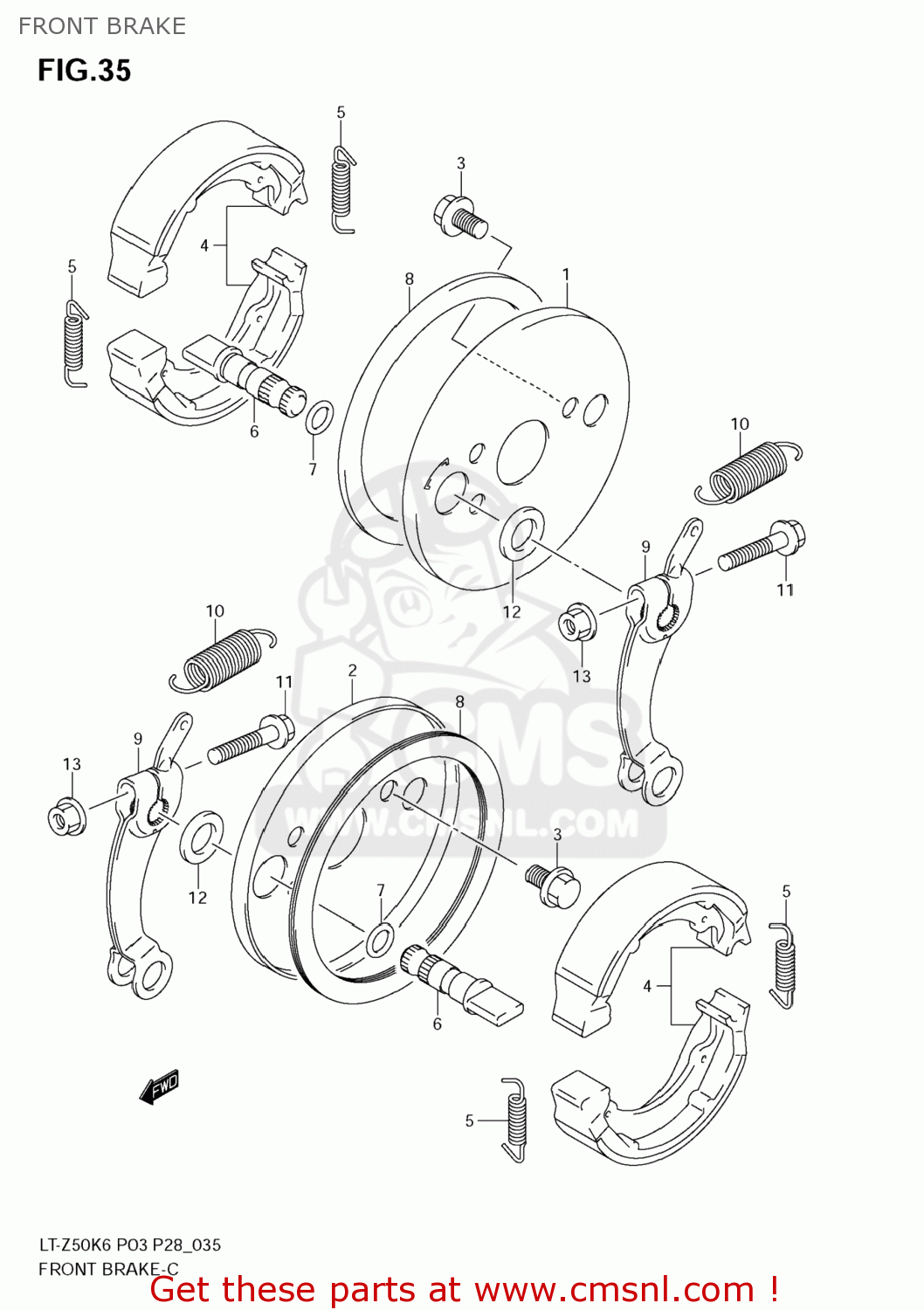

Front brake diagrama LT-Z50 QUAD SPORT 2008 (K8) USA (E03) QUADSPORT QUAD-SPORT

los precios están en EUR

ref

parte #

descripción

cantidad

5451143F00
ref: 1

PLATE,FR BRAKE,R

€ 16.00

5481143F00
ref: 2

PLATE,FR BRAKE,L

€ 16.00

015470610B
ref: 3

BOLT

€ 3.00

5440040810
ref: 4

SHOE SET,BRAKE (NAS)

€ 14.50

0944306029
ref: 5

SPRING

€ 2.00

5444102301
ref: 6

CAM,FR BRAKE

€ 7.50

0928010016
ref: 7

O RING(D:1.9,ID:9.8)

€ 2.50

5412443F00
ref: 8

SEAL,FR BRAKE DUST

€ 16.00

5445043F00
ref: 9

LEVER,FR BRAKE CAM

€ 10.00

0944310044
ref: 10

SPRING

€ 2.50

0910305012
ref: 11

BOLT(5X27)

€ 2.00

083220110B
ref: 12

WASHER

€ 2.00

083161005B
ref: 13

NUT

€ 2.50

todas las asambleas
