STEERING SHAFT (MODEL K2/K3)

LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

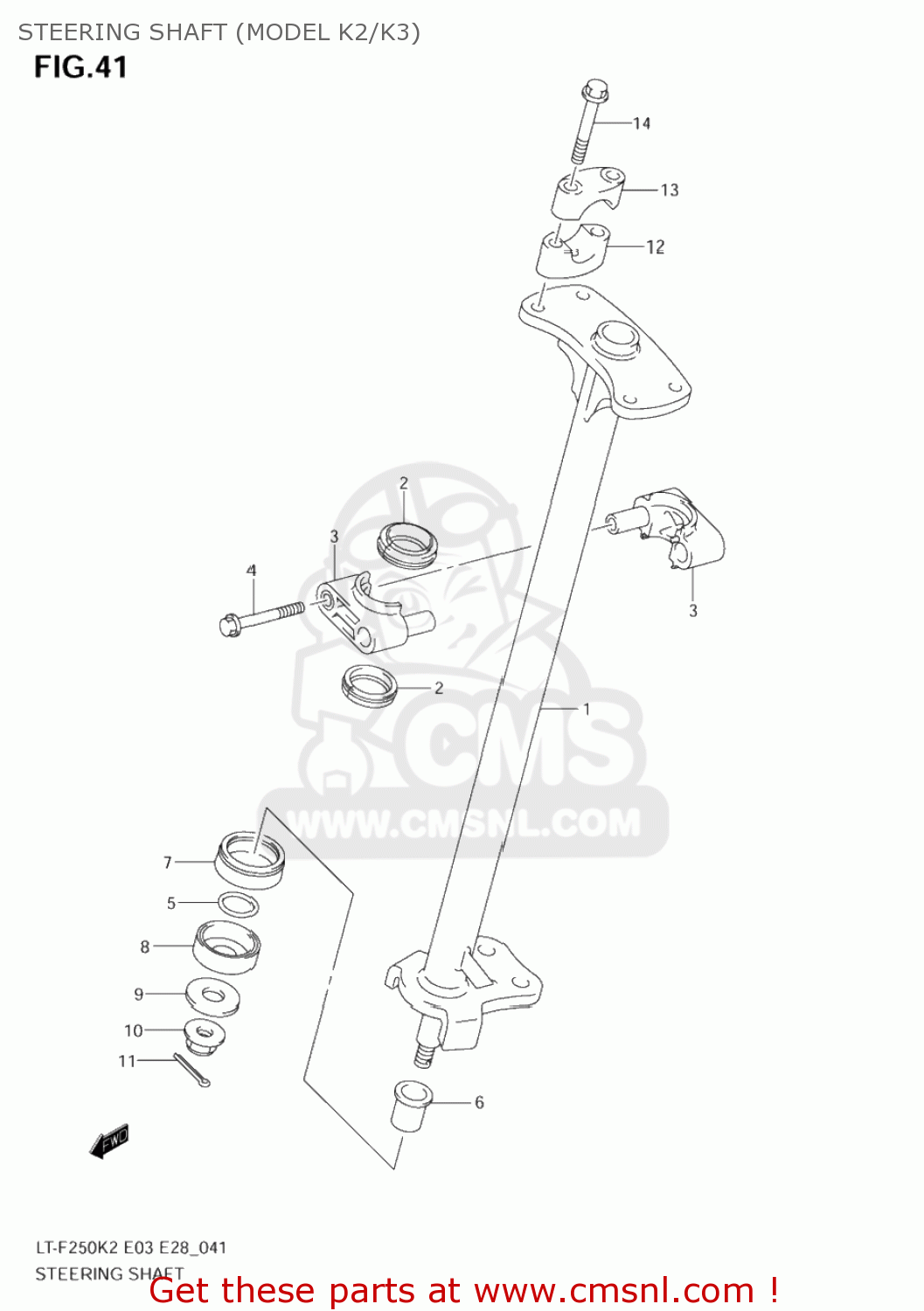

Steering shaft (model k2/k3) diagrama LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250

STEERING SHAFT (MODEL K2/K3) LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
STEERING SHAFT (MODEL K2/K3) LT-F250 OZARK 2006 (K6) USA (E03) LTF250 LT F250
los precios están en EUR
ref
parte #
descripción
cantidad
1
5165005G00
ref: 1
SHAFT,STEERING
€ 173.50
2
5167824500
ref: 2
SEAL,STEERING SHAFT HLDR DUST
5167824500
€ 5.00
2
5167824500
ref: 2
SEAL,STEERING SHAFT HLDR DUST
5167824500
€ 5.00
3
5167024500
ref: 3
HOLDER,STEERING SHAFT
5167024500
€ 13.00
4
0155008753
ref: 4
01550-0875A
BOLT
€ 3.50
5
0928017003
ref: 5
O RING(D:3.1,ID:16.8)
0928017003
€ 1.50
6
5166119B10
ref: 6
51661-09F00
BUSH
€ 22.00
6
5166119B10
ref: 6
51661-09F00
BUSH
€ 22.00
7
5166219A01
ref: 7
51662-05G00
DUST SEAL,STEERING SHAFT
5166219A01
€ 4.50
7
5166219A01
ref: 7
51662-05G00
DUST SEAL,STEERING SHAFT
5166219A01
€ 4.50
8
5166324500
ref: 8
51663-05G00
SEAL,STEERING DUST,LOWER
5166324500
€ 5.00
8
5166324500
ref: 8
51663-05G00
SEAL,STEERING DUST,LOWER
5166324500
€ 5.00
9
0916012073
ref: 9
WASHER(12.5X32X2.3)
0916012073
€ 1.50
10
0831931123
ref: 10
08319-3112B
NUT
0831931123
€ 2.50
11
0411120208
ref: 11
04111-2020A
PIN 20X20
0411120208
€ 1.00
12
5621109F00291
ref: 12
HOLDER,HANDLE LWR
€ 13.50
13
5621127200291
ref: 13
HOLDER,HANDLE UPR
5621127200291
€ 9.50
14
0155008553
ref: 14
01550-0855A
BOLT
€ 3.00
