SWING ARM

ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

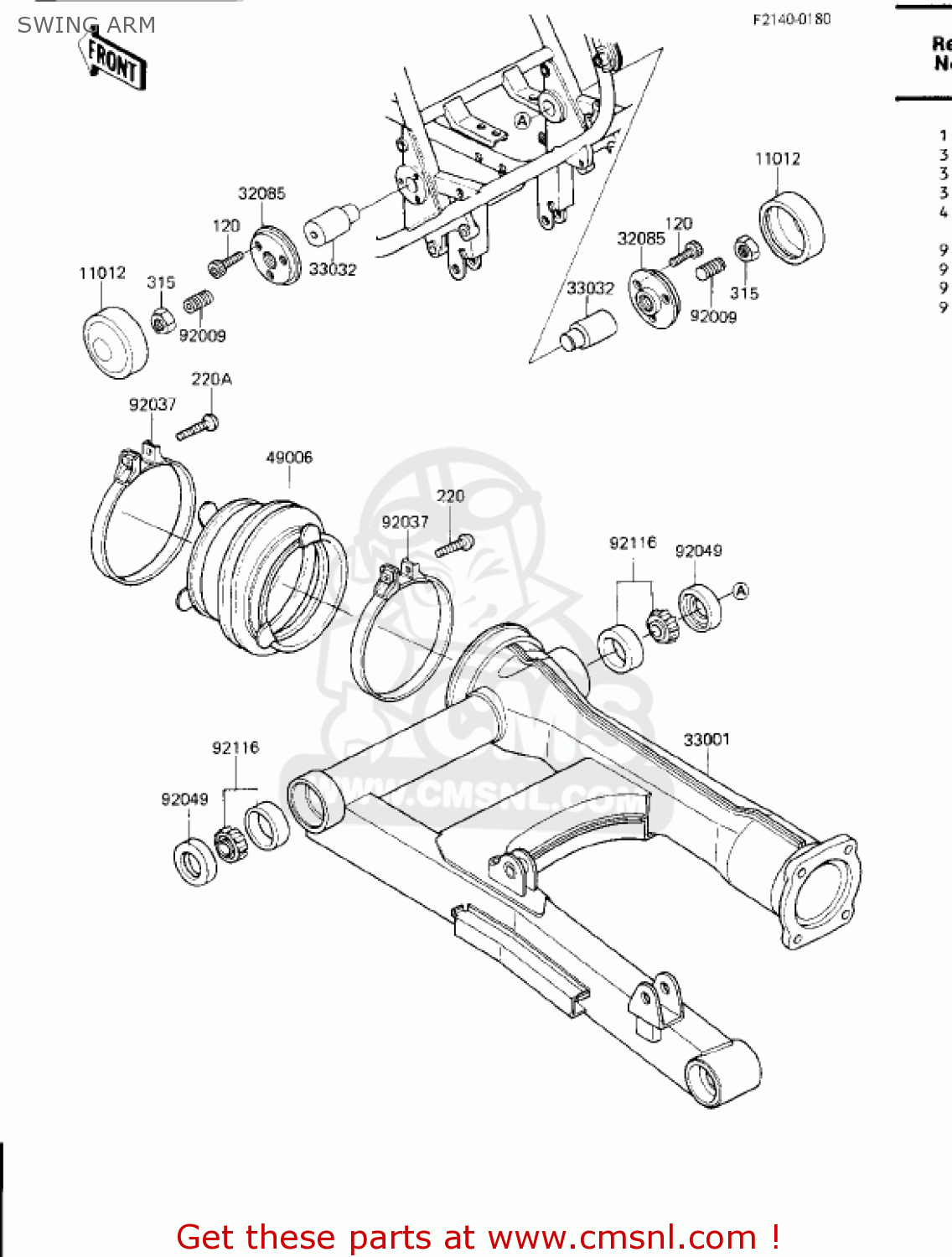

Swing arm diagrama ZN1300A4 VOYAGER 1986 USA CALIFORNIA CANADA

los precios están en EUR

ref

parte #

descripción

cantidad

11012

110121282
ref: 11012

CAP,SWING ARM

€ 7.50

32085

320851116
ref: 32085

STOPPER,SWING ARM

€ 27.00

33001

330011162
ref: 33001

ARM-COMP-SWING

€ 415.50

33032

330321036
ref: 33032

SHAFT-SWING ARM

€ 40.00

49006

490061020
ref: 49006

BOOT,SWING ARM

€ 23.00

92009

920091087
ref: 92009

SCREW,14X22

€ 4.50

92037

920371097
ref: 92037

CLAMP,SWING ARM BOOT

€ 9.00

92049

920491030
ref: 92049

OIL SEAL,26406

€ 6.00

92116

921161001
ref: 92116

BEARING,R,4T30203E1

€ 36.00

120

120S0820
ref: 120

BOLT-SOCKET,8X20

€ 2.50

220

220B0420
ref: 220

SCREW-PAN-CROS

€ 2.00

220A

220B0430
ref: 220A

SCREW-PAN-CROS

€ 0.50

315

315B1400
ref: 315

NUT,14MM

€ 1.00
