RADIATOR

KLX650A1 1993 USA CALIFORNIA CANADA

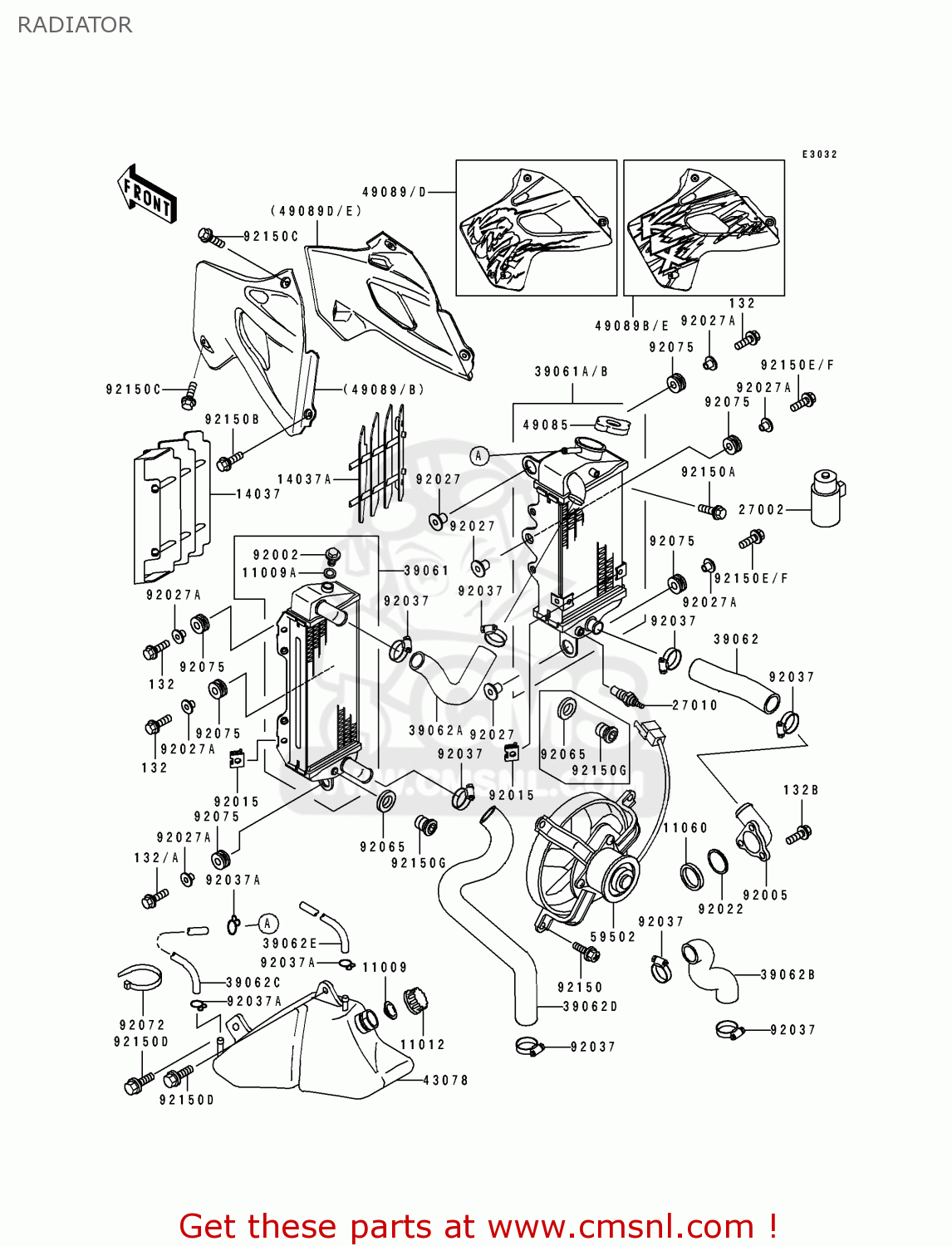

Radiator diagrama KLX650A1 1993 USA CALIFORNIA CANADA

RADIATOR KLX650A1 1993 USA CALIFORNIA CANADA
RADIATOR KLX650A1 1993 USA CALIFORNIA CANADA
los precios están en EUR
ref
parte #
descripción
cantidad
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
110091152
€ 4.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
11060
110601300
ref: 11060
GASKET,THERMOSTAT (NAS)
110601300
€ 4.00
14037
1403711606W
ref: 14037
SCREEN,LH,L.GREEN
1403711606W
€ 21.50
14037A
1403711646W
ref: 14037A
SCREEN,RH,L.GREEN
1403711646W
€ 21.50
39061
390611188
ref: 39061
RADIATOR-ASSY,LH
€ 655.50
39061A
390611189
ref: 39061A
RADIATOR-ASSY,RH
390611189
€ 468.50
39062
390621514
ref: 39062
HOSE-COOLING,HEAD-RAD
390621514
€ 11.00
39062A
390621515
ref: 39062A
HOSE-COOLING,RADIATOR
390621515
€ 13.50
39062B
390621517
ref: 39062B
HOSE-COOLING,PUMP-CYL
390621517
€ 11.00
39062C
390621560
ref: 39062C
HOSE-COOLING,RESERVOI
390621560
€ 12.50
39062D
390621561
ref: 39062D
HOSE-COOLING,RADIATOR
390621561
€ 37.00
39062E
390621570
ref: 39062E
HOSE-COOLING,OVERFLOW
390621570
€ 7.00
43078
430781128
ref: 43078
RESERVOIR
430781128
€ 36.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 22.00
49089
4908951706W
ref: 49089
SHROUD-ENGINE,LH,L.GR
€ 103.00
49089D
4908952096W
ref: 49089D
SHROUD-ENGINE,RH,L.GR
€ 103.00
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
920021682
€ 12.50
92005
920051258
ref: 92005
FITTING
920051258
€ 21.50
92015
920151487
ref: 92015
NUT
920151487
€ 2.50
92022
92022161
ref: 92022
WASHER-THRUST,25MM
92022161
€ 6.50
92027A
92027194
ref: 92027A
COLLAR
92027194
€ 3.00
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
920371589
€ 12.00
92037A
920371712
ref: 92037A
CLAMP
920371712
€ 3.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
92072
920721293
ref: 92072
BAND
920721293
€ 6.00
92075
92075209
ref: 92075
DAMPER RUBBER
92075209
€ 2.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132B
132Y0612
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
92150A
921501339
ref: 92150A
BOLT,6X20
€ 2.50
92150B
921501340
ref: 92150B
BOLT,6X14
921501340
€ 3.00
92150C
921501435
ref: 92150C
BOLT
921501435
€ 2.50
92150D
921501504
ref: 92150D
BOLT
921501504
€ 2.50
92150E
921501507
ref: 92150E
BOLT
921501507
€ 2.50
92150G
921501867
ref: 92150G
BOLT 10 X 10
921501867
€ 3.00
