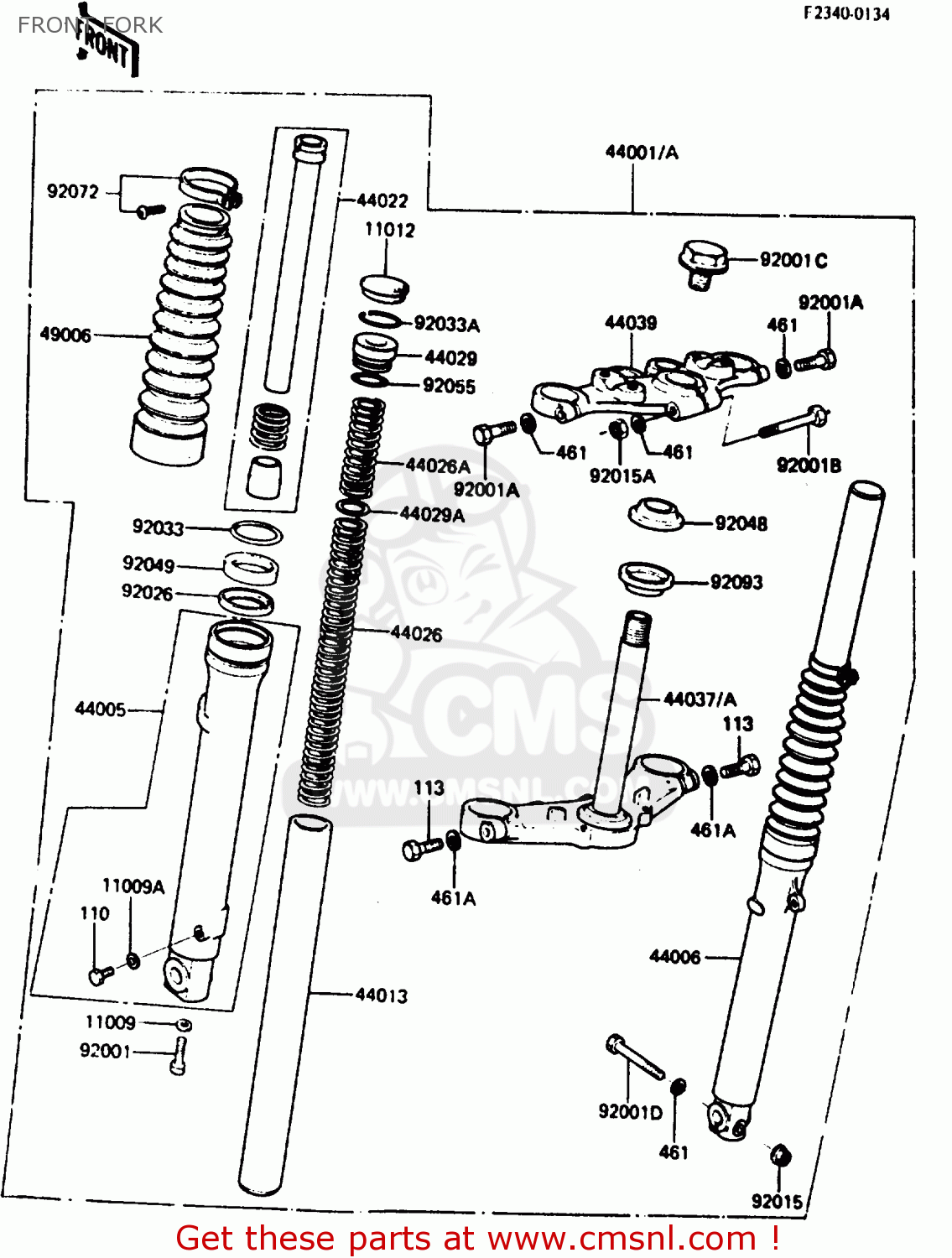

FRONT FORK

ref

parte #

descripción

cantidad

11009

44045051
ref: 11009

GASKET,FORK CYLINDER (NAS)

€ 3.50

11009A

44045052
ref: 11009A

GASKET,DRAIN PLUG (NAS)

€ 5.50

11012

110121124
ref: 11012

CAP,FORK

€ 5.50

44001

4400114266Z
ref: 44001

FORK-FRONT,BLACK

€ 646.00

44005

440051118
ref: 44005

PIPE-LEFT FORK OUTER

€ 146.50

44006

440061118
ref: 44006

PIPE-RIGHT FORK OUTER

€ 146.50

44013

440131069
ref: 44013

PIPE-FORK INNER

€ 95.50

44022

440221065
ref: 44022

CYLINDER-FORK

€ 44.00

44026

440261119
ref: 44026

SPRING-FRONT FORK

€ 23.00

44026A

440261137
ref: 44026A

SPRING-FRONT FORK,UPP

€ 8.00

44029

44029022
ref: 44029

GUIDE, FORK SPRING

€ 7.00

44029A

440291033
ref: 44029A

SEAT-FORK SPRING

€ 6.00

44037

440371077
ref: 44037

HOLDER-FORK UNDER

€ 140.50

44039

440391048
ref: 44039

HOLDER-FORK UPPER

€ 86.00

49006

4900610476Z
ref: 49006

BOOT,FR FORK,BLACK

€ 27.50

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 5.50

92001A

920011739
ref: 92001A

BOLT,8X40

€ 6.50

92001B

920011740
ref: 92001B

BOLT,8X55

€ 5.00

92001C

920011741
ref: 92001C

BOLT,STEERING STEM HD

€ 6.00

92001D

920011744
ref: 92001D

BOLT,8X50

€ 5.50

92015

920151022
ref: 92015

NUT, 8MM

€ 0.50

92015A

920151235
ref: 92015A

NUT,8MM

€ 3.00

92026

920261120
ref: 92026

SPACER,FORK OUTER TUB

€ 7.00

92033

44044020
ref: 92033

CIRCLIP,45MM

€ 8.50

92033A

44044023
ref: 92033A

CIRCLIP

€ 3.00

92048

92047010
ref: 92048

CONE-STERNG BERG LOW

€ 9.00

92049

920491080
ref: 92049

SEAL-OIL FORK OUTER

€ 14.00

92055

44046025
ref: 92055

'O' RING, FORK

€ 4.00

92072

920721038
ref: 92072

BAND,BOOT

€ 8.50

92093

44010027
ref: 92093

SEAL,STEERING STEM

€ 7.00

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

113

113B1035
ref: 113

BOLT-HEX HEAD,10X35

€ 3.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50

todas las asambleas
