Side Covers

KVF700-D1 PRAIRIE700 2005 USA / 4X4

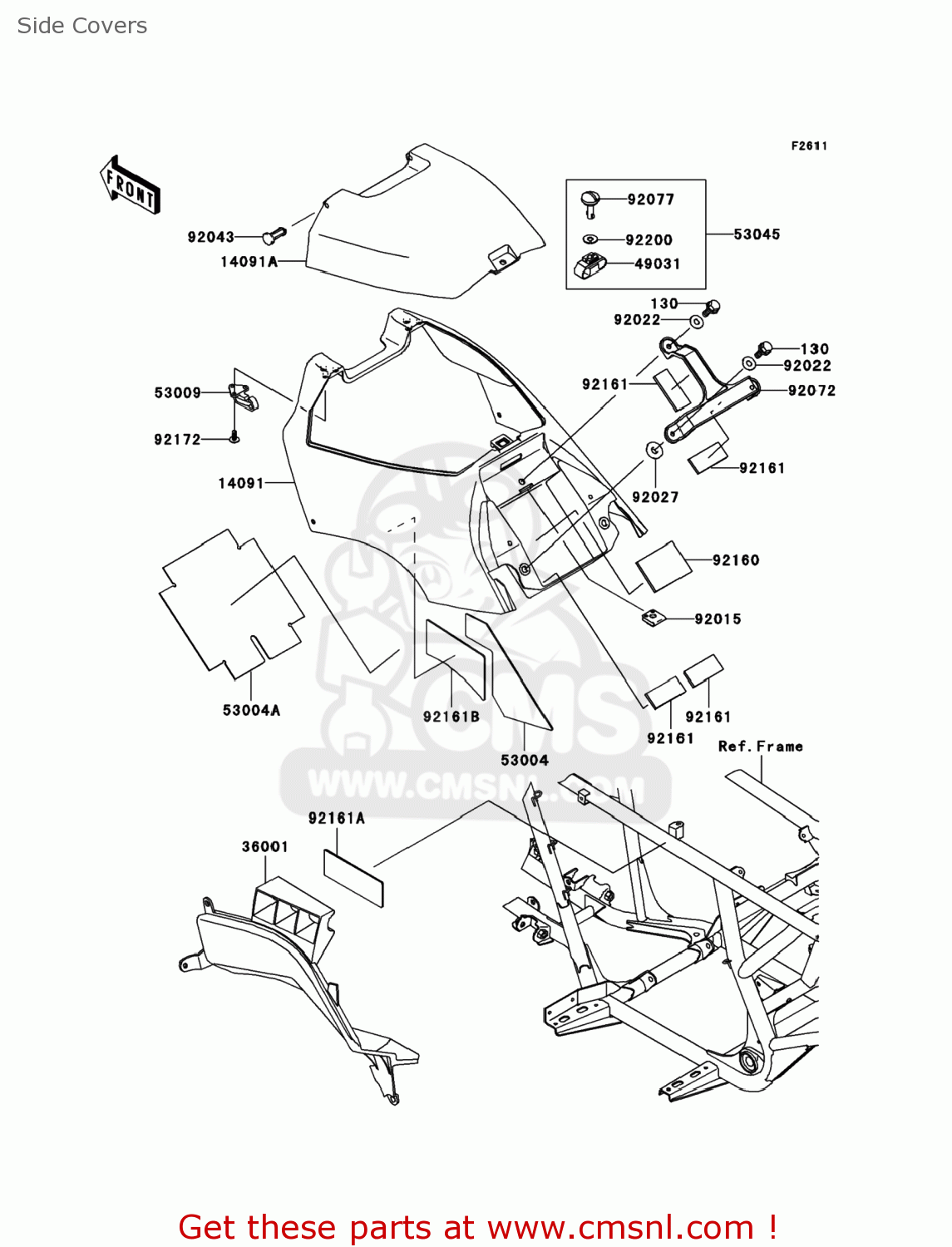

Side covers diagrama KVF700-D1 PRAIRIE700 2005 USA / 4X4

Side Covers KVF700-D1 PRAIRIE700 2005 USA / 4X4
Side Covers KVF700-D1 PRAIRIE700 2005 USA / 4X4
los precios están en EUR
ref
parte #
descripción
cantidad
130
130J0618
ref: 130
BOLT-FLANGED,6X18
130J0618
€ 1.50
14091
140911423290
ref: 14091
COVER,FUEL TANK,L.GRE
€ 27.50
14091A
140911424290
ref: 14091A
COVER,FUEL TANK,UPP,L
€ 36.00
36001
360011647
ref: 36001
COVER-SIDE
€ 30.00
49031
490311060
ref: 49031
LATCH
490311060
€ 4.50
53004
530041148
ref: 53004
MAT,FUEL TANK COVER
€ 13.00
53004A
530041172
ref: 53004A
MAT,BATTERY CASE
€ 23.50
53009
530091110
ref: 53009
HINGE,FUEL TANK COVER
€ 7.50
53045
530451070
ref: 53045
HOOK-ASSY,FUEL TANK C
530451070
€ 8.50
92015
920151678
ref: 92015
NUT
920151678
€ 3.50
92022
920221093
ref: 92022
WASHER,6.5X16X1.0
920221093
€ 1.00
92027
920271964
ref: 92027
COLLAR,L=4.7
920271964
€ 3.00
92043
920431623
ref: 92043
PIN,HINGE
920431623
€ 2.50
92072
920721406
ref: 92072
BAND,BATTERY
€ 6.50
92077
920771129
ref: 92077
KNOB
920771129
€ 3.00
92160
921601897
ref: 92160
DAMPER,BATTERY
921601897
€ 3.50
92161
921611127
ref: 92161
DAMPER,30X70X5
921611127
€ 4.50
92161A
921611201
ref: 92161A
DAMPER,SIDE COVER
921611201
€ 6.50
92161B
921611202
ref: 92161B
DAMPER,FUEL TANK COVE
921611202
€ 9.00
92172
921721061
ref: 92172
SCREW,TAPPING,5X10
921721061
€ 1.00
92200
922001578
ref: 92200
WASHER
922001578
€ 1.50
