AIR FILTER

KLF300-C4 BAYOU4X4 1992 EUROPE UK AS

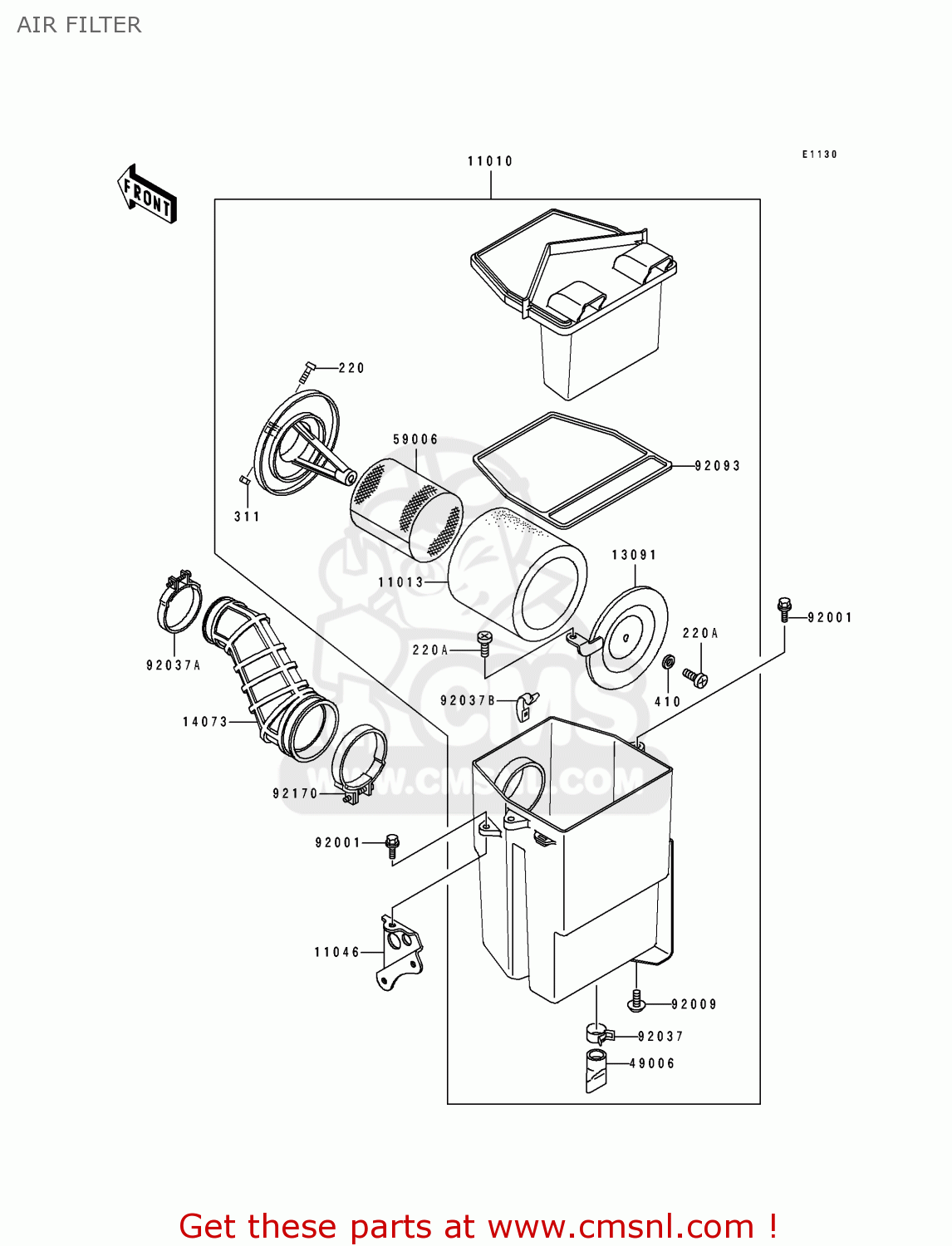

Air filter diagrama KLF300-C4 BAYOU4X4 1992 EUROPE UK AS

AIR FILTER KLF300-C4 BAYOU4X4 1992 EUROPE UK AS
AIR FILTER KLF300-C4 BAYOU4X4 1992 EUROPE UK AS
los precios están en EUR
ref
parte #
descripción
cantidad
220
220B0516
ref: 220
SCREW-PAN-CROS
220B0516
€ 2.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
220B0614
€ 2.00
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
11010
110101365
ref: 11010
FILTER-ASSY-AIR
€ 124.50
11013
110131158
ref: 11013
ELEMENT-AIR FILTER
110131158
€ 7.50
11046
110461042
ref: 11046
BRACKET,REGULATOR
€ 5.50
13091
130911488
ref: 13091
HOLDER,ELEMENT
130911488
€ 9.50
14073
140731359
ref: 14073
DUCT,AIR
140731359
€ 30.50
49006
490061199
ref: 49006
BOOT
490061199
€ 5.50
59006
590061052
ref: 59006
ARRESTER-FLAME
590061052
€ 24.50
92001
920011342
ref: 92001
BOLT,6X18
€ 2.50
92009
920091332
ref: 92009
SCREW,TAPPING,5X10
920091332
€ 2.50
92037
920371460
ref: 92037
CLAMP
920371460
€ 7.00
92037A
920371523
ref: 92037A
CLAMP
920371523
€ 8.00
92037B
920371783
ref: 92037B
CLAMP,AIR FILTER
920371783
€ 4.50
92093
920931241
ref: 92093
SEAL,AIR FILTER
920931241
€ 8.50
92170
921701149
ref: 92170
CLAMP
921701149
€ 7.00
