CYLINDER HEAD COVER (XR125L4,5,6)

XR125L 2005 (5) EUROPEAN DIRECT SALES

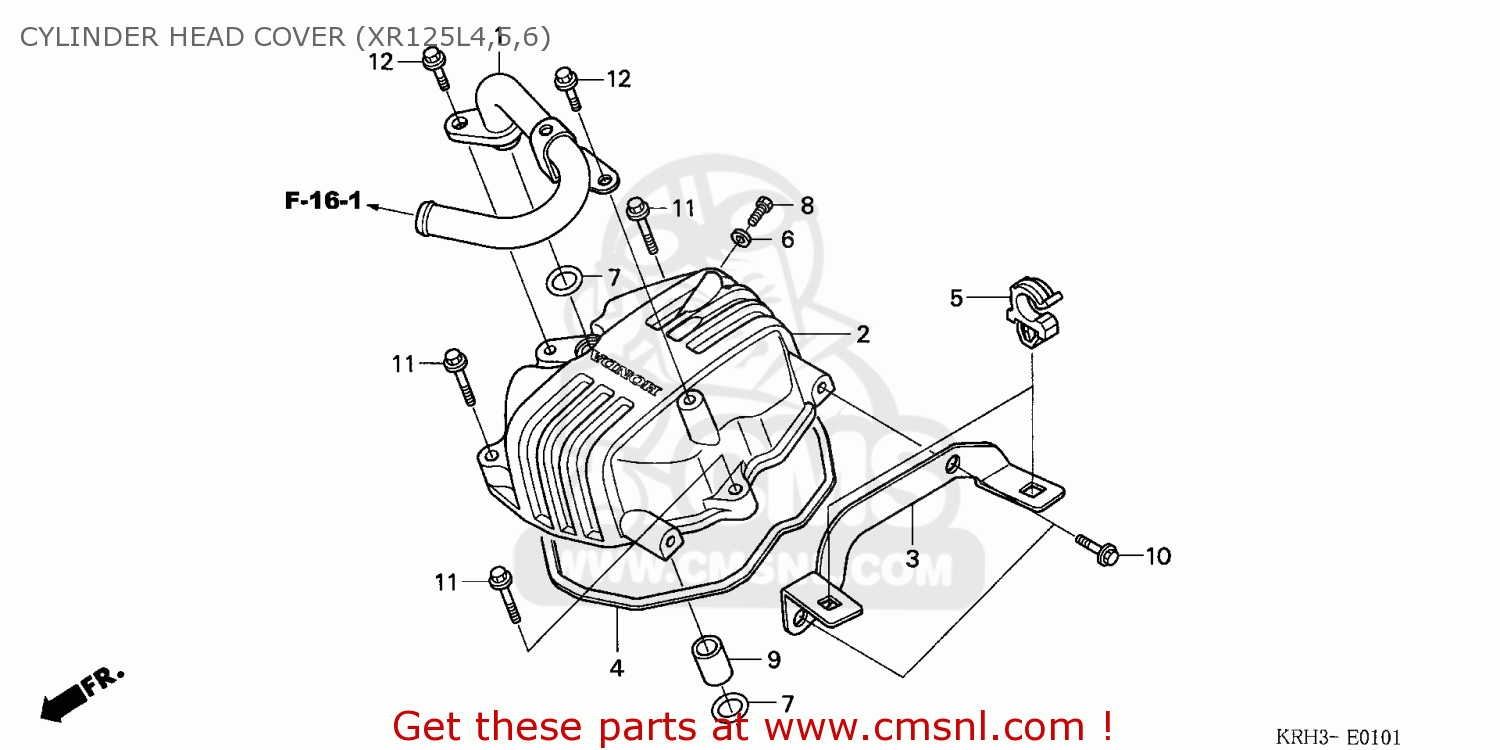

Cylinder head cover (xr125l4,5,6) diagrama XR125L 2005 (5) EUROPEAN DIRECT SALES

CYLINDER HEAD COVER (XR125L4,5,6) XR125L 2005 (5) EUROPEAN DIRECT SALES
CYLINDER HEAD COVER (XR125L4,5,6) XR125L 2005 (5) EUROPEAN DIRECT SALES
los precios están en EUR
ref
parte #
descripción
cantidad
1
11105KRHD20
ref: 1
PIPE COMP,AIR SUC
11105KRHD20
€ 49.00
2
12311KRHD20
ref: 2
COVER,CYLN HEAD
€ 33.50
3
12315KRHD20
ref: 3
PLATE,PB TUBE CLA
€ 32.00
4
12391KRHD20
ref: 4
PACKING,HEAD COVE (NAS)
12391KRHD20
€ 51.00
5
16731ZE2003
ref: 5
CLIP TUBE
€ 3.50
6
90441028010
ref: 6
WASHER, SEALING
90441028010
€ 2.00
7
91305PE2003
ref: 7
O-RING 9.8X1.9
91305PE2003
€ 3.50
8
92101060120A
ref: 8
BOLT,HEX.,6X12
92101060120A
€ 1.00
9
90703KRM840
ref: 9
DOWEL PIN,10X12
90703KRM840
€ 7.50
10
90032GHR660
ref: 10
BOLT,FLANGE 6X16
€ 1.50
11
957010602800
ref: 11
BOLT,FLANGE,6X28
957010602800
€ 1.50
12
960010601600
ref: 12
BOLT,FLANGE,SH,6X16
960010601600
€ 1.00
