HEADLIGHT

ST1100A 1992 (N) CALIFORNIA / ABS TCS

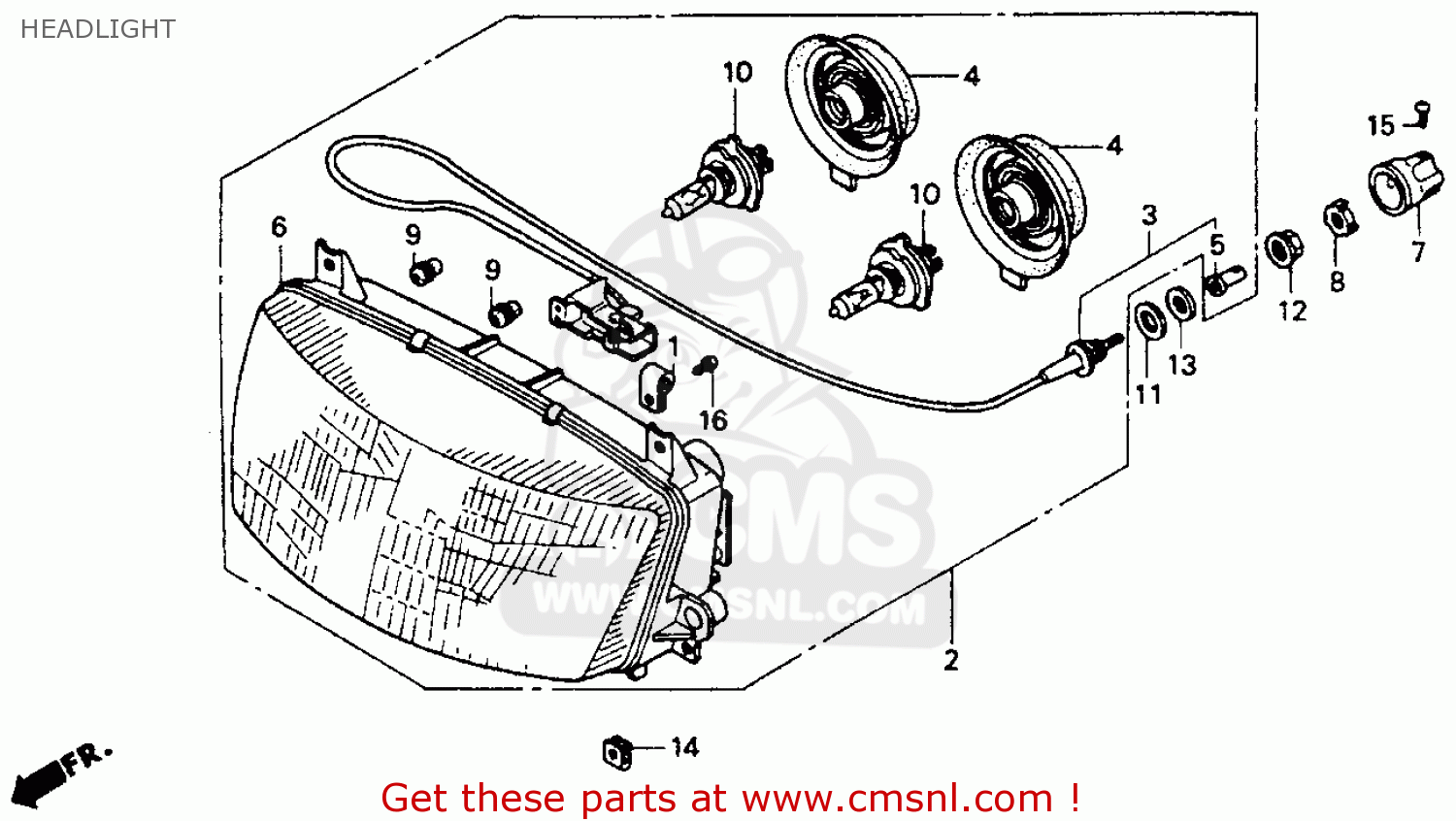

Headlight diagrama ST1100A 1992 (N) CALIFORNIA / ABS TCS

HEADLIGHT ST1100A 1992 (N) CALIFORNIA / ABS TCS
HEADLIGHT ST1100A 1992 (N) CALIFORNIA / ABS TCS
los precios están en EUR
ref
parte #
descripción
cantidad
1
32920MT3003
ref: 1
AC
CLAMP
32920MT3003
€ 3.50
2
33100MT3671
ref: 2
AC
HEADLIGHT ASSY.(1
€ 442.00
3
33111MT3003
ref: 3
AC
CABLE COMP.
33111MT3003
€ 40.50
4
33112MT3003
ref: 4
AC
COVER,RUBBER
33112MT3003
€ 12.50
5
33117MN5003
ref: 5
AC
NUT BEAM ADJUST
33117MN5003
€ 2.50
6
33120MT3671
ref: 6
AC
HEADLIGHT UNIT
€ 354.50
7
33156MT3003
ref: 7
AC
KN0B BEAM ADJUST
33156MT3003
€ 14.00
8
33160MT3000
ref: 8
AC
WASHER SET
33160MT3000
€ 7.50
9
33753MT3003
ref: 9
AC
BUSH,RUBBER
33753MT3003
€ 2.50
10
34901MS2671
ref: 10
AC
BULB,HEADLIGHT (1
34901MS2671
€ 41.00
10
34901MS2672
ref: 10
AC
BULB,HEAD LIGHT (
34901MS2672
€ 41.00
11
90150MN5003
ref: 11
AC
WASHER,SPECIAL
90150MN5003
€ 3.00
12
90153MN5003
ref: 12
AC
NUT,SPECIAL 16MM
90153MN5003
€ 2.50
13
90154MN5003
ref: 13
AC
WASHER,SPECIAL
90154MN5003
€ 2.50
14
90312MT3000
ref: 14
AC
NUT,CLIP,5MM
90312MT3000
€ 2.50
15
90417MN5003
ref: 15
AC
SCREW,TAPPING 4MM
90417MN5003
€ 1.50
16
9390134320
ref: 16
AC
SCREW,TAP.,4X12
9390134320
€ 0.50
