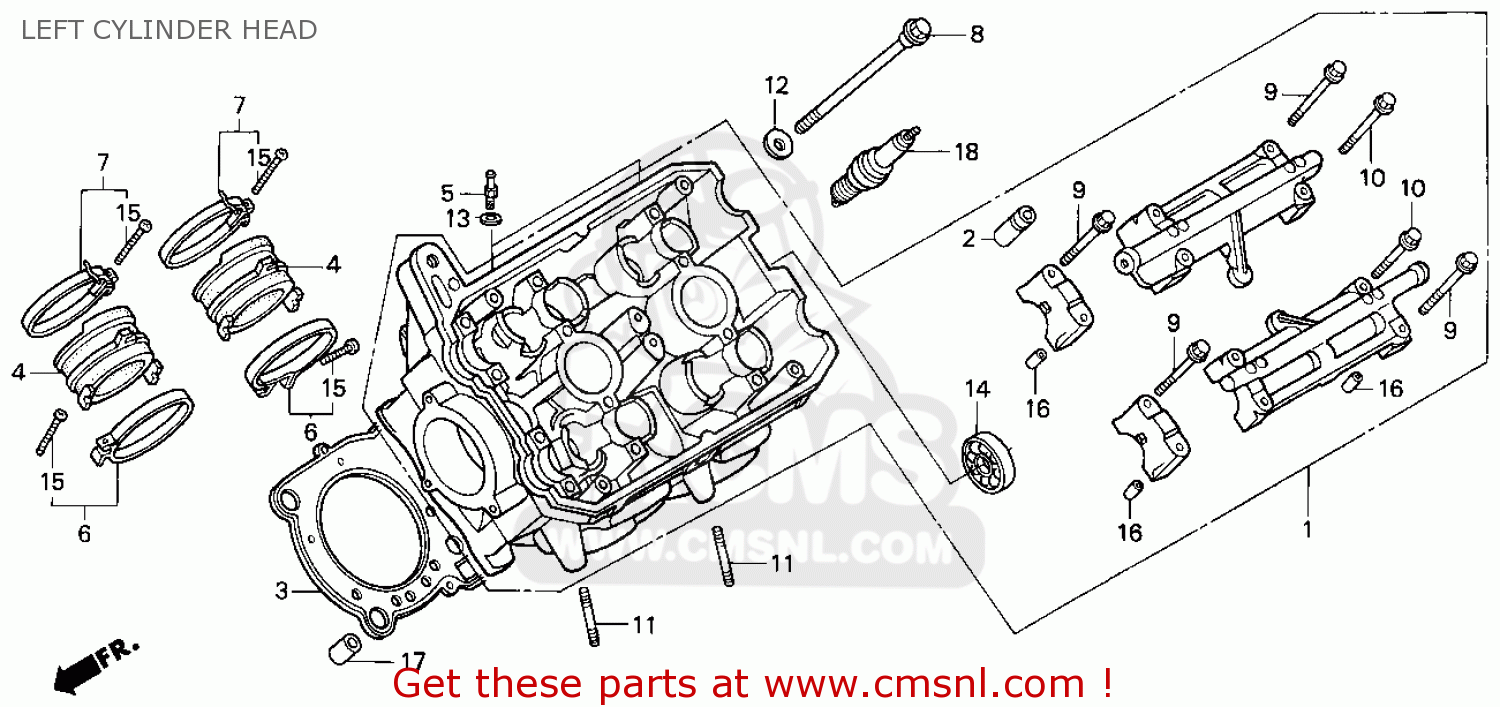

LEFT CYLINDER HEAD

ref

parte #

descripción

cantidad

1

12020MT3731
ref: 1

HEAD ASSY.,L.CYLI

€ 1,089.00

2

12204MT4305
ref: 2

GUIDE,VALVE

€ 21.50

3

12251MT3004
ref: 3

GASKET,CYLN HEAD (NAS)

€ 55.50

4

16211MT3000
ref: 4

INSULATOR,CARB

€ 16.50

5

16214MB0000
ref: 5

JOINT,BOOST

€ 4.50

6

16219ML7690
ref: 6

BAND,INSULATOR

€ 7.50

7

16219MT3000
ref: 7

BAND,INSULATOR

€ 8.50

8

90003MT3003
ref: 8

BOLT,FLANGE,10X87

€ 7.50

9

90017MA6000
ref: 9

BOLT,FLG.,6X45.5

€ 3.00

10

90019MA6000
ref: 10

BOLT,FLG.,6X39.5

€ 3.00

11

90035MM5000
ref: 11

BOLT STUD 8X24

€ 6.50

12

90441MT3000
ref: 12

WASHER,10MM

€ 7.50

13

90452323000
ref: 13

WASHER 5MM

€ 2.00

14

91007MT3000
ref: 14

BRG,BALL RADIAL 6

€ 12.50

15

93500050180G
ref: 15

SCREW,PAN 5X18

€ 1.00

17

9430112200
ref: 17

DOWEL,PIN,12X20

€ 2.00

18

9805958916
ref: 18

PLUG,SPARK(CR8EH9

€ 9.50

18

9805958926
ref: 18

PLUG,SPARK(U24FER

€ 19.00

18

9805959910
ref: 18

SPARK PLUG,C9EH-9

€ 16.00

18

9805959910
ref: 18

SPARK PLUG,C9EH-9

€ 16.00

18

9805959916
ref: 18

PLUG,SPARK(CR9EH9

€ 9.50

18

9805959916
ref: 18

PLUG,SPARK(CR9EH9

€ 9.50

18

9805959926
ref: 18

PLUG,SPARK(U27FER

€ 19.00

18

9805959926
ref: 18

PLUG,SPARK(U27FER

€ 19.00
