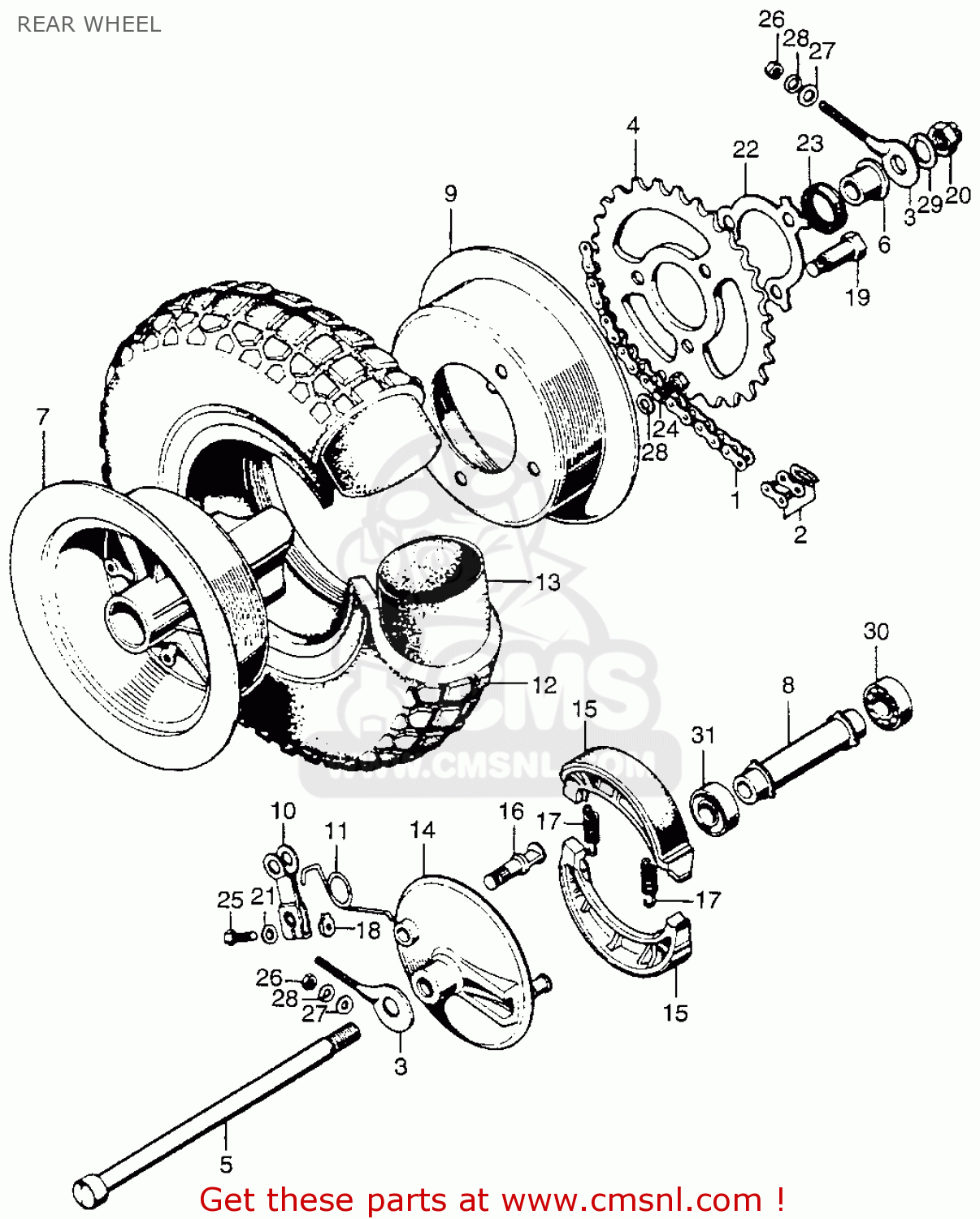

REAR WHEEL

ref

parte #

descripción

cantidad

1

405W3165505
ref: 1

CHAIN,DRIVE

€ 27.50

1

40530114003
ref: 1

CHAIN,DRIVE DID42

€ 27.50

1

40530130614
ref: 1

CHAIN,DRIVE

€ 27.50

2

40531001000
ref: 2

JOINT,DRIVE CHAIN

€ 3.50

2

40531045671
ref: 2

JOINT,CHAIN

€ 3.50

2

40531098003
ref: 2

JOINT,DRIVE CHAIN

€ 3.50

2

40531120003
ref: 2

JOINT,DRIVE CHAIN

€ 3.50

2

40531150005
ref: 2

JOINT,DRIVE CHAIN

€ 3.50

2

40531153003
ref: 2

JOINT,DRIVE CHAIN

€ 3.50

3

40543063000
ref: 3

ADJUSTER,CHAIN

€ 4.50

3

9501410010
ref: 3

ADJUSTER,SR.CHAIN

€ 4.50

4

41201114010
ref: 4

SPROKET,DRIVEN

€ 61.50

5

42301045010
ref: 5

AXLE,REAR,WHEEL

€ 43.50

5

44301074000
ref: 5

AXLE,FRONT WHEEL

€ 43.50

6

42311045000
ref: 6

COLLAR,L,REARSIDE

€ 4.50

7

42601114010A
ref: 7

HUB,REAR WHEEL

€ 345.50

8

42620045020
ref: 8

COLLAR,REARDISTAN

€ 7.00

8

42620165405
ref: 8

COLLAR RR,AXLE DI

€ 7.00

9

42701114000A
ref: 9

RIM,WHEEL

€ 32.50

10

43410045670
ref: 10

ARM,REAR,BRAKE

€ 19.00

10

45410045405
ref: 10

ARM FR,BRAKE

€ 19.00

11

43412045670
ref: 11

SPRING,REARARM

€ 2.50

12

44711114006
ref: 12

TIRE 400-52PTW

€ 34.00

13

44712114003
ref: 13

TUBE (400X5)

€ 22.00

14

45100045020
ref: 14

PANEL,FRONTBRAKE

€ 69.50

14

45100045020ZA
ref: 14

PANEL,BRK.*CLEAR*

€ 69.50

15

45120001010
ref: 15

SHOE BRAKE (MCA)

€ 16.00

16

45131045000
ref: 16

CAM FRONT,BRAKE

€ 35.50

17

45133028000
ref: 17

SPRING BRAKE SHOE

€ 2.00

18

45436001000
ref: 18

NUT, BRAKE ARM

€ 2.50

19

90170045000
ref: 19

BOLT,FINALSPROCKT

€ 5.50

20

90353045000
ref: 20

NUT,SELF LOCK

€ 4.00

21

90525001000
ref: 21

WASHER, BRAKE ARM

€ 2.50

22

90529045671
ref: 22

WASHER,8MM

€ 1.50

22

9410821000
ref: 22

WASHER,TONGUED

€ 1.50

23

91251045005
ref: 23

OIL SEAL,18X32X8

€ 4.00

24

9200006016
ref: 24

BOLT,HEX., 6X16

€ 0.50

24

92000060160A
ref: 24

BOLT,HEX 6X16

€ 0.50

24

92000060161A
ref: 24

BOLT,HEX.,6X16

€ 0.50

24

92100060160A
ref: 24

BOLT,HEX.,6X16

€ 0.50

24

92101060160A
ref: 24

BOLT,HEX.,6X16

€ 0.50

24

92200060160A
ref: 24

BOLT,HEX,6X16

€ 0.50

25

9200006025
ref: 25

BOLT,HEX 6X25

€ 1.00

25

92101060250A
ref: 25

BOLT,HEX,6X25

€ 1.00

26

90310KA3711
ref: 26

NUT HEX 6MM

€ 1.00

26

94000060000S
ref: 26

NUT,HEX.,6MM

€ 1.00

26

9400106000
ref: 26

NUT,HEX 6MM

€ 1.00

26

94001060000S
ref: 26

NUT,HEX 6MM

€ 1.00

26

94001060080S
ref: 26

NUT,HEX.,6MM

€ 1.00

26

94001062000S
ref: 26

NUT,HEX.,6MM

€ 1.00

26

9403006000
ref: 26

NUT,HEX 6MM

€ 1.00

27

9410106000
ref: 27

WASHER,PLAIN, 6MM

€ 0.50

27

9410106080
ref: 27

WASHER PLAIN 6MM

€ 1.00

28

9411106000
ref: 28

WASHER,SPRING,6MM

€ 1.00

29

9411112000
ref: 29

WASHER,SPG 12MM

€ 1.00

30

9610062010
ref: 30

B/BRG RAD N/COM

€ 11.50

30

961006201000
ref: 30

B/BRG RAD N/COM

€ 11.50

31

9614062010
ref: 31

B/BRG RAD N/COM

€ 15.50

31

961406201000
ref: 31

B/BRG RAD N/COM

€ 15.50
